LG LK72B Manual

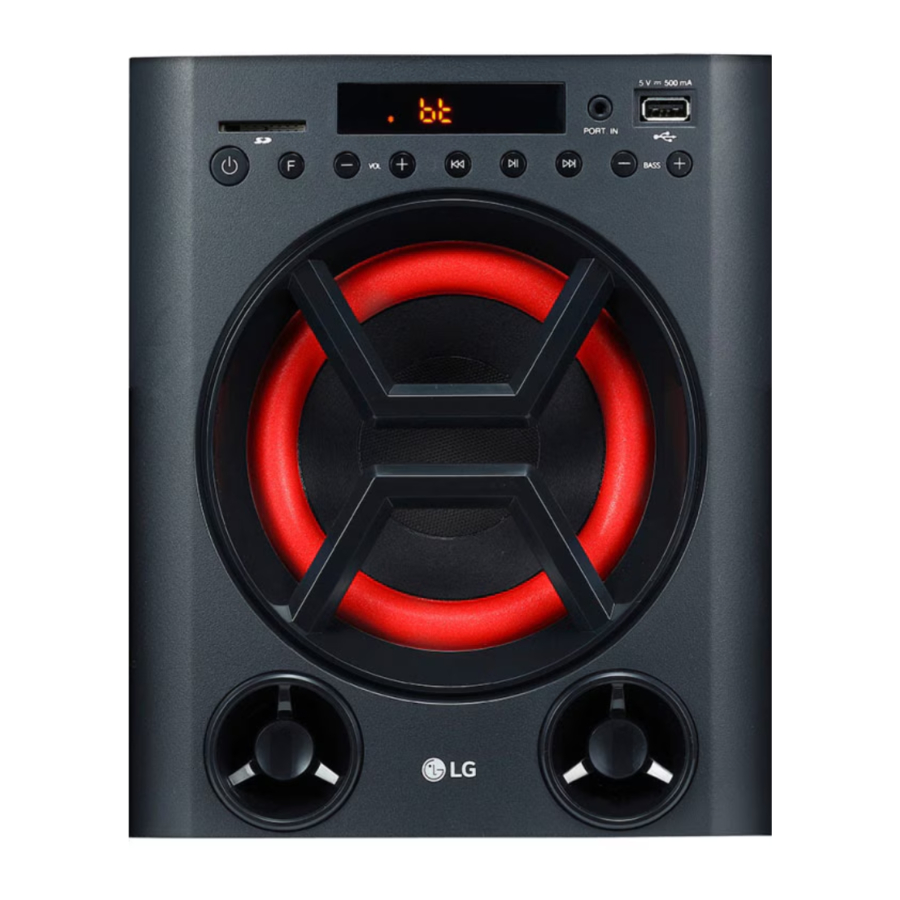

Front Panel

1. Remote sensor
2. SD card slot
   You can play sound files by connecting the SD card.
3. (Standby)
   Turns the power on or off.
   F (Function) Selects the function and input source.
4. VOL (Volume) -/+
   Adjusts speaker volume.
   (Skip/Search)

• Skips backward or forwards.
• Searches for a section within a file.
  (Play/Pause) Starts or pauses playback.
  BASS -/+
  Adjusts bass level.

5. USB port
   You can play sound files by connecting the USB device.
   PORT. (Portable) IN
   Connect a portable device.
6. Display window

Speaker Connection

Additional information

LED Display table
LED displays and descriptions are as belows.

LED Display	Description
	HELLO
	BYE
	USB
	SD
	AUX
	PORTABLE
	BT
	READ
	PAUSE
	ONE
	ALL
	RANDOM
	NO USB
	NO SD
	NO SONG
	NOT SUPPORT

Specifications

Power Requirements	Refer to the main label on the unit.
Power Consumption	Refer to the main label on the unit.
Dimensions (W x H x D)	Approx. 196.0 mm x 239.0 mm x 205.0 mm
Bus Power Supply (USB)	5 V 500 mA
Amplifier (Total RMS output power)	40 W RMS

Design and specifications are subject to change without notice.

Replacement of battery
