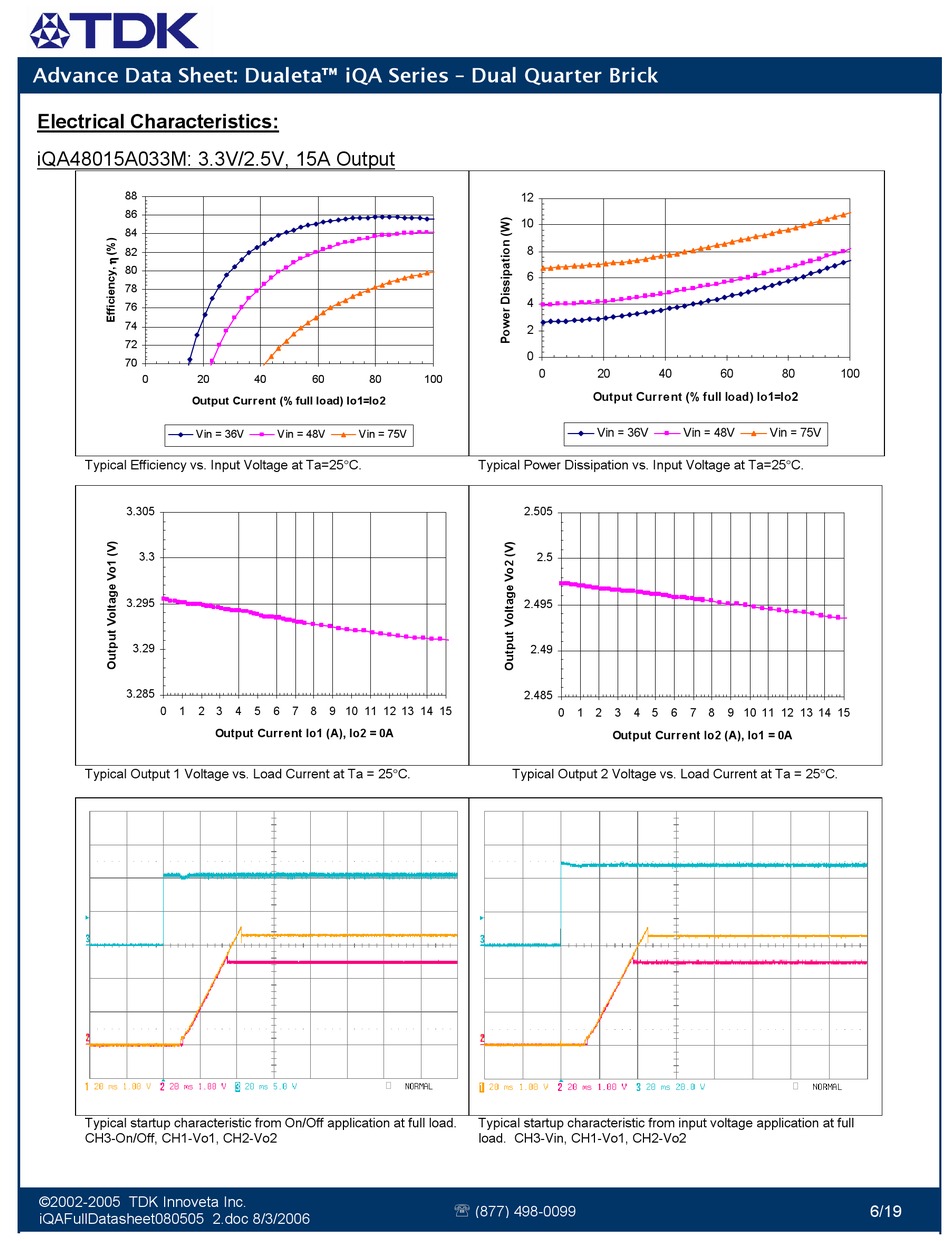

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

Electrical Characteristics:

iQA48015A033M: 3.3V/2.5V, 15A Output
88
86
84
82
80
78
76
74
72
70
0 20
Output Current (% full load) Io1=Io2
Vin = 36V
Typical Efficiency vs. Input Voltage at Ta=25°C.
3.305
3.3
3.295
3.29
3.285
0 1 2 3
Output Current Io1 (A), Io2 = 0A
Typical Output 1 Voltage vs. Load Current at Ta = 25°C.
Typical startup characteristic from On/Off application at full load.
CH3-On/Off, CH1-Vo1, CH2-Vo2
