TDK Dualeta iQA Series Datasheet page 13

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

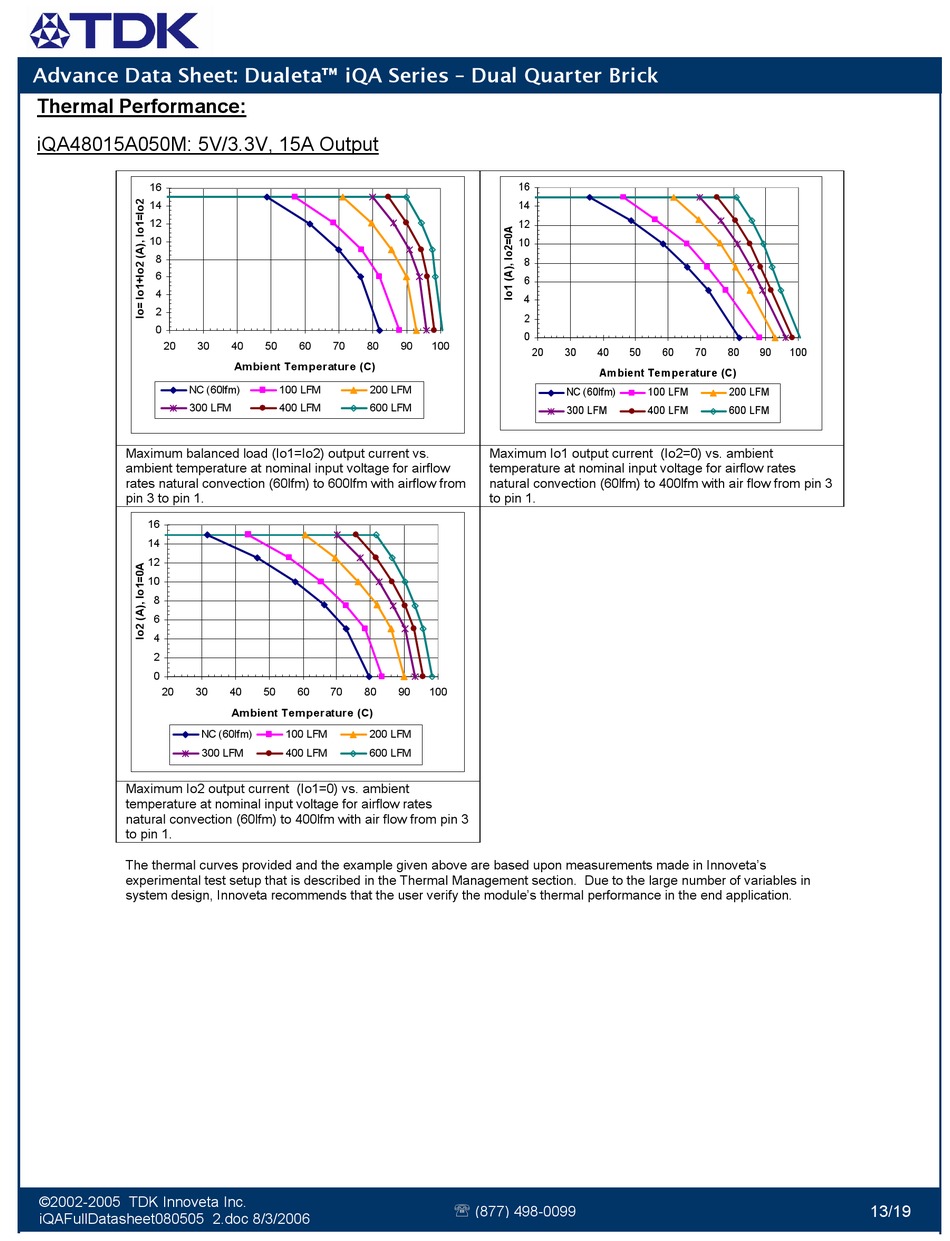

Thermal Performance:
iQA48015A050M: 5V/3.3V, 15A Output
16
14
12
10
8
6
4
2
0
20 30
NC (60lfm)
300 LFM
Maximum balanced load (Io1=Io2) output current vs.
ambient temperature at nominal input voltage for airflow
rates natural convection (60lfm) to 600lfm with airflow from
pin 3 to pin 1.
16
14
12
10
8
6
4
2
0
20 30
NC (60lfm)
300 LFM
Maximum Io2 output current (Io1=0) vs. ambient
temperature at nominal input voltage for airflow rates
natural convection (60lfm) to 400lfm with air flow from pin 3
to pin 1.
The thermal curves provided and the example given above are based upon measurements made in Innoveta's
experimental test setup that is described in the Thermal Management section. Due to the large number of variables in
system design, Innoveta recommends that the user verify the module's thermal performance in the end application.
©2002-2005 TDK Innoveta Inc.
iQAFullDatasheet080505 2.doc 8/3/2006
40 50 60 70 80 90
Am bient Tem perature (C)
100 LFM 200 LFM
400 LFM 600 LFM
40 50 60 70 80 90
Am bient Tem perature (C)
100 LFM 200 LFM
400 LFM 600 LFM
16
14
12
10
8
6
4
2
0
100
20 30 40
Am bient Tem perature (C)
NC (60lfm)
300 LFM
Maximum Io1 output current (Io2=0) vs. ambient
temperature at nominal input voltage for airflow rates
natural convection (60lfm) to 400lfm with air flow from pin 3
to pin 1.
100
℡ (877) 498-0099
50 60 70 80 90 100
100 LFM 200 LFM
400 LFM 600 LFM
13/19
