Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

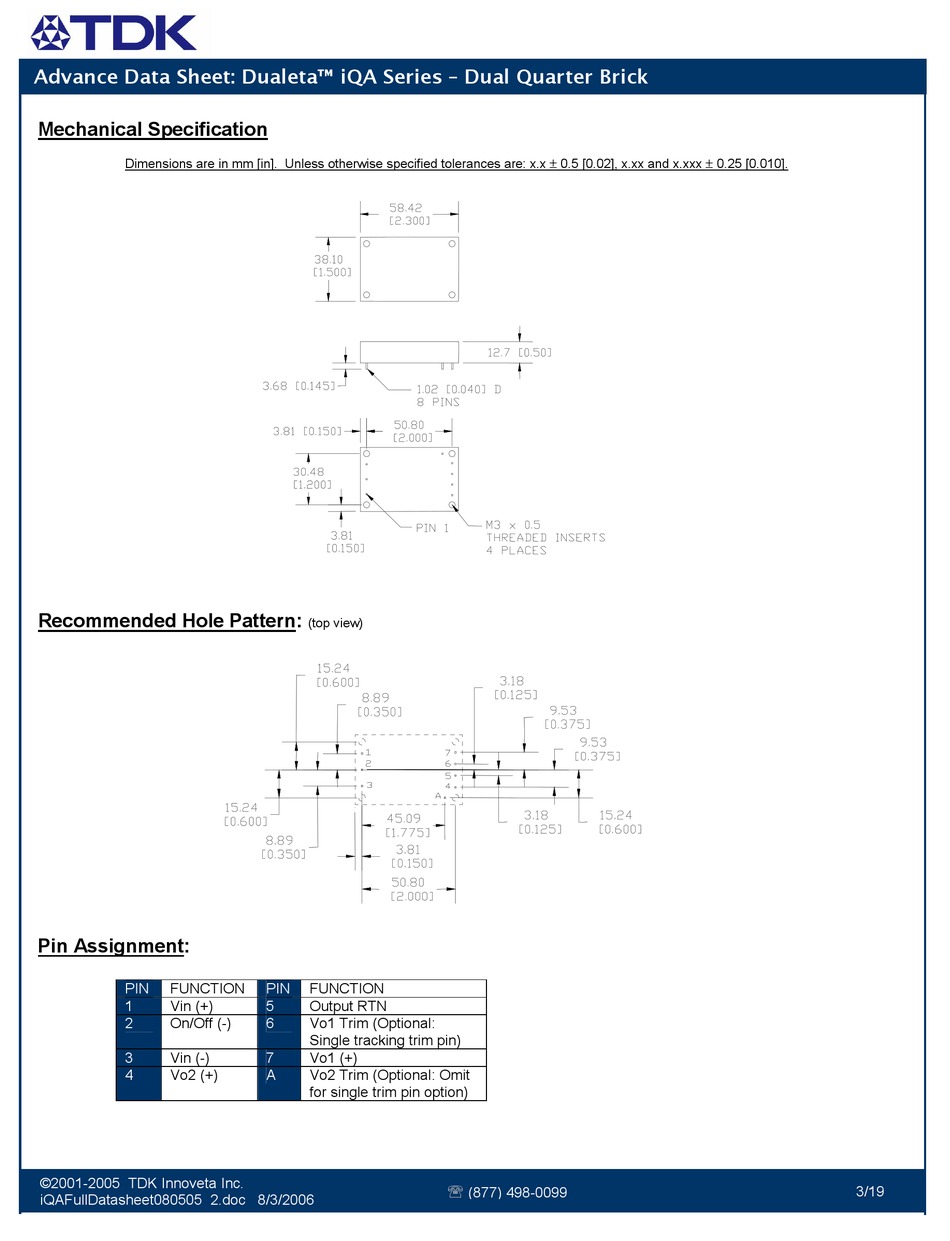

Mechanical Specification
Dimensions are in mm [in]. Unless otherwise specified tolerances are: x.x ± 0.5 [0.02], x.xx and x.xxx ± 0.25 [0.010].
Recommended Hole Pattern:
Pin Assignment:
PIN
FUNCTION
1
Vin (+)
2
On/Off (-)
3
Vin (-)
4
Vo2 (+)
©2001-2005 TDK Innoveta Inc.
iQAFullDatasheet080505 2.doc 8/3/2006
(top view)
PIN
FUNCTION
5
Output RTN
6
Vo1 Trim (Optional:
Single tracking trim pin)
7
Vo1 (+)
A
Vo2 Trim (Optional: Omit
for single trim pin option)
℡
(877) 498-0099
3/19
