PXI-63980

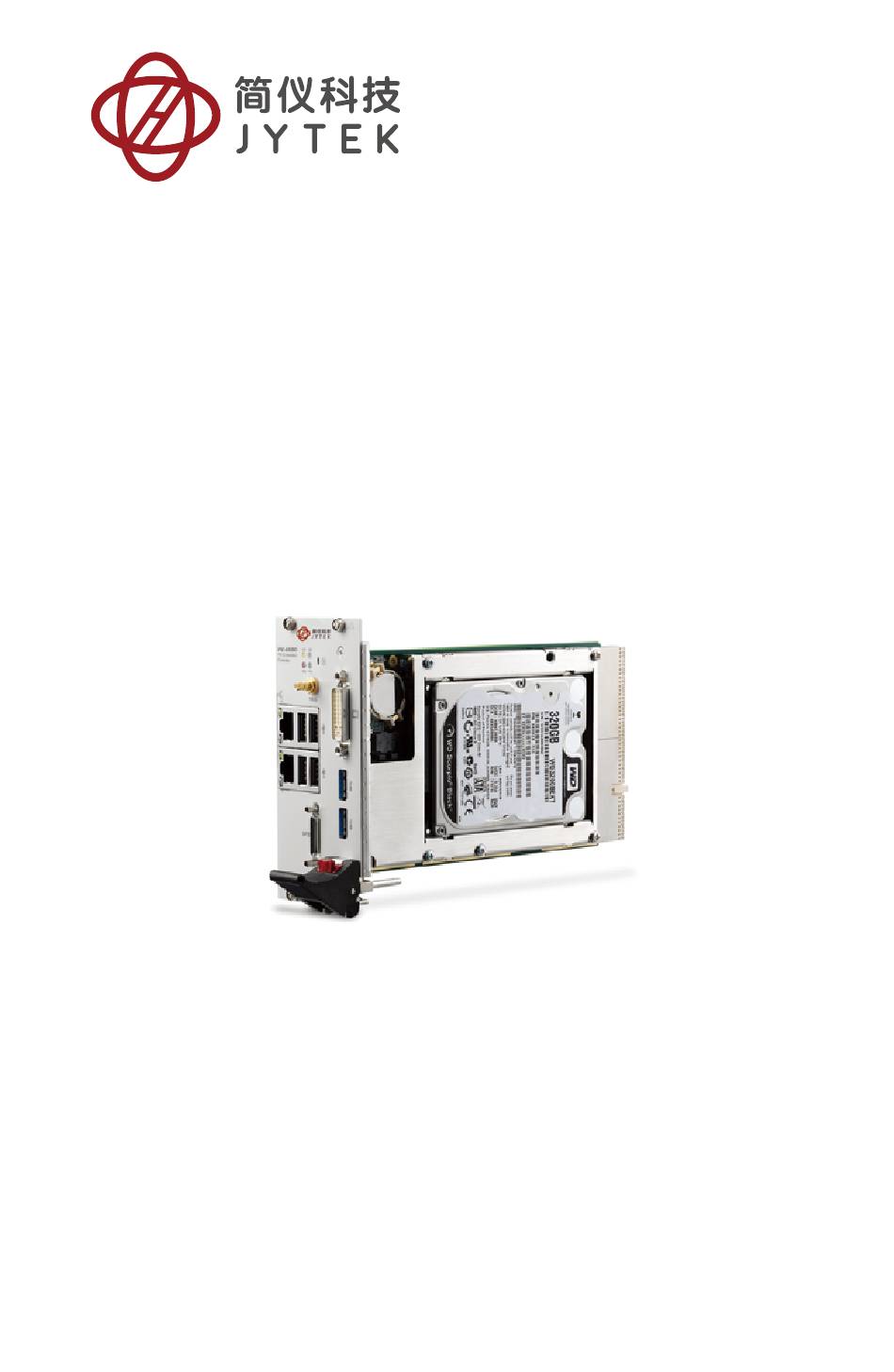

PXI Embedded Controller
User's Manual
Manual Rev.: 1.00
Revision Date: JUL.16, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXI-63980 and is the answer not in the manual?

Questions and answers

Summary of Contents for JYTEK PXI-63980

  • Page 1 PXI-63980 PXI Embedded Controller User’s Manual Manual Rev.: 1.00 Revision Date: JUL.16, 2016...
  • Page 2: Getting Service

    Getting Service Contact us should you require any service or assistance. SHANGHAI JYTEK Co., Ltd. Web site: http://www.jytek.com Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area, Shanghai, 201203 China Tel: +86-21-5047-5899 Fax: +86-21-5047-5899 Email: service@jytek.com Additional information, aids, and tips that help users perform tasks Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task.
  • Page 3: Table Of Contents

    2�3�9 USB 3�0 Ports �������������������������������������������������������������������������13 2.3.10 Onboard Connections and Settings ���������������������������������������13 2.3.11 Installation Environment ������������������������������������������������������14 2�3�12 Installing the PXI-63980 ��������������������������������������������������������15 2�3�13 Replacing the Hard Drive or Solid State Drive �����������������������15 2.3.14 Replacing the Battery Backup �����������������������������������������������16 2�3�15 Clearing CMOS ���������������������������������������������������������������������16 2.3.16 Initiating Backup BIOS Flash �������������������������������������������������17...
  • Page 4 4.6 Security Setup �����������������������������������������������������������������������������������25 4�7 Save & Exit Setup ������������������������������������������������������������������������������26 Appendix A - PXI Trigger I/O Function Reference����������������������������������������������27 A.1 Data Types ����������������������������������������������������������������������������������������27 A.2 Function Library ��������������������������������������������������������������������������������28 A�2�1 TRIG_Init �������������������������������������������������������������������������������28 A�2�2 TRIG_Close ����������������������������������������������������������������������������28 A.2.3 TRIG_SetSoftTrg ���������������������������������������������������������������������29 A�2�4 TRIG_Trigger_Route ���������������������������������������������������������������29 A�2�5 TRIG_Trigger_Clear ����������������������������������������������������������������31 A.2.6 TRIG_GetSoftTrg ��������������������������������������������������������������������31 A.2.7 TRIG_Trigger_Route_Query����������������������������������������������������32 A�2�8 TRIG_GetDriverRevision ���������������������������������������������������������33...
  • Page 5 Table 2-2: GPIB Pin Description �����������������������������������������������������������������������11 Table 2-3: LED Indicator Legend ����������������������������������������������������������������������11 Table 2-4: USB 2.0 Port Pin Assignment �����������������������������������������������������������12 Table 2-5: PXI-63980 Ethernet Port Pin Assignments ���������������������������������������13 Table 4-1: BIOS Hot Key Functions �������������������������������������������������������������������23 Table 4-2: BIOS Main Setup Menu �������������������������������������������������������������������24 Table 4-3: BIOS Advanced Setup Menu �����������������������������������������������������������24...
  • Page 6 List of Figures Figure 1-1: PXI-63980 Functional Block Diagram ����������������������������������������������� 3 Figure 2-1: PXI-63980 Faceplate ������������������������������������������������������������������������ 7 Figure 2-2: PXI Trigger SMB Jack������������������������������������������������������������������������ 9 Figure 2-3: PXI-63980 LED Indicators ����������������������������������������������������������������11 Figure 2-4: PXI-63980 Onboard Configuration ��������������������������������������������������14 Figure 4-1: BIOS Setup Navigation ��������������������������������������������������������������������23...
  • Page 7: Introduction

    The PXI-63980 provides ample interface choices, including GPIB, USB2.0, and USB3.0, for connecting and controlling instruments. The PXI-63980 also provides dual Gigabit Ethernet ports, one for LAN connection and the other for controlling LXI instruments. With flexible instrument control interfaces and...
  • Page 8: 1�1 Features

    1�1 Features • PXI™-1 PXI Hardware Specification Rev.2.2 complaint • Intel® Core™ i7-2715QE 2.1 GHz processor for maximum computing power, 3.0GHz maximum in single-core, Turbo Boost mode. • Dual Channel DDR3 SODIMM • Up to 16 GB 1333 MHz • Maximum system throughput 132 MB/s •...
  • Page 9: Specifications

    • Support for +1.5 V DDR3, 1066/1333 MHz RAM up to 16 GB total • Support for non-ECC unbuffered memory The externally accessible SODIMM socket can accept replacement DDR3 DRAM DIMM modules. PXI-63980 specifications and stability guarantees are only supported when JYTEK- provided DDR3 DRAM DIMM modules are used.
  • Page 10 • VGA output for analog CRT route to DVI-I connector on the faceplate, supporting up to 2048 x 1536 bpp at 75Hz • DVI-I connector for dual digital and analog video signal output via the included JYTEK Y-cable Hard Drive Built-in 2.5”...
  • Page 11 Environmental & Shock and Vibration values are only guaranteed with use of an JTTEK-provided SSD/HDD Certification Electromagnetic compatibility: • EMC/EMI: CE, FCC Class A • CE Compliance EN 61326-1 The PXI-63980 meets the essential requirements of applicable European Directives. Power Requirements Voltage Rail +3�3V +12V Total (W) Maximum power 115.74...
  • Page 12: Getting Started

    • PXI-63980 Quick Start Guide • JYTEK All-In-One USB Flash driver If any of these items are missing or damaged, contact JYTEK or the dealer from whom you purchased the product. Save the shipping materials and carton in case you want to ship or store the product in the future.
  • Page 13: Hardware Instructions

    2. Proceed with the OS installation as directed and be sureto select appropriate device types if prompted. Refer to the appropriate hardware manuals for specific device types and compatibility modes of JYTEK PXI products. 3. When installation is complete, reboot the system and setthe boot device order in the SETUP boot menu accordingly.
  • Page 14 PXI Trigger Connector LED indicators (SMB jack) DVI-I Connector 4X Type-A USB 2.0 connectors GPIB Connector 2X Gigabit Ethernet (Micro D-Sub 25P) Reset Button 2X USB 3.0...
  • Page 15: 2�3�2 Pxi Trigger Connector

    Trigger I/O Function Reference for further information. 2�3�3 DVI-I Connector The DVI-I connector connects the PXI-63980 to a monitor, of which both digital (DVI) and analog (VGA) are supported. If connecting to an analog (VGA) monitor, the included Y-cable must be installed on the DVI-I connector.
  • Page 16: 2�3�4 Gpib Connector

    Clock- Table 2-1: DVI-I Pin Assignment 2�3�4 GPIB Connector The GPIB connector on PXI-63980 is a micro D-sub 25P connector, controlling external bench-top instruments. Connection to other instruments requires the ACL-IEEE488-MD1-A cable. The onboard GPIB controller provides: • Full compatibility with IEEE 488 standard •...
  • Page 17: Reset Button

    2�3�5 Reset Button The reset button, activated by insertion of any pin-like implement, executes a hard reset for the PXI-63980. 2�3�6 LED Indicators Four LED indicators on the faceplate indicate operational status of the PXI-63980, as follows. Status Watchdog Power...
  • Page 18: 2�3�7 Usb 2�0 Ports

    If the system fails to respond properly, please contact JYTEK for assistance. 2�3�7 USB 2�0 Ports The PXI-63980 provides four USB 2.0 ports via USB Type A connectors on the faceplate, all compatible with hi-speed, full-speed and low-speed USB devices. Supported boot devices include USB flash drive, USB floppy, USB CD-ROM, and others, with boot priority and device settings configurable configured in BIOS.
  • Page 19: 2�3�8 Gigabit Ethernet Ports

    • KVM switches connected to the USB 3.0 ports • USB keyboards connected through a USB hub connected to the USB 3.0 ports The PXI-63980 provides two Type A USB 3.0 ports on the front panel, supporting SuperSpeed, Hi-Speed, full-speed, and lowspeed transmission for downstream. Multiple boot devices, including USB flash, USB external HD, and USB CD-ROM drives are supported, with boot priority configured in BIOS.
  • Page 20: Installation Environment

    • Anti-static wrist strap • Anti-static mat JYTEK PXI-63980 system controllers are electrostatically sensitive and can be easily damaged by static electricity. The equipment must be handled on a grounded anti-static mat, and operators must wear an anti-static wristband, grounded at the same point as the anti-static mat.
  • Page 21: 2�3�12 Installing The Pxi-63980

    2�3�13 Replacing the Hard Drive or Solid State Drive The PXI-63980 provides a SATA 2.0 port with a pre-installed 2.5" SATA hard drive or solid state drive. Replacing the HDD or SSD is accomplished as follows. 1. Locate the four screws attaching the drive to the bracket on the side of the PXI- 63980.
  • Page 22: Replacing The Battery Backup

    5. Reinstall the embedded controller into the PXI chassis and restore power. 2�3�15 Clearing CMOS In the event of a system malfunction causing the PXI-63980 to halt or fail to boot, clear the CMOS and restore the controller BIOS to its default settings. To clear the CMOS: 1.
  • Page 23: Initiating Backup Bios Flash

    BIOS flash on the PXI-63980 is divided into Backup and Normal sections. In the event of a system malfunction causing the PXI-63980 to halt or fail to boot, and clearing the CMOS fails to resolve the issue, the BIOS flash backup switch (see Section 2.3.10 Onboard Connections and Settings) can enable the backup BIOS flash.
  • Page 24: Driver Installation

    8. Install the WDT (watchdog timer) driver 9. Install the USB 3.0 driver 3�2 Installing the Chipset Driver This section describes installation of the chipset driver for PXI-63980. The chipset driver directs the operating system to configure the Intel® QM67 chipset components to ensure operation of: •...
  • Page 25: 3�3 Installing The Graphics Driver

    3�3 Installing the Graphics Driver To install the graphics driver: 1. Close any running applications 2. Insert the JYTEK All-in-One USB Flash Driver (x: denotes the USB driver) ◦ The Win7 32-bit graphics driver is located in the directory: x:\Driver Installation\ PXI Platform\PXI controller\PXI-63980\Win7_32bit\Graphics\ ◦...
  • Page 26: Installing The Management Engine Driver

    4. Reboot the system 3�7 Installing the PXI Trigger Driver The PXI-63980 controller provides a trigger I/O on the faceplate to route the trigger signal to and from the PXI trigger bus. Please see Appendix A: PXI Trigger I/O Function Reference for programming information.
  • Page 27: 3�9 Installing The Usb 3�0 Driver

    4. Reboot the system 3�9 Installing the USB 3�0 Driver The PXI-63980 controller provides two USB 3.0 ports on the faceplate. To install the USB 3.0 drivers: 1. Close any running applications. 2. Insert the JYTEK All-in-One USB Flash Driver (x: denotes the USB driver) ◦...
  • Page 28: Bios Setup

    The Basic Input/Output System (BIOS) provides a basic level of communication between the processor and peripherals. In addition, the BIOS also contains code for various advanced features applied to the PXI-63980 controller. The BIOS setup program includes menus for configuring settings and enabling PXI-63980 controller features.
  • Page 29: 4�2 Main Setup

    Key(s) Function <F2> Loads previous values into the BIOS <F3> Restores default values into the BIOS <F4> Saves the current configuration and exits BIOS setup <F9> Loads the optimal default BIOS settings Table 4-1: BIOS Hot Key Functions Figure 4-1: BIOS Setup Navigation A hot key legend is located in the right frame on most setup screens.
  • Page 30: 4�3 Advanced Setup

    Item Detail BIOS Information Includes BIOS version and the date on which the BIOS was built System Date & Time System Date Changes system date, date must be entered in MM/ DD/YY format System Time Changes system time, time must be entered in HH:MM:SS format.
  • Page 31: Chipset Configuration

    4�4 Chipset Configuration Item Detail System Agent Configuration Graphic controller information and configuration, system memory configuration PCH-I/O Configuration USB and PCIe Port configuration information Table 4-4: BIOS Chipset Configuration Menu 4�5 Boot Setup Item Detail Boot Configuration Quiet Boot When disabled, allows POST messages to be viewed (default is Enabled).
  • Page 32: 4�7 Save & Exit Setup

    Passwords are not recoverable. Please ensure that all passwords are recorded elsewhere. If your passwords are lost, NVRAM must be erased and reconfigured. 4�7 Save & Exit Setup The following options for saving and exiting can be chosen in this menu. Save Changes and Exit •...
  • Page 33: Appendix A - Pxi Trigger I/O Function Reference

    Appendix A - PXI Trigger I/O Function Reference This appendix describes use of the PXI trigger I/O function library for the PXI-63980 controller, to program routing of trigger signals between the trigger I/O SMB connector on the faceplate and the PXI trigger bus on the backplane.
  • Page 34: Function Library

    A.2 Function Library This section provides detailed definitions of the functions available in the PXI-63980 function library. Each function includes a description, list of supported cards, syntax, parameter list and Return Code information. A�2�1 TRIG_Init Description Initializes trigger I/O function of PXI-63980 controller.
  • Page 35: Trig_Setsofttrg

    A�2�3 TRIG_SetSoftTrg Description Generates a TTL trigger signal to the trigger I/O SMB connector on the faceplate or the PXI trigger bus on the backplane by software command Supported Controllers PXI-63980, PXI-63930, Syntax C/C++ ◦ I16 TRIG_SetSoftTrg(U8 Status) Visual Basic ◦...
  • Page 36 Parameters source Source of trigger routing. It can be one of the following values. Available Value Description PXI_TRIG_VAL_SMB SMB connector on the faceplate PXI_TRIG_VAL_SOFT Software-generated trigger signal PXI_TRIG_VAL_TRIG0 PXI trigger bus #0 PXI_TRIG_VAL_TRIG1 PXI trigger bus #1 PXI_TRIG_VAL_TRIG2 PXI trigger bus #2 PXI_TRIG_VAL_TRIG3 PXI trigger bus #3 PXI_TRIG_VAL_TRIG4...
  • Page 37: A�2�5 Trig_Trigger_Clear

    ERR_Set_Path A�2�5 TRIG_Trigger_Clear Description Clears the trigger routing setting Supported Controllers PXI-63980, PXI-63930, Syntax C/C++ ◦ I16 TRIG_Trigger_Clear() Visual Basic ◦ TRIG_Trigger_Clear() As Integer Parameters None Return Code ERR_NoError ERR_BoardNoInit ERR_Trigger_Clr A�2�6 TRIG_GetSoftTrg Description Acquires the current software trigger state, with default state after system boot of Logic...
  • Page 38: Trig_Trigger_Route_Query

    ERR_NoError ERR_BoardNoInit ERR_Query_Status A.2.7 TRIG_Trigger_Route_Query Description Acquires the current trigger signal routing path Supported Controllers PXI-63980, PXI-63930, Syntax C/C++ ◦ I16 TRIG_Trigger_Route_Query (U32* source, ◦ U32* dest, U32* halfway) Visual Basic ◦ TRIG_Trigger_Route_Query (source As Long, dest ◦ As Long, halfway As Long) As Integer...
  • Page 39: A�2�8 Trig_Getdriverrevision

    ERR_Query_Status A�2�8 TRIG_GetDriverRevision Description Acquires the PXI Trigger software driver version; format of the version number is major. minor1.minor2 Supported Controllers PXI-63980, PXI-63930, Syntax C/C++ ◦ I16 TRIG_GetDriverRevision(unsigned short *major, unsigned short *minor1, unsigned short *minor2) Visual Basic ◦ TRIG_GetDriverRevision (major As Integer, minor1 As Integer, minor2 As Integer)
  • Page 40 Returns the first minor version number of the pxi trigger software driver minor2 Returns the second minor version number of the pxi trigger software driver Return Code ERR_NoError ERR_Query_Revision ...
  • Page 41: Appendix B - Watchdog Timer

    Appendix B - Watchdog Timer This appendix describes use of the watchdog timer (WDT) function library for the PXI-63980 controller. The watchdog timer is a hardware mechanism resetting the system when the operating system or application halts. After starting, periodic reset of the watchdog timer in the application before expiry is required.
  • Page 42: B�1�3 Startwdt

    Starts watchdog timer function. Once invoked, the watchdog timer countdown starts, and ResetWDT or StopWDT should be called before the expiration of the watchdog timer, or the system will be reset. Supported Controllers PXI-63980, PXI-63930, Syntax C/C++ ◦ BOOL StartWDT() Visual Basic ◦...
  • Page 43: B�1�5 Stopwdt

    Supported Controllers PXI-63980, PXI-63930, Syntax C/C++ ◦ BOOL ResetWDT() Visual Basic ◦ ResetWDT() As Boolean Parameter None Return Code True If watchdog timer resets successfully False If watchdog timer fails to reset B�1�5 StopWDT Description Stops the watchdog timer. Supported Controllers...
  • Page 44: Important Safety Instructions

    Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. • Read these safety instructions carefully. • Keep this user’s manual for future reference. •...
