I. Overview

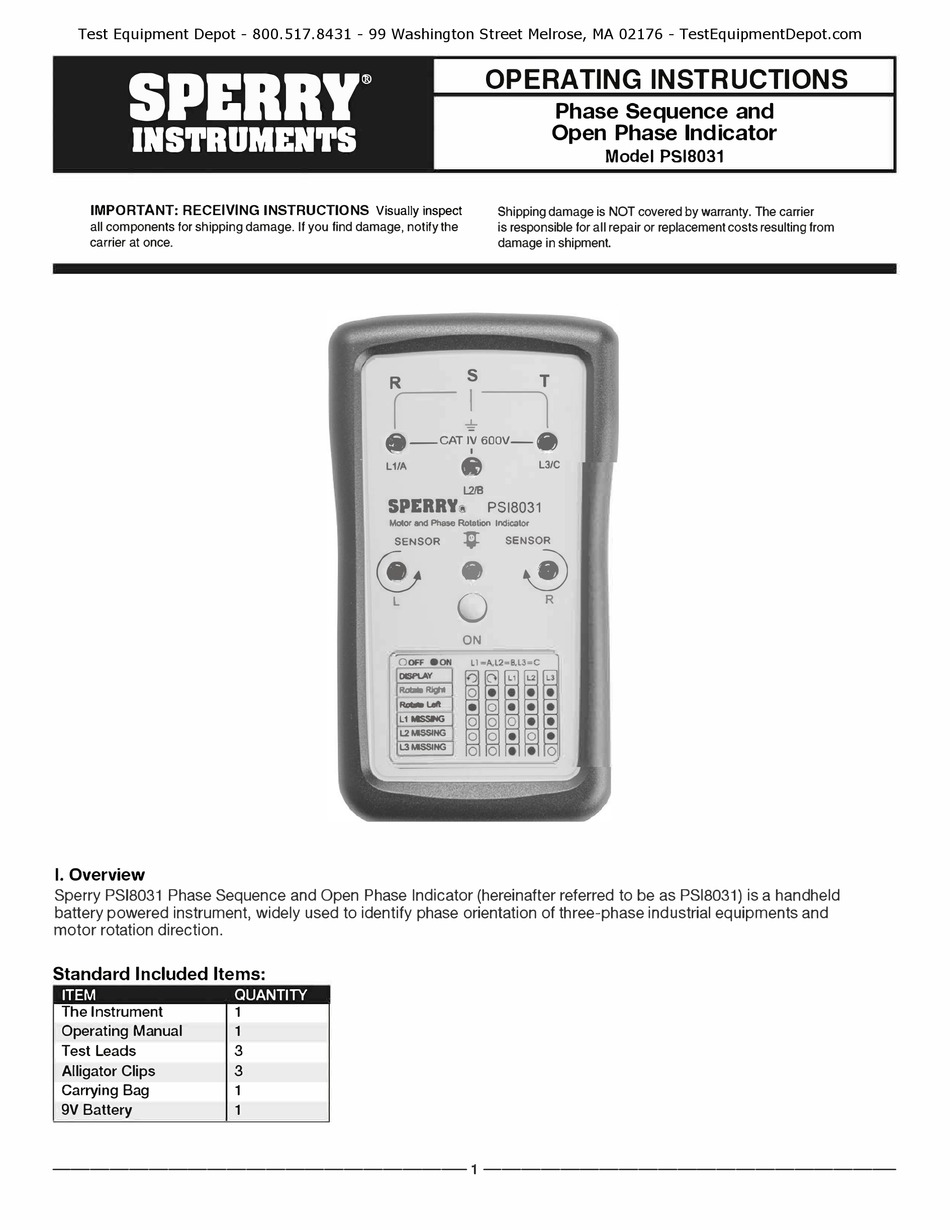

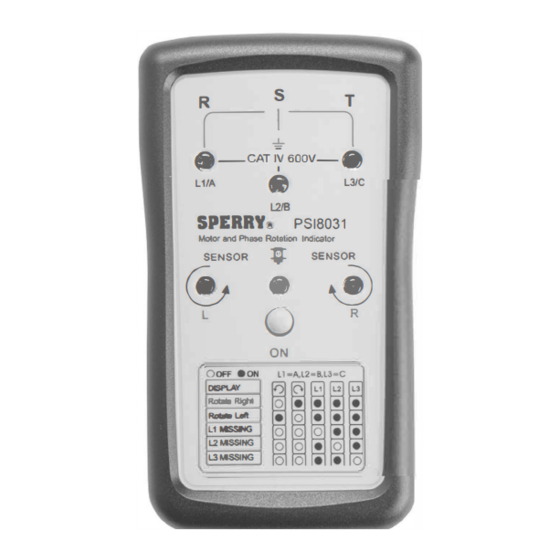

Sperry PSl8031 Phase Sequence and Open Phase Indicator (hereinafter referred to be as PSl8031} is a handheld
battery powered instrument, widely used to identify phase orientation of three-phase industrial equipments and
motor rotation direction.
Standard Included Items:
ITEM
The Instrument
Operating Manual
Test Leads
Alligator Clips
Carrying Bag
9V Battery
