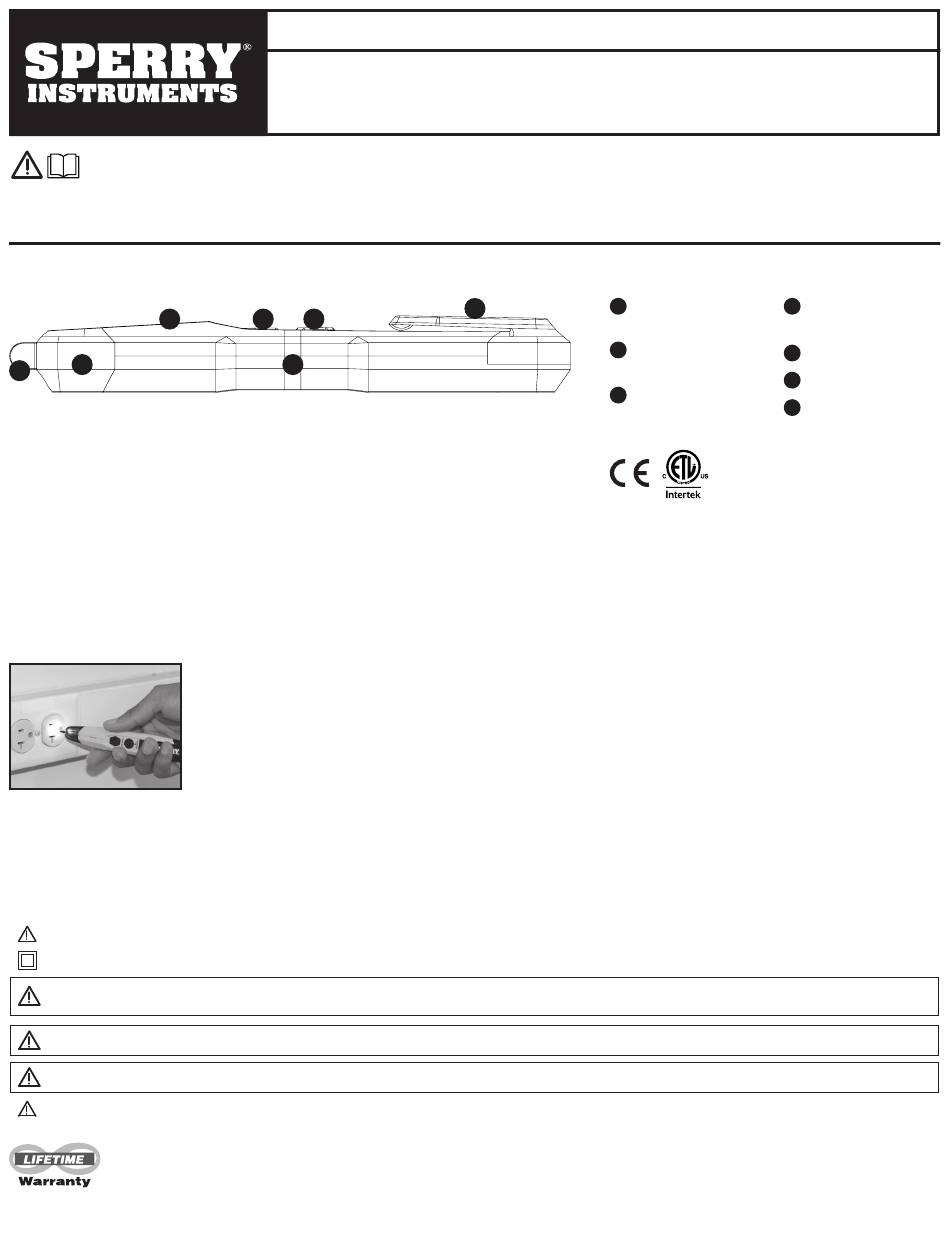

Sperry instruments VD6509 Operating Instructions

READ ALL OPERATING INSTRUCTIONS BEFORE USE. Use extreme caution when checking electrical circuits to avoid injury due to
electrical shock. Sperry Instruments assumes basic knowledge of electricity on the part of the user and is not responsible for any injury or
damages due to improper use of this tester.
OBSERVE and follow all standard industry safety rules and local electrical codes.
When necessary call a qualified electrician to troubleshoot and repair the defective electrical circuit.
1.0 METER FUNCTIONS
3
2
1
SPECIFICATIONS:
Operating Range: adjustable from 12-1000 VAC, 50-60 Hz; CAT III 1000V/CAT IV 600V
Indicators: Visual and Audible
Operating Environment: 32° - 104° F (0 - 32° C) ; 80% RH max.,
50% RH above 30° C
Altitude up to 2000 meters. Indoor use.
Pollution degree 2.
Cleaning: Remove grease and grime with clean, dry cloth.
2.0 OPERATION:
Fig. 1
Static Electricity - The tester is subject to electrical static interference. If the LED or tone actives a single time, it is detecting the static
electricity in the air. When detecting voltage, the LED and tone will activate repeatedly.
3.0 SAFETY WARNINGS:
CAUTION – REFER TO THIS MANUAL BEFORE USING THIS TESTER.
Double Insulation: The tester is protected throughout by double insulation or reinforced insulation.
Warning: This product does not sense potentially hazardous voltages below 50 volts.
Do not use outside of the marked/rated ranges indicated.
Warning: To assure the unit is operating properly, always test on a known live circuit before use.
Warning: This tester will not detect voltage in wires that are electrically shielded by metal conduit or grounded electrical enclosures
Do not place any portion of your hand nearer the tip than the Power button
Limited Lifetime Warranty limited solely to repair or replacement; no warranty of merchantability or fitness for
a particular purpose. Product is warrantied to be free of defects in materials and workmanship for the normal
life of the product. In no event Sperry Instruments be liable for incidental or consequential damage.
7 5
4
Before use test the battery by pressing the power button (#7) on the top side of the tester. If the battery is good
then the light will flash and speaker will chirp momentarily. If indicators do not function then replace the battery.
This unit operates from 1 AAA battery. To replace the battery, slide the pocket clip (#6) up as indicated with the
arrow on the side of the pocket clip. Insert a new battery and slide the pocket clp back into place.
To test for voltage - Press the power button to turn on the tester. This will also turn on the LED flashlight.
The tester and flashlight will remain on until the power button is pressed again. This unit has an adjustable dial
on the top of the unit. To increase the sensitivity rotate the dial counter clockwise. Increasing the sensitivity
increases the detection range of standard 120 VAC circuits. See Fig. 1 - Place sensor on or near the wire,
device or circuit to be tested. If AC Voltage between 12-1000 VAC is present the red LED and flashlight will
flash and the speaker will beep continuously.
OPERATING INSTRUCTIONS

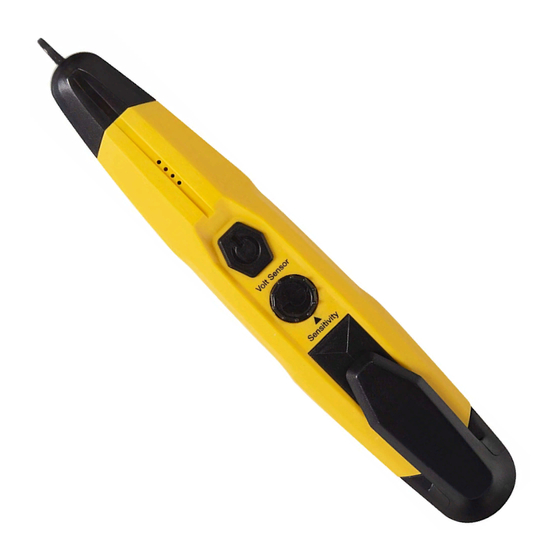

ADJUSTABLE NON-CONTACT
VOLTAGE TESTER W/ LED FLASHLIGHT
VD6509
6
800.624.4320 • Waukesha, WI • sperryinstruments.com •
1 4
Super bright LED
flashlight
2
Hi-Vis™ 360°
5
indication
6
3
Loud beeping
7
audible indication
Hi-impact
ABS housing
Sensitivity dial
Pocket clip
Power button
SPR_TL_085_1118
