Sperry instruments Breaker Finder CS61200 - Circuit Breaker Locator Operating Manual

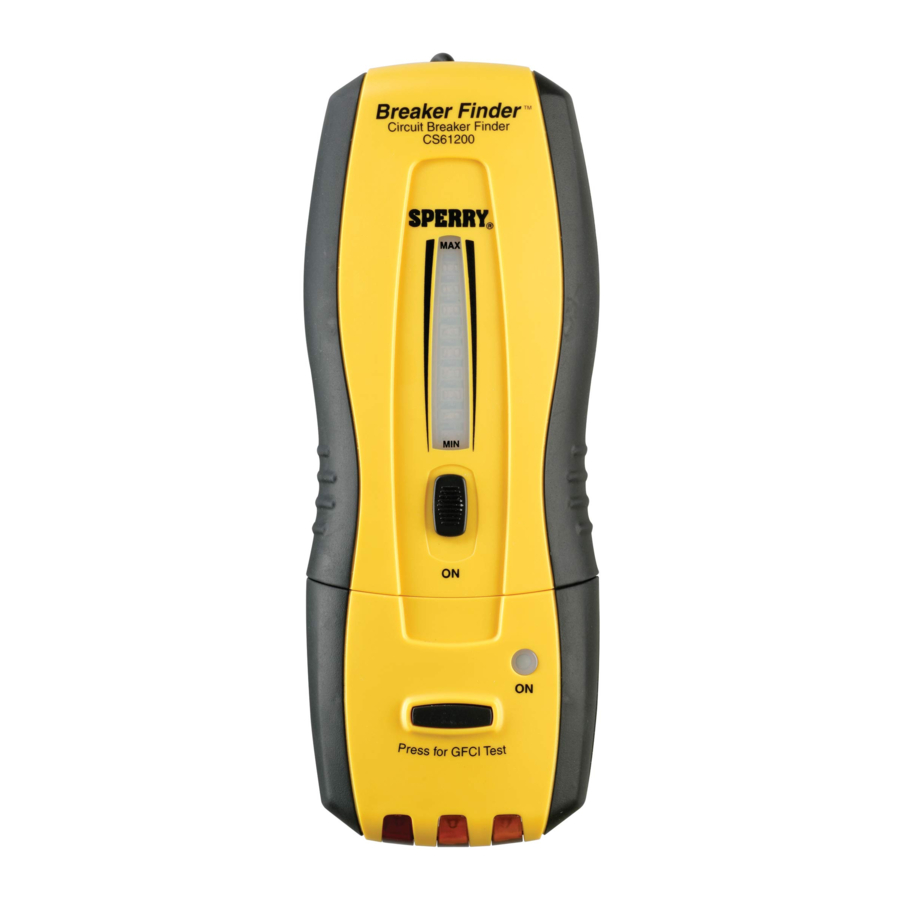

Device Оverview

Transmitter

1. 3-Prong Outlet Tester
2. Color-Coded Wiring Status
3. GFCI Test Button.
4. Transmit on L.E.D.

Receiver

1. On-OFF Button
2. 10 Visual Indication L.E.D.s
3. Over-Molded Soft Grips
   • Patented Sensing Probe
   • Magnetic back
   • Snap Together Edges
   • Operates from 9 Volt Battery (included)

The CS61200 Breaker Finder is used to quickly and easily locate the breaker or fuse protecting a specific electrical circuit. It uses a plug-in transmitting device and receiver to trace outlets, switches and lighting fixtures. The plug-in transmitter also includes an integrated outlet tester to assure the circuit is wired properly. The transmitter and receiver snap together for compact storage.

SPECIFICATIONS

• Receptacle Transmitter Operating Range: 90 to 120 VAC; 60 Hz
• Indicators: Audible and Visual
• Operating environment: 32°- 104°F (0°- 40°C) 80% RH max., 50% RH above 30°C
  Altitude up to 2000 meters. Indoor use.
  Pollution degree 2. Accordance with IED-664
• Battery: Receiver operates from one 9 Volt
• Cleaning: Remove grease and grime with clean, dry cloth

OPERATION

Using the plug-in transmitter and hand-held receiver, quickly and safely detect the proper breaker or fuse protecting a specific outlet, wall switch or lighting fixture.

Note:A separate accessory, CS61200AS, is required to trace switches and lighting fixtures.

Locating Electrical Outlets

1. Detach transmitter from receiver housing and plug into outlet.
2. Verify transmitter is sending a signal by viewing the Green "Transmit" L.E.D. on the top of the unit.
3. The transmitter also includes an outlet wiring tester. For operation of this feature please review and follow the directions at the end of the manual.
4. Verify receiver has a fresh 9-volt battery and operating properly by viewing the L.E.D.(s) on the front of the receiver.
5. Using the "wand" on the receiver, as shown in Fig. 1, trace the breakers or fuses to detect the transmitting signal. The orientation of the wand is critical in order to pick up the transmitting signal. Place the wand as shown for proper operation.
   Note: Due to the proximity of other electrical wiring it is possible for the receiver to indicate a signal on multiple breakers. To locate the proper breaker it may be necessary to listen for the loudest beeping and watch for the highest L.E.D.indication to identify the proper breaker.

6. Once the proper breaker is located, continue to hold the receiver wand against the breaker and switch the breaker off. This will remove power to the remote transmitter and the receiver will stop producing a response. As an additional precaution verify the power is off by viewing the status of the green L.E.D. on the transmitter. It will not be illuminated if the power is off.

Locating Lighting Fixture Circuits (requires accessory part # CS61200AS)

1. Remove light bulb and insert the yellow screw in receptacle. (Fig. 3)

2. Plug the transmitter into the adapter and verify power is on by viewing the green L.E.D. on the transmitter. Note: Power must be on for the transmitter to work.(Fig. 3)
3. Go to breaker panel and locate the circuit using the receiver (Fig. 2) as discussed in the previous "Operation" section.


Locating Switches and Other Wiring (requires accessory part # CS61200AS)

1. Attach the black alligator clip to the hot (black) wire and the white alligator clip to the neutral wire (white). If a neutral wire is not present clip the white lead to a ground wire or metal box.
2. Screw in the yellow receptacle adapter and plug in the transmitter. Verify the power is on by viewing the green L.E.D. on the transmitter. (Fig. 4)

3. Go to the breaker panel and locate the circuit using the receiver (Fig. 2) as discussed in the previous "Operation" section.

OUTLET TESTER

1. Detach the outlet tester from the receiver housing.
2. Plug the unit into any 120 VAC 3-wire outlet. (Fig. 5)

3. Observe the L.E.D.s and match with the status chart located on the housing. (Fig. 6)

4. Rewire outlet (if necessary) until the tester indicates a correct wiring status.

GFCI Test Function

Operation:

1. Plug the tester into any 120 Volt standard or GFCI outlet.
2. View the indicators on the tester and match with the chart on the tester.
3. If the tester indicates a wiring problem then turn off all power to the outlet and repair wiring.
4. Restore power to the outlet and repeat steps 1-3.

To Test GFCI Protected Outlets:

1. Consult the GFCI manufacturer's installation instructions to determine that the GFCI is installed in accordance with the manufacturer's specifications.
2. Check for correct wiring of receptacle and all remotely connected receptacles on the branch circuit.
3. Operate the test button on the GFCI installed in the circuit. The GFCI must trip. If it does not — do not use the circuit — consult an electrician. If the GFCI does trip, reset the GFCI. Then, insert the GFCI tester into the receptacle to be tested.
4. Activate the test button on the GFCI tester for a minimum of 6 seconds when testing the GFCI condition (Fig. 7). Visible indication on the GFCI tester must cease when tripped.

5. If the tester fails to trip the GFCI, it suggests:
   1. a wiring problem with a totally operable GFCI, or
   2. proper wiring with a faulty GFCI.
      Consult with an electrician to check the condition of the wiring and GFCI.

When testing GFCIs installed in 2- wire systems (no ground wire available), the tester may give a false indication that the GFCI is not functioning properly. If this occurs, recheck the operation of the GFCI using the test and reset buttons. The GFCI button test function will demonstrate proper operation.

Note:

1. All appliances or equipment on the circuit being tested should be unplugged to help avoid erroneous readings.
2. Not a comprehensive diagnostic instrument but a simple instrument to detect nearly all probable common improper wiring conditions.
3. Refer all indicated problems to a qualified electrician.
4. Will not indicate quality of ground.
5. Will not detect two hot wires in a circuit.
6. Will not detect a combination of defects.
7. Will not indicate a reversal of grounded and grounding conductors.

REPLACING THE BATTERIES

The receiver unit operates from a standard 9 Volt battery. To replace, remove the battery door cover located on the back, with a small screwdriver. Replace with new battery and then shut the battery door.
