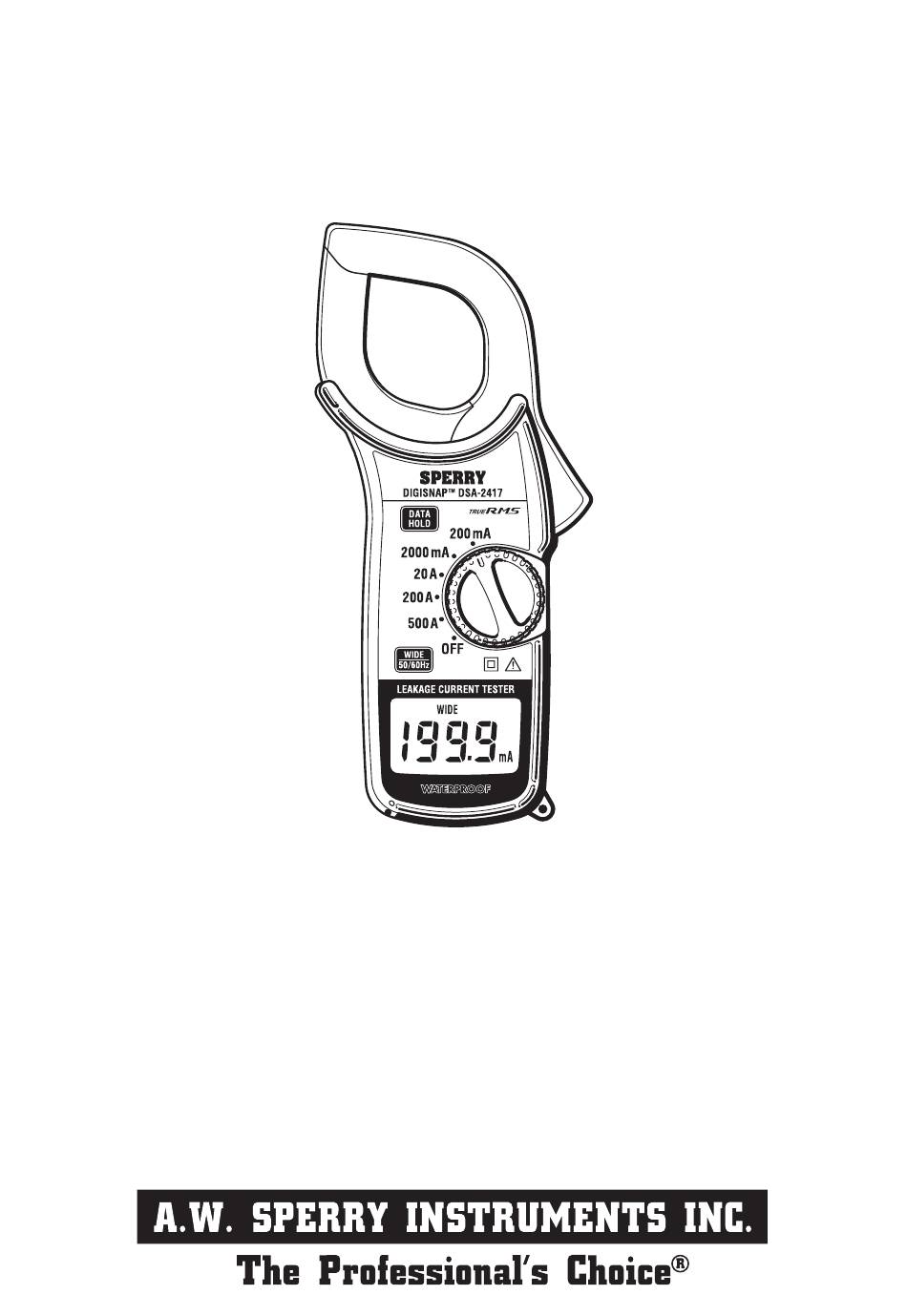

- Page 1 7/05 FORM#352 OPERATING INSTRUCTIONS ALL WEATHER DIGITAL LEAKAGE CURRENT TESTER DSA-2417...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY WARNINGS ……………………………………………………………………1 2. FEATURES ………………………………………………………………………………3 3. SPECIFICATIONS ………………………………………………………………………4 4. INSTRUMENT LAYOUT ………………………………………………………………6 5. PREPARATION FOR TESTS …………………………………………………………8 6. OPERATING INSTRUCTIONS …………………………………………………………9 6-1 CURRENT MEASUREMENTS …………………………………………………9 6-2 FREQUENCY SELECTOR SWITCH ……………………………………………11 6-3 DATA HOLD ……………………………………………………………………13 6-4 AUTOMATIC POWER OFF ………………………………………………………13 7. BATTERY REPLACEMENT ……………………………………………………………14... -
Page 3: Safety Warnings
1. Safety Warnings This instruction manual contains warnings and safety rules which must be observed by the user to ensure safe operation of the instrument and retain it in safe condition. Therefore, read these operating instructions thoroughly and completely before using the instrument. - Page 4 8. Do not make measurements in an explosive atmosphere (i.e. in the presence of flammable gasses or fumes, vapor or dust). 9. Calibration and repair of any instrument should only be performed by qualified and trained service technicians. Do not attempt calibration or service unless another person capable of rendering first aid and resuscitation is present.
-
Page 5: Features
2. Features DSA-2417 offers True RMS measurement capability. Designed for measurements of AC leakage and AC current with five ranges from 200mA to 500A. AC 200mA range provides a high resolution of 0.1mA. Least affected by external magnetic field. Provides dual frequency responses of fundamental 50/60 Hz only or up to 1 kHz. -
Page 6: Specifications
3. SPECIFICATIONS • AC current ranges at 23±10℃ , 85％ relative humidity Accuracy Ranges Frequency Selector Switch WIDE(40Hz ∼ 1kHz)position 50/60Hz position 200mA 0-199.9mA ±1.0% rdg±4 dgt (50/60Hz) ±1.5 % rdg±6dgt ±3.0% rdg±4 dgt (40Hz ∼ 1kHz) 2000mA 0-1999mA 0-19.99A ±1.5 % rdg±4 dgt (50/60Hz) ±2.0% rdg±6 dgt ±3.5% rdg±4 dgt (40Hz ∼... - Page 7 Insulation Resistance: 10MΩ min. at 1000V between electrical circuit and housing case, and electrical circuit and transformer jaws Withstand Voltage: 3700V AC for 1 minute between electrical circuit and housing case as well as electrical circuit and transformer jaws Conductor Size: Approx.
-
Page 8: Instrument Layout
4. INSTRUMENT LAYOUT ⑦ Fig.1 − 6 −... - Page 9 ① Transformer Jaws Pick up current flowing through the conductor. ② Jaw Trigger Operates the transformer jaws. Press to open them. ③ Power/Range Switch Selects ranges. Also, turns power on. Always turn the switch to off after use. ④...
-
Page 10: Preparation For Tests
5. PREPARATIONS FOR TESTS WARNING Always inspect your instrument and accessories for any sign of damage or abnormality before every use. If any abnormal conditions exist (eg. cracked cases, display not reading, etc.), do not attempt to conduct any tests. 5-1 Battery Check To check the battery voltage set the Power/Range Selector Switch to OFF position. -
Page 11: Operating Instructions
6. OPERATING INSTRUCTIONS 6-1 Current Measurements WARNING • Do not make measurements where the potential is greater than 600V AC. This may cause shock hazard and damage to the instrument or equipment under test. • The Transformer Jaws are made of metal and their tips are not insulated. - Page 12 NOTE • When making current measurements, keep the Transformer Jaws fully closed. Otherwise, accurate measurements cannot be taken. Maximum conductor size is 40mm in diameter. • When measuring larger current, the Transformer Jaws may buzz. This is not a fault and does not affect the accuracy either. ⑴Set the Range Switch to the desired “A”or “mA”position.
-
Page 13: Frequency Selector Switch
NOTE • For more accurate measurements, place the conductor at the center of the closed jaws. • When measuring current on a line or a grounded wire, clamp onto one conductor only. ⑷ When measuring out of balance leakage current, clamp onto all conductors except a grounded wire as shown in Fig. - Page 14 NOTE • DSA-2417 has a very good frequency response due to the electrical property of the transformer jaws used for the instruments. Therefore, it measures AC current of not only 50 Hz or 60 Hz fundamental wave form but also of higher frequencies and harmonics superimposed on the fundamental frequency when present in the circuit under test.
-
Page 15: Data Hold
Push the button again to exit from Data Hold mode. 6-4 Automatic Power Off DSA-2417 automatically turns power off in approx. 30 minutes after it is turned on. To operate the instrument, set the Frequency Selector Switch back to OFF position and than ON position. -
Page 16: Battery Replacement
7. BATTERY REPLACEMENT 7-1 When to replace the battery ⑴When “B”symbol is displayed on the digital display. ⑵ When the digital display does not read with the Power/Range Selector Switch set to ON position. 7-2 Battery replacement ⑴Set the Power /Range Selector Switch to OFF position. ⑵Unscrew and remove the battery compartment cover as shown in Fig. - Page 17 Be sure to include your name and address, as well the name of the distributor, with a copy of your invoice from whom the unit was purchased, clearly identifying the model number and date of purchase. A.W.SPERRY INSTRUMENTS INC. ATT: Customer service dept. 2150 Joshua’ s Path, Suite 302,...
- Page 18 MEMO − 16 −...
- Page 19 MEMO − 17 −...
