3. KeyPad Malfunction
The KeyPad is made of 16 independent switches. The information of a pressed
button is sent to the CPU with help of a row and column detector. One should
feel a 'click' upon pressing a button. If there is no click then the PCB board
adjustment should be checked.
4.7K
R11
R12
COL1
Alarm
Temp
Time
Enter
3.1 Failed KeyPad Buttons
NOTE: Please write down each failed button number in order to see if the
problem is for a complete row or column.
In order to verify the buttons, please reset the KeyPad controller (ON/OFF)
and select the Operation section in the main MENU.
A target temperature is now asked.
First, verify all digits. Every time you press a button, you should see the
corresponding number under the cursor.
When it is done and all digits are fine, enter 25.0 and press the ENTER key.
Enter "1" in the "Target Time" menu and press ENTER key.
Now its time to verify the ARROW keys.
KeyPad service manual
Rev.1.1
+5V
4.7K
4.7K
R13
R14
COL2
COL3
3
2
6
5
9
8
0
Shif t R

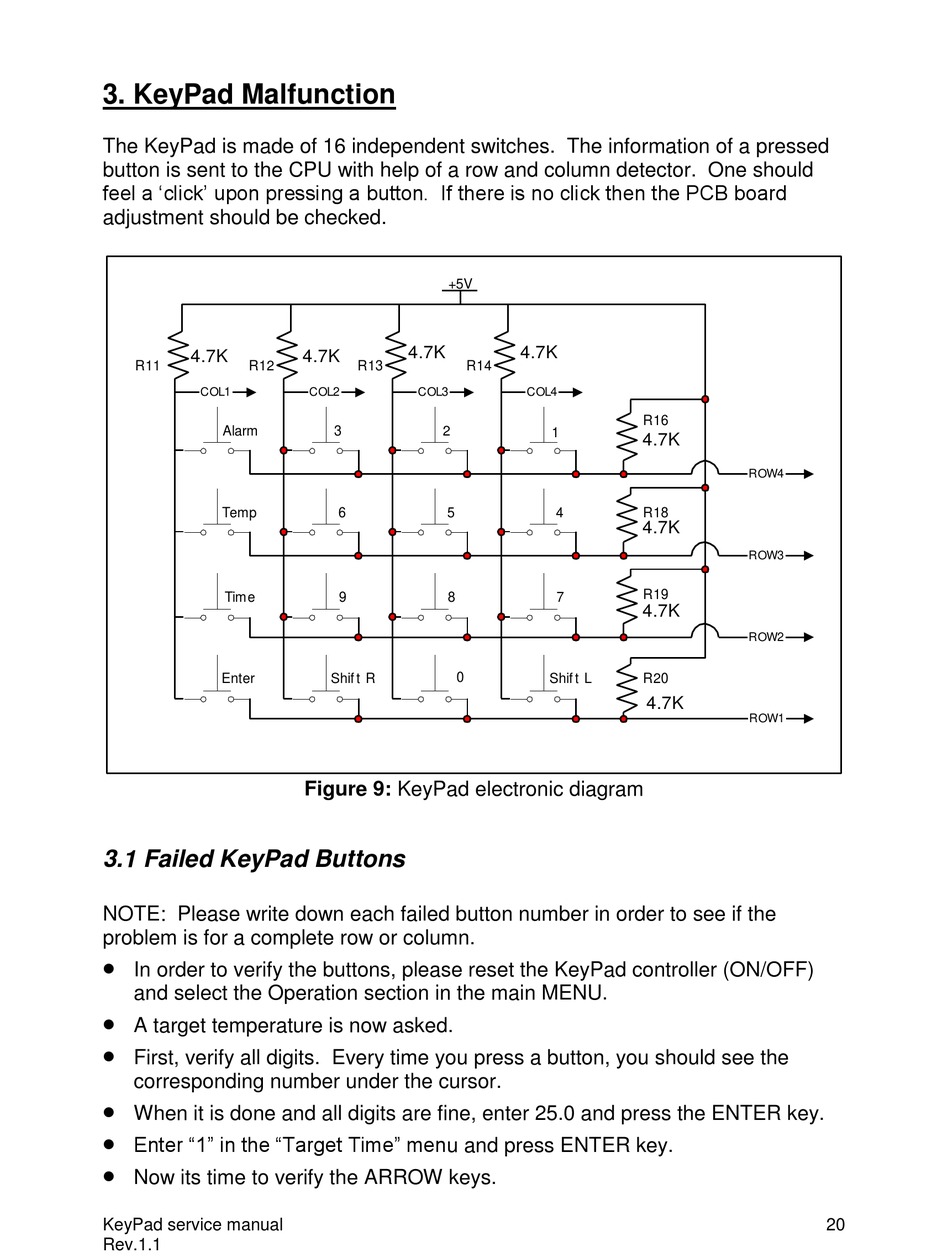

Figure 9: KeyPad electronic diagram
4.7K
COL4
R16
1
4.7K
4
R18
4.7K
R19
7
4.7K
Shif t L
R20
4.7K
ROW4
ROW3
ROW2
ROW1
20
