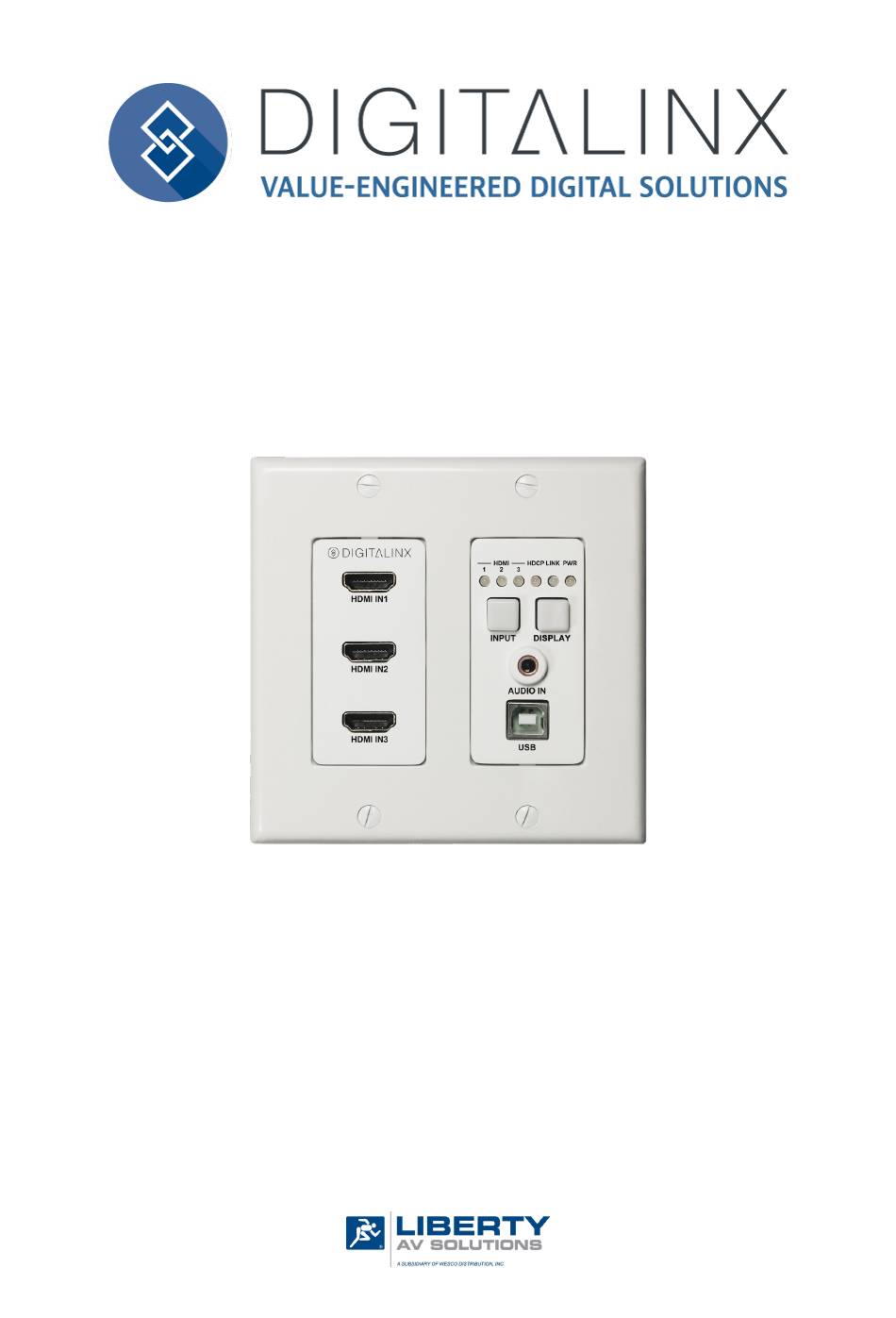

- Page 1 DL-3H1U-WP-W Owners Manual Rev 190918 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
-
Page 3: Important Safety Instructions
DL-3H1U-WP-W Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions. -
Page 4: Table Of Contents
Overview ����������������������������������������������������������������������������������������������������������������������������������������������������� Downloading RS232 Port Configuration Software ................Making a PC Connection........................Running RS232 Automation Configuration Software ���������������������������������������������������������������������������������� Serial Settings for DL-3H1U-WP-W ������������������������������������������������������������������������������������������������������������� Configuring RS232 Serial Commands ���������������������������������������������������������������������������������������������������������� Configuring System Timeout ����������������������������������������������������������������������������������������������������������������������� RS232 / CEC Control Configuration ������������������������������������������������������������������������������������������������������������ CEC Setup and Control ��������������������������������������������������������������������������������������������������������������������������������... -
Page 5: Product Overview
HDMI and High Speed USB 2.0 signals up to 100 meters / 330’ using category cabling. The DL-3H1U-WP-W is 4K compatible with a max resolution of 4K@60Hz / 4:2:0 8bit deep color. An additional analog audio pass through input is located on the wall plate that allows for audio distribution to the HDBaseT receiver side. -
Page 6: Front And Rear Panel
DL-3H1U-WP-W Owners Manual Front and Rear Panel Transmitter View 1. HDMI IN1, IN2, IN3 - HDMI inputs 1-3 2. RESET - Factory default reset button 3. HDMI LEDs • When ON; Corresponding HDMI input signal is being transmitter • When OFF; No HDMI signal is being transmitted or signal is unstable 4. -
Page 7: Transmitter View (Continued)
DL-3H1U-WP-W Owners Manual Transmitter View (continued) 7. INPUT - Input Selection Button 8. DISPLAY - Display On/Off Button 9. AUDIO IN - Pass-through Audio Input 10. USB - USB B Input 11. UPDATE - Micro USB Service Port for Firmware Update 12. -
Page 8: Installation Instructions
Connect audio (optional) Connect and configure control (optional) Apply power Connect HDBaseT Link HDBaseT Connection Connect a category cable from the DL-3H1U-WP-W HDBaseT output to the DL-HD2-RX or DL-HD2A-RX receivers HDBaseT input (sold seperately). TIA/EIA-568B Twisted Pair Wiring Pin 1... -
Page 9: Connecting A/V Sources
5 meters in length. Connecting Audio Audio Input Connect an audio source to the transmitters audio input using a 3.5mm audio cable. The DL-3H1U-WP-W supports a 3.5mm stereo unbalanced input Audio Output (Receiver) Connect an audio amplifier to the receivers audio output using a 3.5mm audio cable. The DL-HD2-RX supports a 3.5mm stereo unbalanced output... -
Page 10: Connecting Control (Receiver)
DL-3H1U-WP-W Owners Manual Connecting Control (Receiver) Connect the DL-HD2-RX receivers RS232 port to a displays serial connection for serial control. Note: The DL-HD2-RX RS232 port can be configured to send stored serial commands from the DL-3H1U-WP-W For directions on RS232 configuration see complete list of control commands on pg13 RS232 / CEC... -
Page 11: Application Diagram
DL-3H1U-WP-W Owners Manual Application Diagram Laptop Audio Source Document Camera HDMI CATx AUDIO Apple TV RS232 up to 100m / 330’ DL-HD2-RX (NOT INCLUDED) Interactive Projector Audio Amp... -
Page 12: Rs232 Port Configuration Software Usage
The Digitalinx RS232 Automation Configuration Software allows you to load ON and OFF serial commands into the RS232 control port of the DL-3H1U-WP-W so the commands can be sent to a connected display or projector to automate power when a video signal is introduced and the DL-3H1U-WP-W is in an off state. -
Page 13: Running Rs232 Automation Configuration Software
DL-3H1U-WP-W Owners Manual Running RS232 Automation Configuration Software Open the configuration software by double clicking the configuration tool icon. The following screen will appear... -
Page 14: Serial Settings For Dl-3H1U-Wp-W
DL-3H1U-WP-W Owners Manual Serial Settings for DL-3H1U-WP-W To establish communication with the software, select the under DEVICE TYPES. DL-3H1U-WP-W... - Page 15 DL-3H1U-WP-W Owners Manual After a device is selected, select the Port number in the drop down field that the USB to RS232 is connected to on the computer. Typically this will default when starting the software after the serial COM connection has been made.
-
Page 16: Configuring Rs232 Serial Commands
Once you have entered in the Baud Rate of the display device in the software, the DL-3H1U-WP-W default baud rate setting will be changed to the same rate setting as well. The RS232 configuration tool will reset the connection to the device using the newly... - Page 17 DL-3H1U-WP-W Owners Manual Enter the displays POWER ON and OFF/STANDBY command for the display device in the Power on and Power off field. Serial commands for displays and projectors are provided by the display manufacturer and can be found in the products instructional documentation.
- Page 18 DL-3H1U-WP-W Owners Manual By default, ASCII command type is used. If the command for display ON/OFF is only available in Hex coding, check the HEX button next to the Power On command field and then enter the Hex command in the Power On and Power Off field.
-
Page 19: Configuring System Timeout
By default system timeout is set to 3 minutes. After there is no present video signal passing through the DL-3H1U-WP-W for 3 minutes the system will transmit the Power off command to the display or projector and trigger the second relay port switch. -
Page 20: Rs232 / Cec Control Configuration
To configure control using command line interface so a connected display can be controlled by the wall plate, connect the DL-3H1U-WP-W USB service port to a local computer using a micro USB to USB A cable. Use a RS232 scripting tool like Putty or Docklight to issue the commands in this guide to set the CEC and RS232 settings according to the displays manufacturers instructions. -
Page 21: Cec Setup And Control
CEC ON command can also be automatically generated to a connected display via HDMI when an active video source is connected to the DL-3H1U-WP-W When using auto CEC on / off control of a display, use the CEC delay commands to define the time when the display will be turned OFF when no video signals are present in the DL-3H1U-WP-W. -
Page 22: Rs232 Control And Configuration
DL-3H1U-WP-W Owners Manual RS232 Control and Configuration An RS232 enabled displays ON and OFF status can be controlled by the DL-3H1U-WP-W via RS232 from the DL-HD2-RX by pressing the DISPLAY button on the DL-3H1U-WP-W. To turn the display ON using RS232, simply quick press the DISPLAY button on the DL-3H1U-WP-W; to turn display OFF simply long press the DISPLAY button on the DL-3H1U-WP-W for 3-5 seconds. - Page 23 DL-3H1U-WP-W Owners Manual RS232 Control and Configuration..continued Description Command Example SET UART_B {b} Command: SET UART_B 9600<CR><LF> Set RS232 Port Baud Rate {b} = [9600] Return: UART_B 9600 <CR><LF> [19200] [38400] [57600] [115200] GET UART_B Command: GET UART_B<CR><LF> Query RS232 Port Baud Rate Return: UART_B 9600 <CR><LF>...
-
Page 24: System / Factory Default
DL-3H1U-WP-W Owners Manual RS232 Control and Configuration..continued Description Command Example SET UART_STR {p} 1 {s} Command: Edit RS232 Display On / Off ASCII String (Up to 64 {p} = [poweron, poweroff] SET UART_STR poweron 1 xxxx<CR><LF> Characters) {s} = [xxxx]... -
Page 25: Technical Specifications
DL-3H1U-WP-W Owners Manual Technical Specifications Video Video Inputs (3) HDMI Video Input Connector (3) HDMI type A Input Video Signal HDMI Output Video Signal HDBaseT 2.0 HDMI: 4096 x 2160@24/30/60 (YUV4:2:0); 3840 x 2160@24/30/60 Input Resolutions Supported (YUV4:2:0); 2560 x 1600@60; 2560 x 1440@60; 1920 x 1200@60; 1920 x 1080@60;... - Page 26 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
