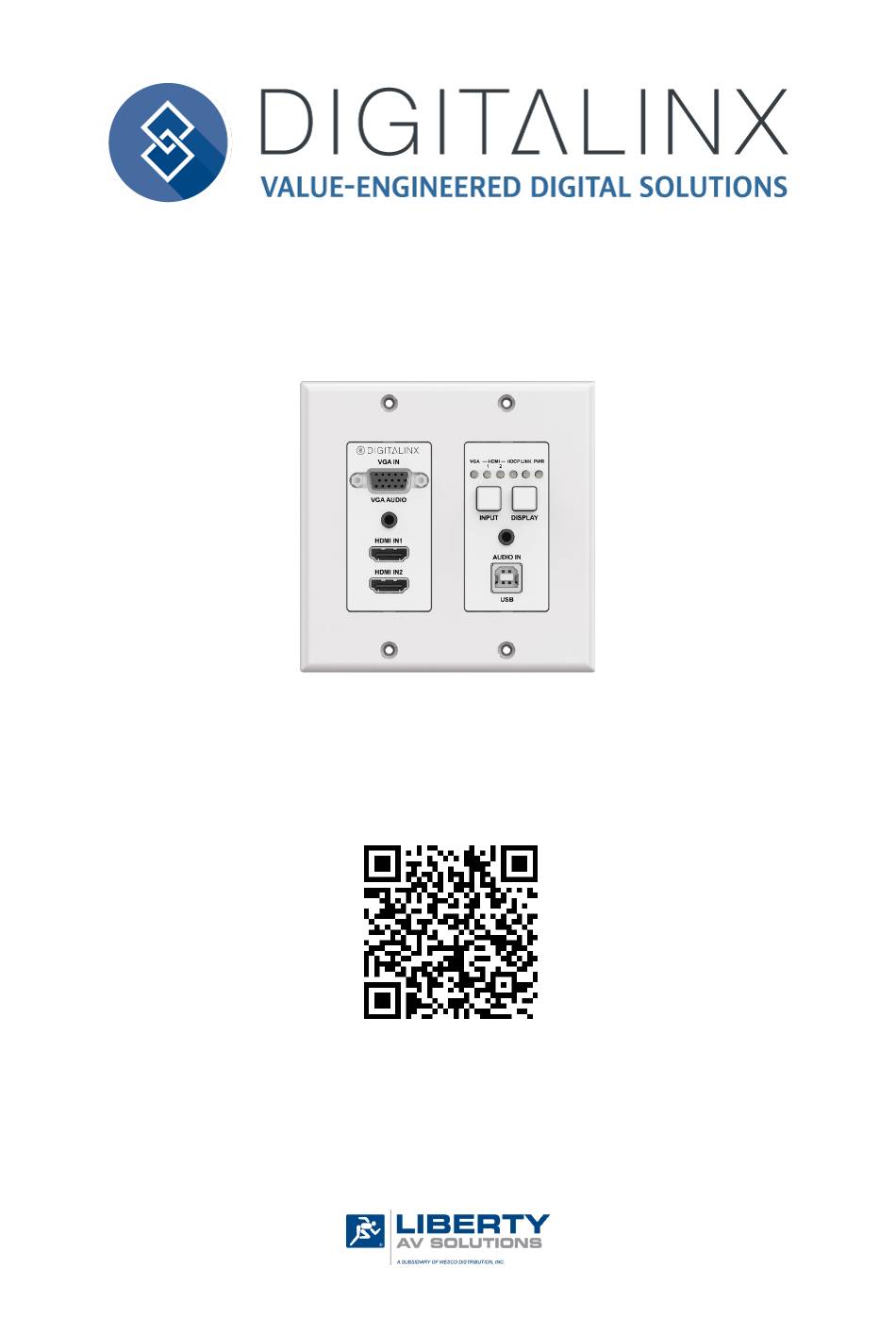

DL-2H1V1U-WP-W Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 191028
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Related Manuals for DigitaLinx DL-2H1V1U-WP-W
Summary of Contents for DigitaLinx DL-2H1V1U-WP-W
- Page 1 DL-2H1V1U-WP-W Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 191028...
-
Page 2: Product Overview
OFF after a specified amount of time has passed when no video signal is present. The DL-2H1V1U-WP-W also gives you the ability to turn the display ON or OFF as well and switch from one input to another manually using the control buttons on the transmitter face plate. For a complete list of programming commands to automate display power status, please see the complete owners manual online at www.libav.com or by using the QR code on the print page of this guide. -
Page 3: Front Panel View
DL-2H1V1U-WP-W Quick Guide Front Panel View 1. VGA IN - VGA Input 2. VGA Audio - VGA Audio Input 3. HDMI IN1 - HDMI inputs 1 4. HDMI IN2 - HDMI inputs 2 5. RESET - Factory default reset button 6. - Page 4 DL-2H1V1U-WP-W Quick Guide 13. AUDIO IN - Pass-through Audio Input 14. USB - USB B Input 15. UPDATE - Micro USB Service Port for Firmware Update 16. HDBT OUT - RJ45 / HDBaseT Output 17. DC12V - DC12V Power Supply Input...
- Page 5 (DL-2H1V1U-WP-W). 6. Connect the power supply adapter to the receiver (DL-HD2-RX/DL-HD2A-RX, sold separately) to power the DL-2H1V1U-WP-W using HDBaseT or connect a 12V power supply to the 2 port phoenix power input of the DL-2H1V1U-WP-W to power locally. 7. Power on attached audio/video and USB devices.
- Page 6 Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the DL-2H1V1U-WP-W, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
-
Page 7: Technical Specifications
DL-2H1V1U-WP-W Quick Guide Technical Specifications Video Video Inputs (1) VGA, (2) HDMI Video Input Connector (1) DB-15, (2) HDMI type A Input Video Signal HDMI, VGA Output Video Signal HDBaseT 2.0 HDMI: 4096 x 2160@24/30/60 (YUV4:2:0); 3840 x 2160@24/30/60 Input Resolutions Supported (YUV4:2:0);... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
