DL-HD70LS Owners Manual
Rev 171031
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80918
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HD70LS and is the answer not in the manual?

Questions and answers

Summary of Contents for DigitaLinx DL-HD70LS

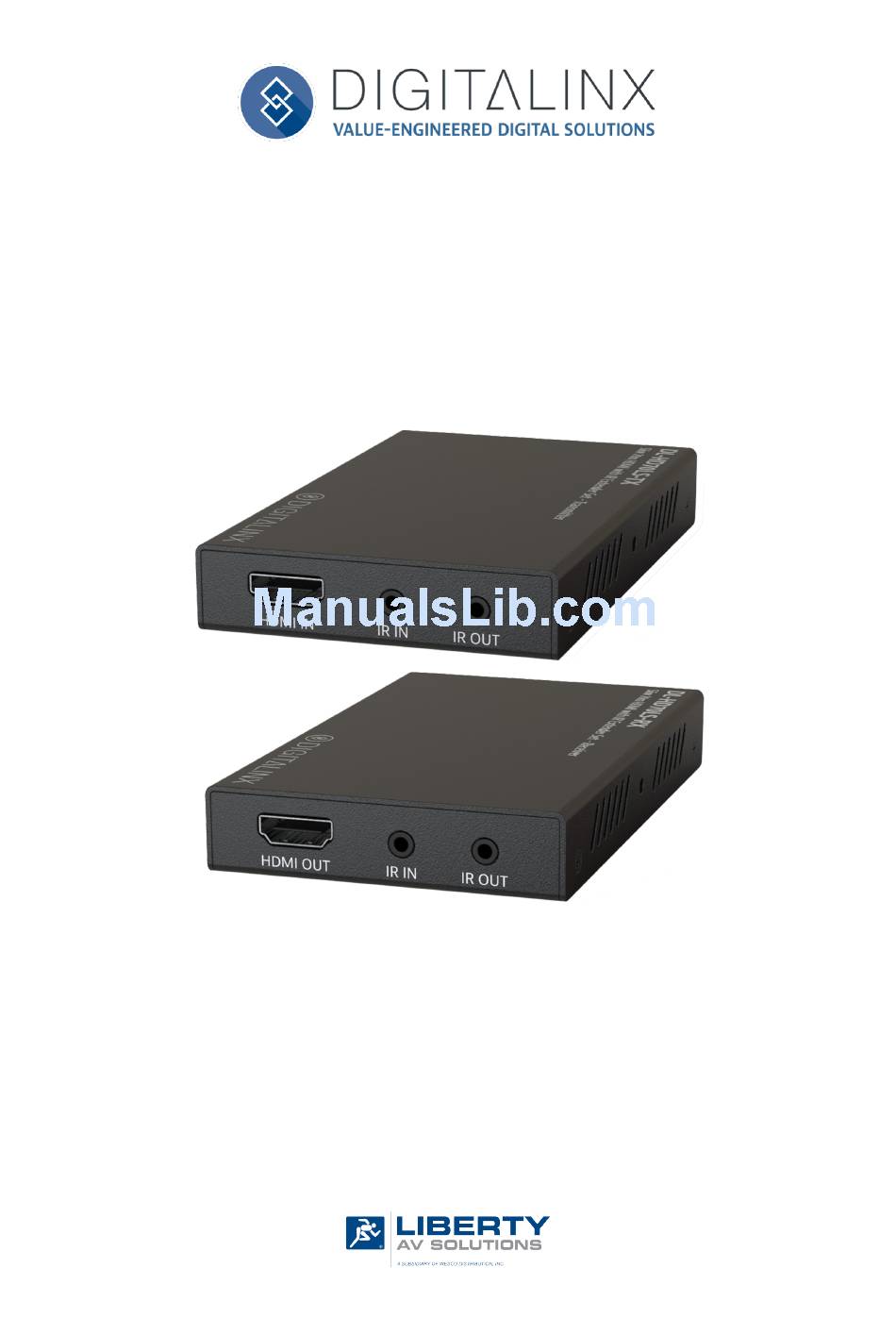

  • Page 1 DL-HD70LS Owners Manual Rev 171031 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80918 Fax: 719-260-0075...
  • Page 2 DL-HD70LS Owners Manual...
  • Page 3: Important Safety Instructions

    DL-HD70LS Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 4: Table Of Contents

    DL-HD70LS Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Transmitter View ������������������������������������������������������������������������������������������������������������������������������������������� Receiver View ������������������������������������������������������������������������������������������������������������������������������������������������ Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connecting a Video Source ��������������������������������������������������������������������������������������������������������������������������� HDMI Input (Transmitter) ........................Connecting a Display �������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5: Product Overview

    Built-in surge protection helps ensure hassle-free and robust installations. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected. The DL-HD70LS is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
  • Page 6: Front And Rear Panels

    DL-HD70LS Owners Manual Front and Rear Panels Transmitter View HDMI INPUT SIDE TWISTED PAIR OUTPUT SIDE HDMI IN • HDMI input port for connections to video sources IR IN • 3.5mm IR input port for connection to IR receiver or IR system IR OUT •...
  • Page 7: Receiver View

    DL-HD70LS Owners Manual Receiver View HDMI OUTPUT SIDE TWISTED PAIR INPUT SIDE HDMI OUT • HDMI output port for connections to display devices IR IN • 3.5mm IR input port for connection to IR receiver or IR system IR OUT •...
  • Page 8: Installation Instructions

    Connect the display to the HDMI output on the DL-HD70LS receiver labeled HDMI OUT using an HDMI cable that is less than or equal to 5 meters in length. It is recommended to keep the DL-HD70LS receiver near the display input as it is not recommended that an active HDMI cable be used on the HDMI output on the HD70LS receiver.
  • Page 9: Hdbaset Connection

    DL-HD70LS Owners Manual HDBaseT Connection Connect one end of a Category cable to the DL-HD70LS transmitter labeled TWISTED PAIR, then connect the other end of the Category cable to the DL-HD70LS receiver labeled TWISTED PAIR Twisted Pair Wiring TIA/EIA-568B Use TIA/EIA-568B wiring for Category 6...
  • Page 10: Connecting Ir Control

    Attach the IR emitter to the IR receiver of the source device, insert the TS 3.5 mm plug of the emitter to the IR OUT port of the DL-HD70LS transmitter. Insert the TS 3.5 mm plug of the IR receiver (eye) to the IR IN port of the DL-HD70LS receiver.
  • Page 11: Apply Power

    DL-HD70LS Owners Manual Apply Power Connect the included power supply to the transmitter or receiver and lock the power supply to the power connector by twisting the locking collar clockwise. It is not required that both the transmitter and receiver be...
  • Page 12: Application Diagrams

    DL-HD70LS Owners Manual Application Diagrams HDMI Extension / Bi-Directional IR Control Source Device IR Emitter (2) HDMI CATx IR Eye (1) Power Outlet 12V DC Link HDCP HDMI IN IR IN IR OUT DL-HD70LS TRANSMITTER FRONT DL-HD70LS TRANSMITTER BACK DL-HD70LS RECEIVER FRONT...
  • Page 13: Hdmi Extension / Control System Ir Control

    DL-HD70LS Owners Manual HDMI Extension / Control System IR Control Control System / Switcher HDMI CATx IR-AC CABLE (sold seperately) Power Outlet 12V DC Link HDCP HDMI IN IR IN IR OUT DL-HD70LS TRANSMITTER FRONT DL-HD70LS TRANSMITTER BACK DL-HD70LS RECEIVER FRONT...
  • Page 14: Technical Specifications

    DL-HD70LS Owners Manual Technical Specifications Supported Audio and Video Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
  • Page 15 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.libav.com is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
