DL-1H1V1U-WP-W Owners
Manual
Rev 180227
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80918
Fax: 719-260-0075

Advertisement

Table of Contents
loading

Summary of Contents for DigitaLinx DL-1H1V1U-WP-W

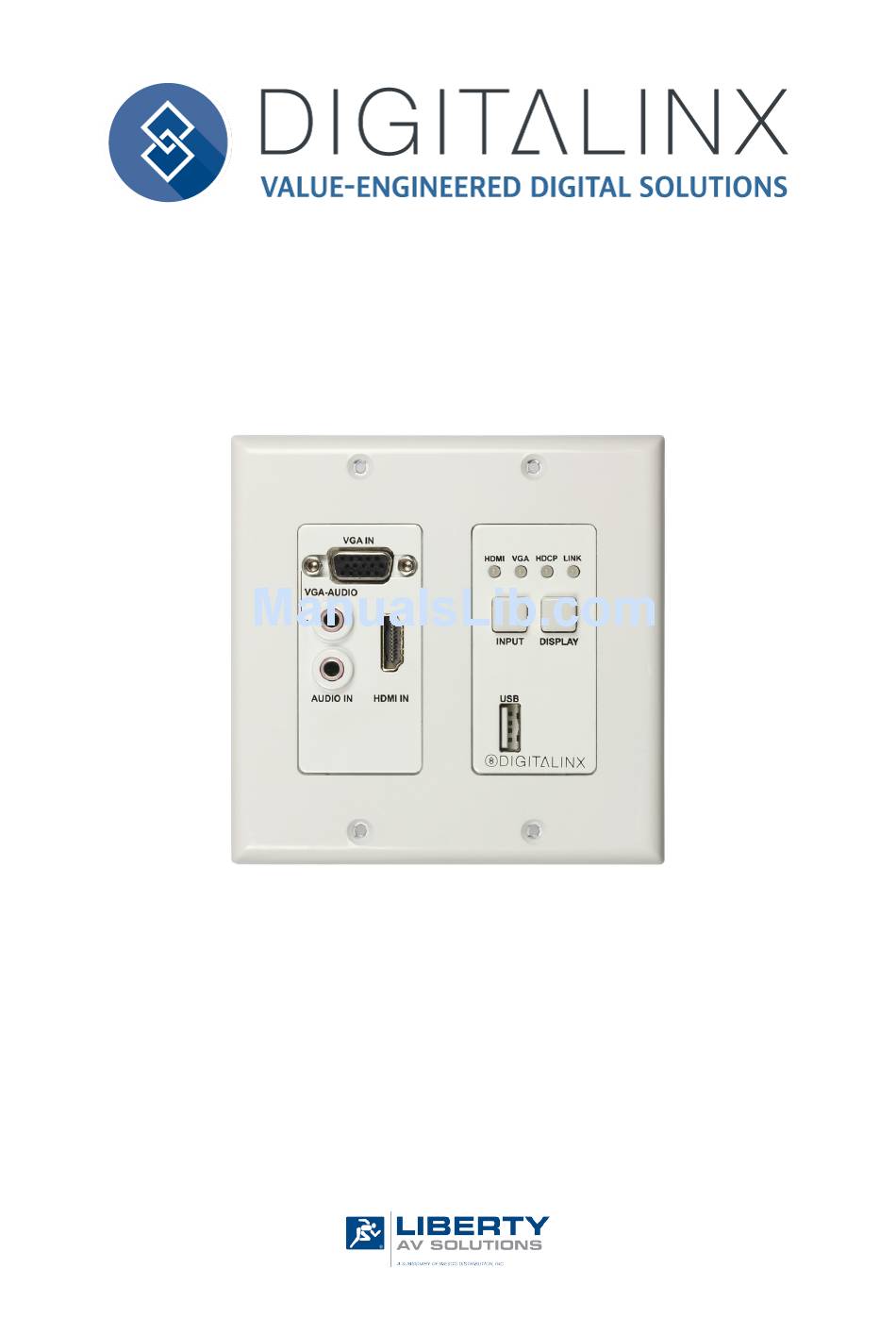

  • Page 1 DL-1H1V1U-WP-W Owners Manual Rev 180227 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80918 Fax: 719-260-0075...
  • Page 2 DL-1H1V1U-WP-W Owners Manual...
  • Page 3: Important Safety Instructions

    DL-1H1V1U-WP-W Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 4: Table Of Contents

    DL-1H1V1U-WP-W Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panel ���������������������������������������������������������������������������������������������������������������������������������� Transmitter View ������������������������������������������������������������������������������������������������������������������������������������������� Transmitter View (continued) ������������������������������������������������������������������������������������������������������������������������ Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connect HDBaseT Link ���������������������������������������������������������������������������������������������������������������������������������� HDBaseT Connection ..........................Connecting A/V Sources ��������������������������������������������������������������������������������������������������������������������������������...
  • Page 5: Product Overview

    HDBaseT receiver side. With 48V integrated PoH, the DL-1H1V1U-WP-W can be powered via HDBaseT receiver with a PSE module or the wall plate can be powered by a local power supply.
  • Page 6: Front And Rear Panel

    DL-1H1V1U-WP-W Owners Manual Front and Rear Panel Transmitter View VGA Input VGA Audio Input Pass-through Audio Input HDMI Input HDMI LED • When ON; HDMI signal is being transmitted • When OFF; No HDMI signal is being transmitted or signal is unstable VGA LED •...
  • Page 7: Transmitter View (Continued)

    DL-1H1V1U-WP-W Owners Manual Transmitter View (continued) 10. Input Selection Button 11. Display On/Off Button • Display ON; Short press to power on display immediately • Display OFF; Press and hold for 3 seconds to power display off 12. USB A Input 13.
  • Page 8: Installation Instructions

    Connect display Connect audio (optional) Connect and configure control (optional) Apply power Connect HDBaseT Link HDBaseT Connection Connect a category cable from the DL-1H1V1U-WP-W HDBaseT output to the DL-HD2-RX receivers HDBaseT input. TIA/EIA-568B Twisted Pair Wiring Pin 1 Orange/White Pin 2...
  • Page 9: Connecting A/V Sources

    DL-1H1V1U-WP-W Owners Manual Connecting A/V Sources HDMI Input Connect an HDMI source device to the HDMI input using HDMI cables that are less than or equal to 5 meters in length. For source devices that are further away, an extension device will be required to complete the connection.
  • Page 10: Connecting Audio

    DL-1H1V1U-WP-W Owners Manual Connecting Audio Audio Input Connect an audio source to the transmitters audio input using a 3.5mm audio cable. The DL-1H1V1U-WP-W supports a 3.5mm stereo unbalanced input Audio Output (Receiver) Connect an audio amplifier to the receivers audio output using a 3.5mm audio cable. The DL-HD2-RX supports a 3.5mm stereo unbalanced output...
  • Page 11: Application Diagram

    DL-1H1V1U-WP-W Owners Manual Application Diagram Laptop DL-1H1V1U-WP-W Document Camera HDMI CATx AUDIO Audio Source RS232 up to 100m / 330’ DL-HD2WP-RX Interactive Projector Audio Amp...
  • Page 12: Rs232 / Cec Control Configuration

    RS232 / CEC Control Configuration To configure control so a connected display can be controlled by the wall plate, connect the DL-1H1V1U-WP-W USB service port to a local computer using a micro USB to USB A cable. Use a RS232 scripting tool like Putty or Docklight to issue the commands in this guide to set the CEC and RS232 settings according to the displays manufacturers instructions.
  • Page 13: Cec Setup And Control

    CEC Setup and Control A CEC enabled displays ON and OFF status can be controlled by the DL-1H1V1U-WP-W via HDMI from the DL- HD2-RX by pressing the DISPLAY button on the DL-1H1V1U-WP-W. By default the CEC control option is always on, simply turn the CEC option ON in the displays settings to use this control capability.
  • Page 14: Rs232 Control And Configuration

    DL-1H1V1U-WP-W Owners Manual RS232 Control and Configuration An RS232 enabled displays ON and OFF status can be controlled by the DL-1H1V1U-WP-W via RS232 from the DL-HD2-RX by pressing the DISPLAY button on the DL-1H1V1U-WP-W. To turn the display ON using RS232, simply quick press the DISPLAY button on the DL-1H1V1U-WP-W; to turn display OFF simply long press the DISPLAY button on the DL-1H1V1U-WP-W for 3-5 seconds.
  • Page 15 DL-1H1V1U-WP-W Owners Manual RS232 Control and Configuration..continued Descriptio Command Example SET UART_B {b} Command: SET UART_B 9600<CR><LF> Set RS232 Port Baud Rate {b} = [9600] Return: UART_B 9600 <CR><LF> [19200] [38400] [57600] [115200] GET UART_B Command: GET UART_B<CR><LF> Query RS232 Port Baud Rate Return: UART_B 9600 <CR><LF>...
  • Page 16: Usb Mode Configuration

    String Return: UART_STR poweron 1 xxxx<CR><LF> USB Mode Configuration The USB mode on the DL-1H1V1U-WP-W can be defined to operate in a host or client (device) mode. Use the commands below to adjust the wall plates USB mode Description Command...
  • Page 17: System / Factory Default

    DL-1H1V1U-WP-W Owners Manual System / Factory Default Description Command Response GET SW_VERSION Command: GET SW_VERSION<CR><LF> Query Device Version Return: HDBaseT2.0 Wall Plate V1.8 <CR><LF> RESET Command: RESET<CR><LF> Factory Reset Return: RESET<CR><LF>...
  • Page 18: Technical Specifications

    DL-1H1V1U-WP-W Owners Manual Technical Specifications Video Video Inputs (1) HDMI; (1) VGA Video Input Connector (1) HDMI type A; (1) VGA female 15 pin Input Video Signal HDMI, VGA Output Video Signal HDBaseT 2.0 HDMI: 4096 x 2160@24/30/60 (YUV4:2:0); 3840 x 2160@24/30/60 (YUV4:2:0);...
  • Page 19 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.intelix.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075...
