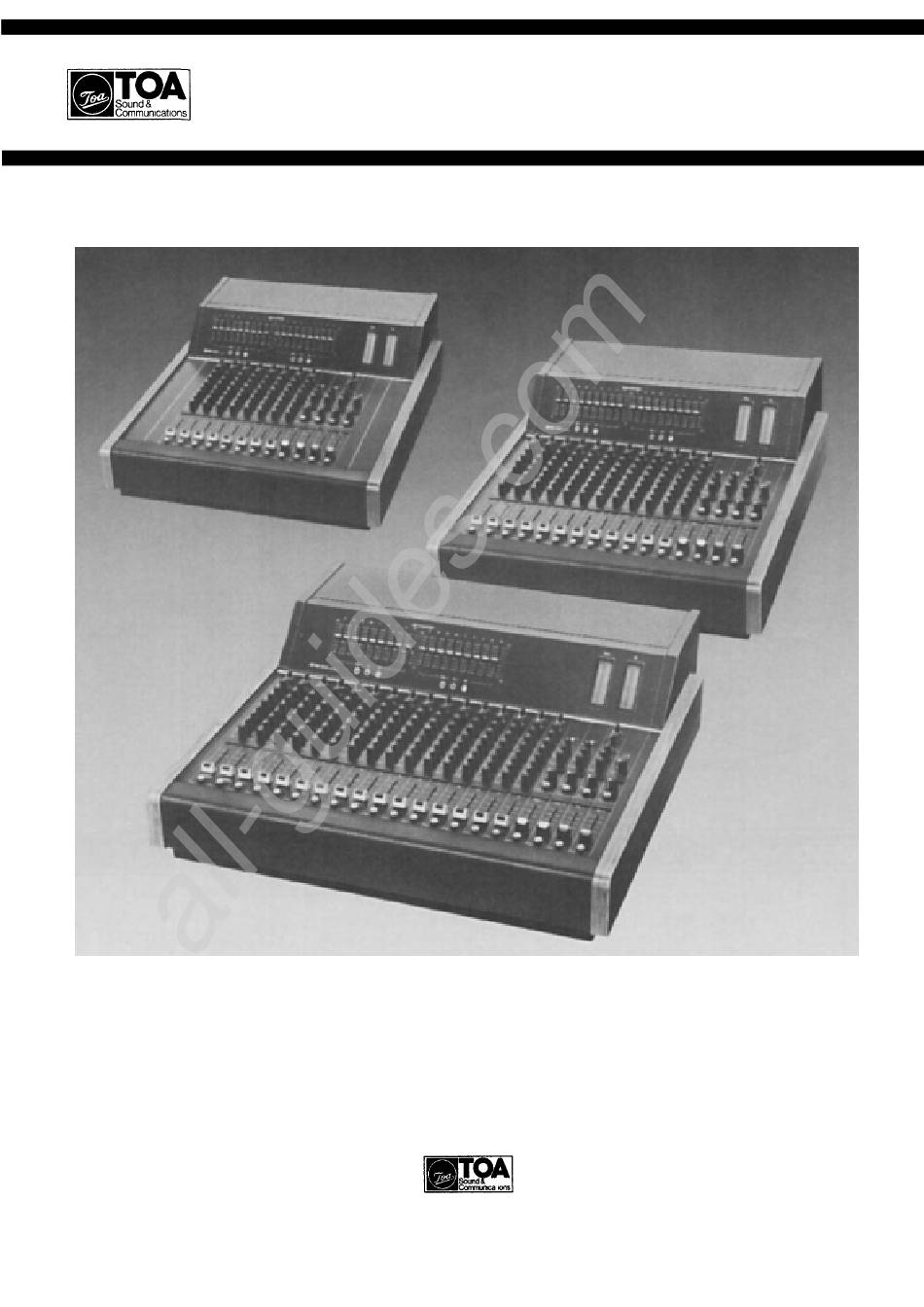

- Page 1 All manuals and user guides at all-guides.com Operating Instruction Manual TOA MIXING CONSOLE Model RX-208, RX-212, RX-216 RX-208 RX-212 RX-216 TOA ELECTRIC CO, LTD KOBE, JAPAN...
-
Page 2: Table Of Contents
Rear Panel (RX-208) ........ -
Page 3: General Description
All manuals and user guides at all-guides.com General Description The RX-208, 212 and 216, are mixing consoles with 8, 12 and 16 inputs respectively, 2 program outputs, 2 foldback outputs, and 1 echo output. Each input channel and line output has a balanced, low impedance, transformer-isolated, XLR connector, and an unbalanced, 1/4"... -
Page 4: Front Panel, Input Section
All manuals and user guides at all-guides.com Front Panel, Input Section Peak Indicator The peak indicator lights if clipping occurs in the pre-amp stage of the corresponding input channel. When the light comes on, an adjustment must be made with the Input Level Selector Switch and/or the Input Trim control. -
Page 5: Front Panel, Output Section
All manuals and user guides at all-guides.com Front Panel, Output Section FB 1 Volume Control (FB1) Echo Time Control (T1 DELAY) Regeneration Control (T2 REGEN) This control attenuates the echo- This control permits continuously The T2 control is provided to adjust return signals from the built-in echo variable adjustment of the echo time the echo pattern (number of repeats) -
Page 6: Meter Panel
If the equalizer is not being used, the "OFF" button should be depressed. RX-216 *The RX-216 is the same in its meter panel functions as the FB 2 Output Meter RX-208 and RX-212. FB 1 Output Meter Graphic Equalizer (EQUALIZATION) Program R Output Meter... -
Page 7: Rear Panel (Rx-208)
All manuals and user guides at all-guides.com Rear Panel (RX-208) RX-208 Accessory Send/Receive Jacks (ACCESSORY 1~8) These jacks are provided as patching points Program Line Output Connectors and Jacks for inserting signal processing equipment (LINE OUT, PGM L, R) such as compressor/limiters, noise gate, etc. -
Page 8: Rear Panel (Rx-212, Rx-216)
All manuals and user guides at all-guides.com Rear Panel (RX-212, RX-216) The RX-212 and RX-216 are the same as the RX-208 in functions, except that the RX-212 has 12 input channels and the RX-216 has 16 input channels. RX-212 Accessory Send/Receive Jacks... -
Page 9: Connection Examples
Dual Power Dual Power Amplifier Amplifier Wireless Tuner Keyboard RX-208 Unbalanced input jacks ac- cept high impedance sources of from —30dB to 0dB nominal level. The in- put level switch on the front panel must be set at the "UN-BAL"... -
Page 10: Connection Examples
All manuals and user guides at all-guides.com Connection Example Main Speaker Systems (Right) Main Speaker Systems (Left) 4-way multiple driving 4-way multiple driving STAGE LAYOUT EXAMPLE RX-216 RX-212 - 9 - - 10 -... -
Page 11: How To Use "Channel Patching" Accessory Jack
All manuals and user guides at all-guides.com How to use ''channel patching" accessory jack The accessory jack (Tip, Ring, Sleeve) is provided on each input channel to allow insertion of outboard signal processing devices (example: compressor/limiters, noise gate, equalizer, etc.) into the signal path. -
Page 12: How To Get A Good Mixing
If the impedances and levels do not match, mixing will be very difficult and the S/N ratio will also be adversely affected. • Each input channel of the RX-208, RX-212 and RX-216 is provided with a Trim control. Thorough understanding of the function of a Trim control will make mixing easier. TRIM •... -
Page 13: Channel And Graphic Equalizers
All manuals and user guides at all-guides.com Channel and Graphic Equalizers Equalization for music The Graphic Equalizer is designed not only for use in preventing feedback and equalizing uneven room frequency response to be flat, but also for equalizing frequency response to your tastes and producing favourable sound for you. -
Page 14: General Specification
(FB Fader and one FB control at nominal level) AC Mains 50 Hz or 60 Hz Power Consumption Crosstalk -60dB at 1kHz, input to output RX-208 RX-212 Maximum Voltage Gain RX-216 84dB CH IN to PGM LINE OUT 84dB CH IN to FB LINE OUT... -
Page 15: Input & Output Specifications
****Stereo phone jack is wired: Tip=Left, Ring=Right and Sleave=Common Note: As is described in the beginning of the operation manual, the XLR type connectors of the RX-208, RX-212 and RX-216 are wired as follows. Pin No. 1 — Ground Pin No. 2 — Cold (Low) Pin No. -
Page 16: Characteristic Diagrams
All manuals and user guides at all-guides.com Characteristic Diagrams Frequency Response Input EQ Characteristics Graphic EQ Characteristics - 16 -... - Page 17 All manuals and user guides at all-guides.com - 17 -...
-
Page 18: Level Diagram
All manuals and user guides at all-guides.com Level Diagram Dimensional Diagrams RX-208, RX-212 RX-216 The above dimensional diagram is for the RX-212. Overall dimensional of the RX-208 is the same as the RX-212. - 18 -... - Page 19 All manuals and user guides at all-guides.com TOA ELECTRIC CO., LTD. KOBE, JAPAN Printed in Japan 133-02-573-2A...
