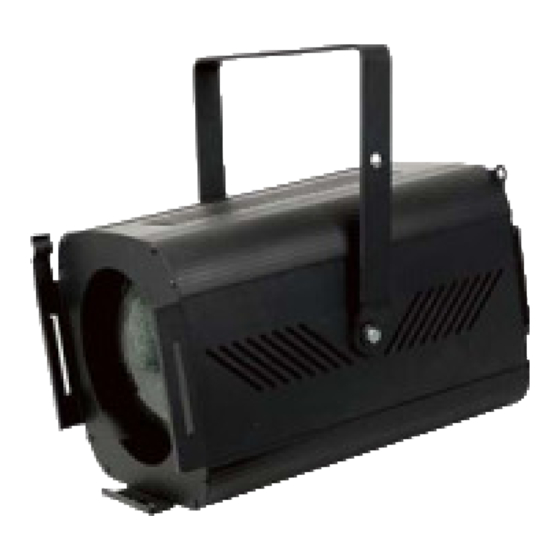

Elation TSP 300/500 Manual

Theater Spots
®
®
Junostraat 2, 6468EW Kerkrade
The Netherlands
www.americandj.eu
info@americandj.eu
THEATER SPOT
300/500; 650/1000; 2000
For your own safety, please
read this user manual carefully
before you start-up and use.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION! Be careful with your operations. With a dangerous voltage you may suffer a dangerous
electric shock when touching the wires! Make sure that the available voltage is not higher than stated
in this manual.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the device
switched off until it has reached room temperature.
This device falls under protection-class I, therefore it is essential that the blue conductor gets
connected to earth. The electric connection must be carried out by a qualified employee.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and
the power-cord from time to time.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such
an extent that their effectiveness is impaired, for example by cracks or deep scratches.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord.
DANGER OF BURNING! Never touch the device during the operation! The housing heats up to the
housing temperature T .
surface
Don't switch the device on and off in short intervals as this would reduce the lamp's life.
HEALTH HAZARD! Never look directly into the light source, as sensitive persons may suffer an
epileptic shock (especially meant for epileptics)!
Keep away children and amateurs from the device!
There are no serviceable parts inside the device. Maintenance and service operations are only to be
carried out by authorized dealers.
This device is a lighting effect for creating decorative effects. this fixture is only allowed to be operated
with an alternation current of max. 230V/50Hz 500W and was designed for indoor use only.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around. You endanger your own and the safety
of others!
The symbol determines the minimum distance from lighted objects. The minimum distance
M
between light-output and the illuminated surface must be more than 1 meters.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the
fixture. Always fix the fixture with an appropriate safety-rope.
The maximum ambient temperature T must never be exceeded.
a
Operate the device only after having become familiar with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation!
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this instruction, the product
may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to
dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
1,Handle
2,Bracket
3,Bracket locking screw
4,Plug
5,Power socket
6,Reflector
7,Lamp
8,Lamp socket
9,Lens
10,Handle screw
11,Colour frame
