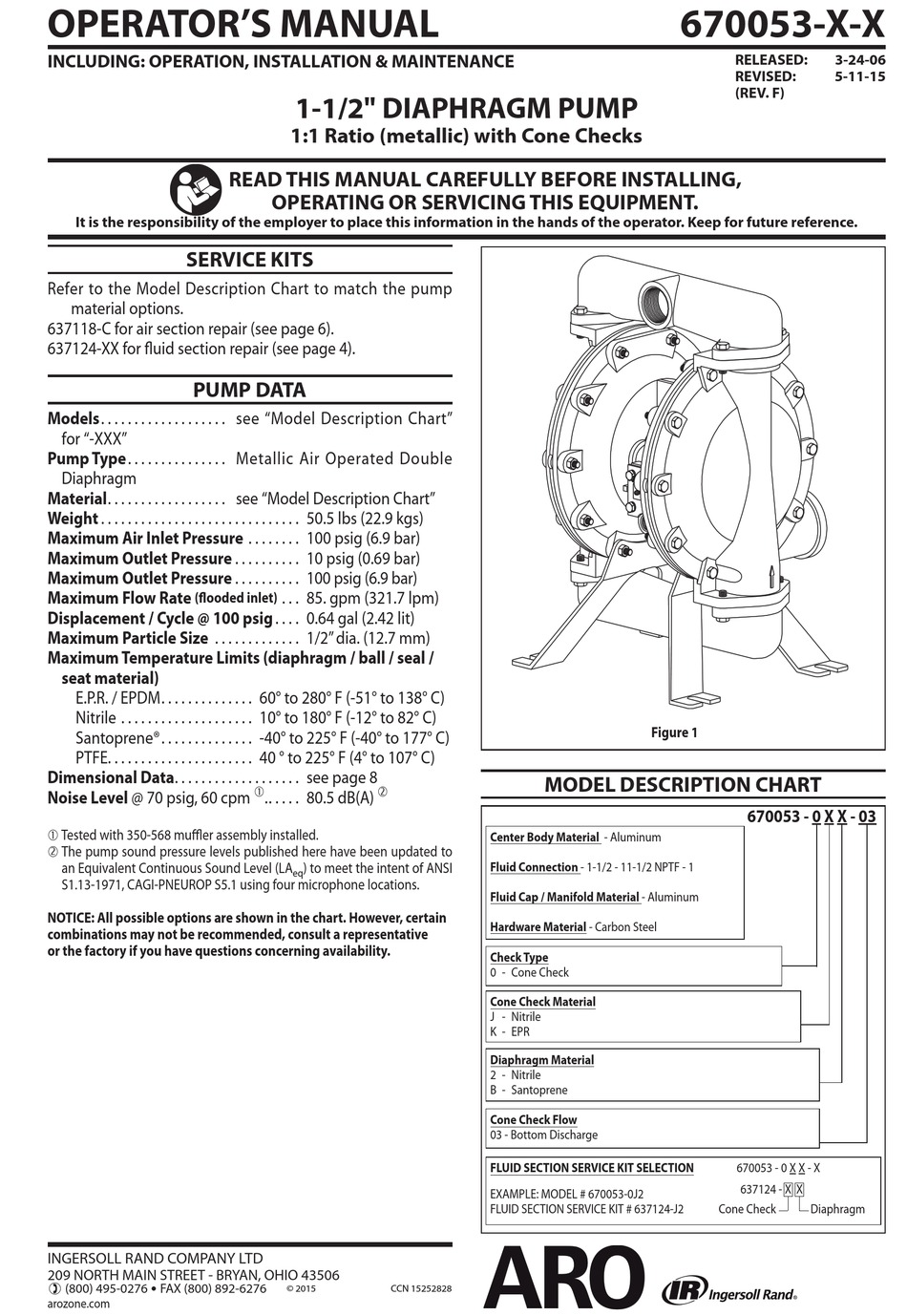

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to the Model Description Chart to match the pump
material options.
637118-C for air section repair (see page 6).
637124-XX for fluid section repair (see page 4).
PUMP DATA
Models . . . . . . . . . . . . . . . . . . . see "Model Description Chart"
for "-XXX"
Pump Type . . . . . . . . . . . . . . . Metallic Air Operated Double
Diaphragm
Material . . . . . . . . . . . . . . . . . . see "Model Description Chart"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.5 lbs (22.9 kgs)
Maximum Air Inlet Pressure . . . . . . . . 100 psig (6.9 bar)
Maximum Outlet Pressure . . . . . . . . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 100 psig (6.9 bar)
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 psig . . . . 0.64 gal (2.42 lit)
Maximum Particle Size . . . . . . . . . . . . . 1/2" dia. (12.7 mm)
Maximum Temperature Limits (diaphragm / ball / seal /
seat material)
E.P.R. / EPDM . . . . . . . . . . . . . . 60° to 280° F (-51° to 138° C)
Nitrile . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 177° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40 ° to 225° F (4° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 psig, 60 cpm
 Tested with 350-568 muffler assembly installed.
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart. However, certain
combinations may not be recommended, consult a representative
or the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET - BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1-1/2" DIAPHRAGM PUMP
1:1 Ratio (metallic) with Cone Checks
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . 85. gpm (321.7 lpm)
. . . . . . 80.5 dB(A)
) to meet the intent of ANSI
eq
© 2015
CCN 15252828
Figure 1
MODEL DESCRIPTION CHART
Center Body Material - Aluminum
Fluid Connection - 1-1/2 - 11-1/2 NPTF - 1
Fluid Cap / Manifold Material - Aluminum
Hardware Material - Carbon Steel
Check Type
0 - Cone Check
Cone Check Material
J - Nitrile
K - EPR
Diaphragm Material
2 - Nitrile
B - Santoprene
Cone Check Flow
03 - Bottom Discharge
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # 670053-0J2
FLUID SECTION SERVICE KIT # 637124-J2
670053-X-X
RELEASED:
3-24-06
REVISED:
5-11-15
(REV. F)
670053 - 0 X X - 03
670053 - 0 X X - X
637124 - X X
Cone Check
Diaphragm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 670053 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingersoll-Rand 670053 Series

  • Page 1 670053 - 0 X X - X 637124 - X X EXAMPLE: MODEL # 670053-0J2 FLUID SECTION SERVICE KIT # 637124-J2 Cone Check Diaphragm INGERSOLL RAND COMPANY LTD 209 NORTH MAIN STREET - BRYAN, OHIO 43506  (800) 495-0276  FAX (800) 892-6276 ©...
  • Page 2: Operating And Safety Precautions

    OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. HAZARDOUS MATERIALS. Can cause serious WARNING EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS injury or property damage. Do not attempt to return STATIC SPARK HAZARDOUS PRESSURE a pump to the factory or service center that contains hazardous material. Safe handling practices must comply with local and national laws and safety code EXCESSIVE AIR PRESSURE. Can cause per- WARNING requirements. sonal injury, pump damage or property damage. Obtain Material Safety Data Sheets on all materials  Do not exceed the maximum inlet air pressure as  from the supplier for proper handling instructions. stated on the pump model plate. EXPLOSION HAZARD. Models containing Be sure material hoses and other components are able WARNING  aluminum parts cannot be used with 1,1,1-trichlo- to withstand fluid pressures developed by this pump. roethane, methylene chloride or other halogenated Check all hoses for damage or wear. Be certain dispens- hydrocarbon solvents which may react and explode. ing device is clean and in proper working condition. Check pump motor section, fluid caps, manifolds and  STATIC SPARK. Can cause explosion result- WARNING all wetted parts to assure compatibility before using ing in severe injury or death. Ground pump and with solvents of this type.
  • Page 3: General Description

    GENERAL DESCRIPTION MAINTENANCE The ARO diaphragm pump offers high volume delivery even Refer to the part views and descriptions as provided on at low air pressure and a broad range of material compat- pages 4 through 7 for parts identification and service kit in- ibility options available.
  • Page 4 PARTS LIST / 670053-X-X FLUID SECTION  KITS INCLUDE: CONE CHECKS (See Cone Check Option, refer to -XX in chart below), DIAPHRAGMS (See Diaphragm Option, refer to -XX in chart (below), 93706-1 Key-Lube grease packet, plus items: 2, 3, 9 and 19. MATERIAL CODE CONE CHECK OPTIONS 670053-0XX [A] = Aluminum [B] = Nitrile [C] = Carbon Steel...
  • Page 5 PARTS LIST / 670053-X-X FLUID SECTION FOR THE AIR MOTOR SECTION SEE PAGES 6 & 7 26 � � 19 � 29 � � 2 � 3 � 670053-0XX- 670053-0XX 19 � 59 � 27 � � 3 14 � � 670053-0XX 26 � � 19 �...
  • Page 6: Pilot Valve Reassembly

    PARTS LIST / 670053-X-X AIR SECTION  Indicates parts included in 637118-C Air Section Service Kit. SERVICE KIT NOTE: Service Kit 637118-C is a general repair kit for all 1” and larger ARO diaphragm pump air motors. It contains extra “O” Rings and extra parts that may not be needed to service this model. Item Description (Qty) Part No. [Mtl] Item Description (Qty) Part No. [Mtl] (size) (size) 101 Motor Body (1) 94744  117 Gasket (1) 92004 [B/Ny]  102 “O” Ring (2) Y325-24 118 Pilot Rod (1) 93309-2 (1/16” x 1-1/4” o.d.)  103 Sleeve (1) 94528 ...
  • Page 7 PARTS LIST / 650718-C AIR MOTOR SECTION IMPORTANT BE CERTAIN TO ORIENT (115) SPACER LEGS AWAY FROM BLOCKING INTERNAL PORTS WHEN REASSEMBLING AIR SECTION. 105 � � � 114 � 113 MAJOR VALVE See cross section detail gure 3. � 195 195 � � 123 102 � 103 � � 198 �� 105 126 � PILOT VALVE 123 � 118 �...
  • Page 8: Troubleshooting

    TROUBLE SHOOTING Product discharged from exhaust outlet. Low output volume, erratic flow or no flow. Check for diaphragm rupture. Check air supply.   Check tightness of (14) diaphragm screw. Check for plugged outlet hose.   Check for kinked (restrictive) outlet material hose.  Air bubbles in product discharge. Check for kinked (restrictive) or collapsed inlet material ...
