MCP
Pump for Pressure-Side Cleaners
or Water Boosting Applications
Models:
MCP 4
MCP 5
GB:
Use and maintenance manual
F:
Manuel d'utilisation et d'entretien
E:
Manual de uso y manutencion
D:
Bedienungs- und Wartungsanleitung
I :
Manuale di uso e manutenzione
NL:
Handleiding voor gebruik en onderhound
Pag. 2
Pag. 8
Pag 14
Pag 20
Pag 16
Pag 32
www.nocchi.it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pentair Nocchi MCP 4
Summary of Contents for Pentair Nocchi MCP 4

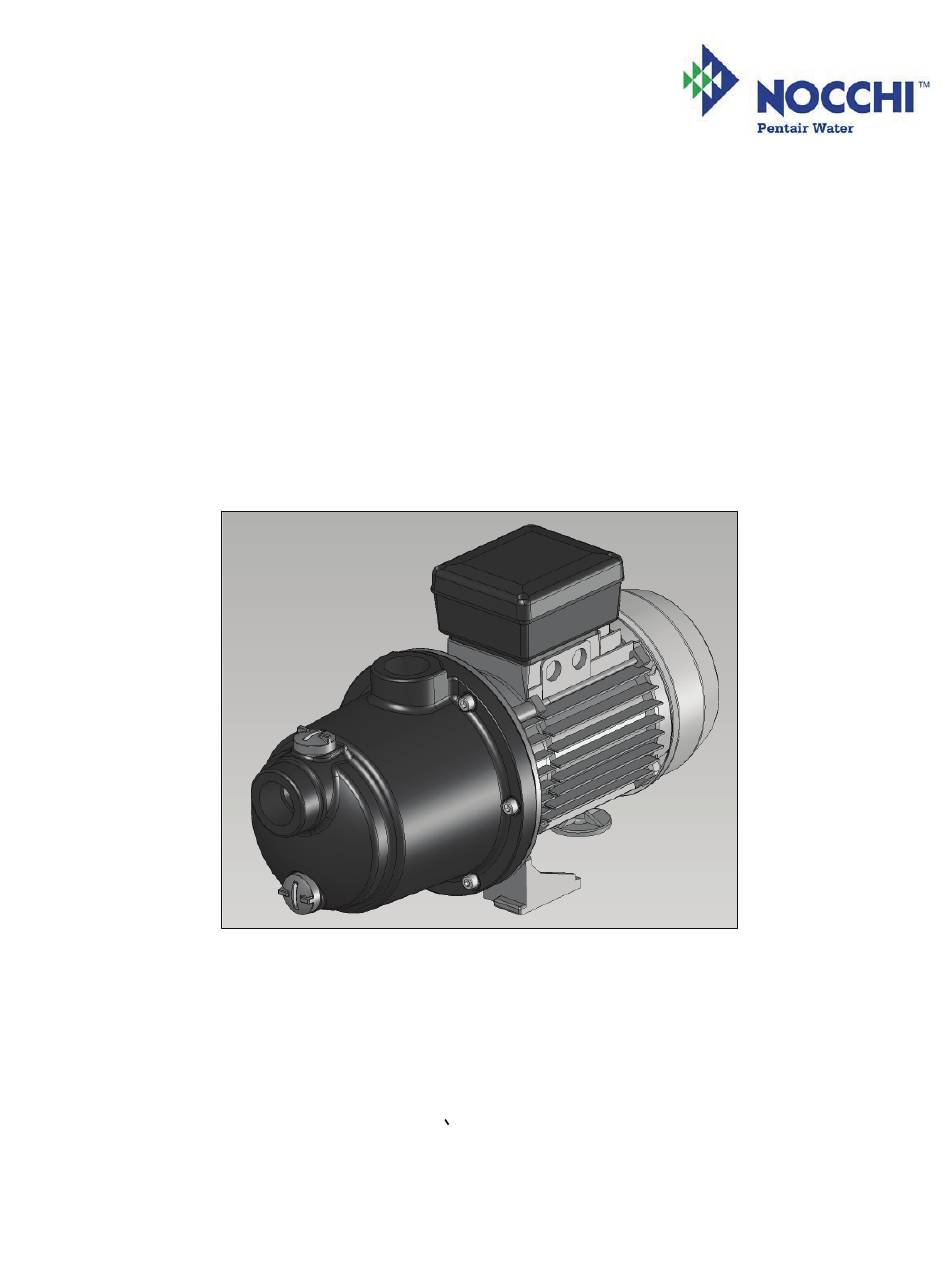

- Page 1 Pump for Pressure-Side Cleaners or Water Boosting Applications Models: MCP 4 MCP 5 Use and maintenance manual Pag. 2 Manuel d’utilisation et d’entretien Pag. 8 Manual de uso y manutencion Pag 14 Bedienungs- und Wartungsanleitung Pag 20 Manuale di uso e manutenzione Pag 16 Handleiding voor gebruik en onderhound Pag 32...
- Page 2 DICHIARAZIONE CE DI CONFORMITÀ EC DECLARATION OF CONFORMITY La Ditta Pentair International Sarl dichiara sotto la propria re- The company Pentair International Sarl declares, under its own sponsabilità che i prodotti sotto indicati sono conformi ai Requi- responsibility, that the below mentioned products are compliant...
-
Page 3: Table Of Contents
b) Specialists are defined as persons, who on Contents the basis of their professional training, skills and experience, are able to assess the work in hand and recognize any possible dangers. They are Introduction……......…. Page 2 also aware of the applicable conditions. These Safety….......... - Page 4 2.1 Pictograms The product must not be used for any other purpose than that specified The following designations and danger symbols manufacturer. This may cause unforeseeable are used in these operating instructions. risks. Local work and safety regulations and laws This symbol indicates possible danger must be followed at all times.
-
Page 5: Proper Use
2.3.2 Other Safety Components 3.1 Improper Use Regulations The product may cause dangers if used Work on electrical components must be carried improperly or not for their intended purpose. out by a qualified electrician in accordance with Under no circumstances must the pump be accepted technical practices. -
Page 6: Installation
Offer voltage and frequency values 5. Installation compliant with the values indicated on the motor nameplate. This section describes the procedure for the Offer a power not below the value installation and starting of the pump. It describes indicated on the motor nameplate. - Page 7 5.4 Plumbing Connections 5.6 Connection to the mains Care must be taken to ensure that no leaks occur following installation of connections The installer will have to make sure that the electric supply system has If the inlet and outlet pipes are connected an adequate grounding compliant directly to the pump, only use Teflon sealing Danger...
-
Page 8: Operation
Loosen the screws that fix the cover to the The pump starts working after switching on. The terminal block. suction action time depends on the suction height and the length of the suction line. Insert the supply cable into the cable holder. If the pump does not work, check that all shut- Connect the phases and ground to the off valves are open and that there are no leaks... -
Page 9: Maintenance/Repair
Noisy Pump: 8.1 Maintenance Maintenance of the product should be carried out Air leak in Suction line only by specially qualified personnel. Debris in plumbing lines or pump housing Before the starting the pump after extended non- Diameter of suction line is too small use or when restarting in the spring, it is advisable to turn the motor shaft, with the pump Incorrect pump installation... -
Page 10: Technical Data
10 . Technical Data MCP 5 MCP 4 Max Ambient T e mpe rature………… Max Water Temperature……..…….. 0,4% Max Salt content in Water……..pH-R ange………………………….… . 6 Bar Max Operating Pressure………..…. IP44 Protection Type…………………..…. Insulation Class………………..….… 2850 per Me (R PM)….…..Revolutions 75dB(A) Max N oise Level………………….…. - Page 11 MCP 4 - MCP 5 MCP 4 MCP 5 MCP 4 MCP 5 MCP 4 MCP 5...
- Page 12 Este equipo está cubierto con garantía legal según las leyes y normas vigentes a la fecha y en el país de adquisición, con referencia a los daños y defectos de fabricación y / o del material empleado. La garantía se limita a la reparación o a la sustitución, en los Centros de Asistencia autorizados por PENTAIR INTERNATIONAL S.a.r.l., de la bomba o de las partes reconocidas mal funcionantes o defectuosas.
- Page 13 êáé áôÝëåéåò êáôáóêåõÞò êáé / Þ åëáôôþìáôá ôïõ õëéêïý ðïõ ÷ñçóéìïðïéÞèçêå. Ç åããýçóç ðåñéïñßæåôáé óôçí åðéóêåõÞ Þ ôçí áíôéêáôÜóôáóç, óôá åãêåêñéìÝíá ÊÝíôñá ÕðïóôÞñéîçò ôçò PENTAIR INTERNATIONAL S.a.r.l., ôçò áíôëßáò Þ ôùí ôìçìÜôùí ôá ïðïßá åîáñ÷Þò äõóëåéôïõñãïýóáí Þ Þôáí åëáôôùìáôéêÜ.ÓõóôáôéêÜ ìÝñç ðïõ õðüêåéíôáé óå öèïñÜ üðùò, ãéá...
- Page 14 Bu cihaz, satýn alým ükesinde satýþ tarihinde yürürlükteki yasa ve standartlara göre üretim ve/veya malzeme hatalarýndan meydana gelebilecek arýzalara karþý garantilidir. Bu garanti PENTAIR INTERNATIONAL S.a.r.l. yetkili servis merkezlerince pompa veyabunun arýzalý parçalarýn tamiri veya deðiþtirmesi ile sýnýrlýdýr. Örneðin Conta, halka ve sýzdýrmaz conta, pervane ve hidrolik kýsým, membran ve elektrik kablolarý gibi aþýnmaya maruz kalan parçalar normal kullaným sürelerini aþmamak suretiyle garanti kapsamýndadýrlar.
