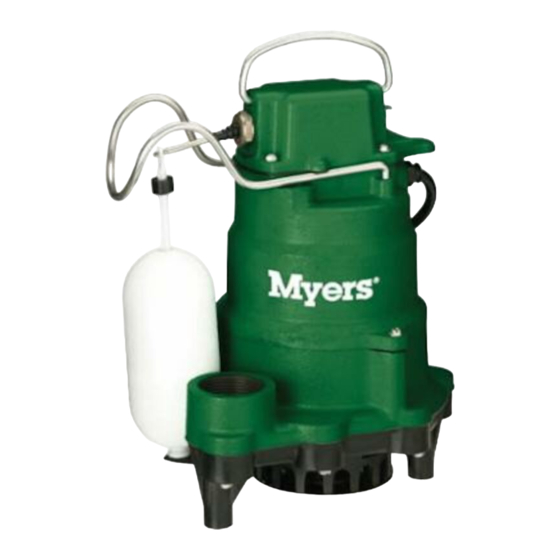

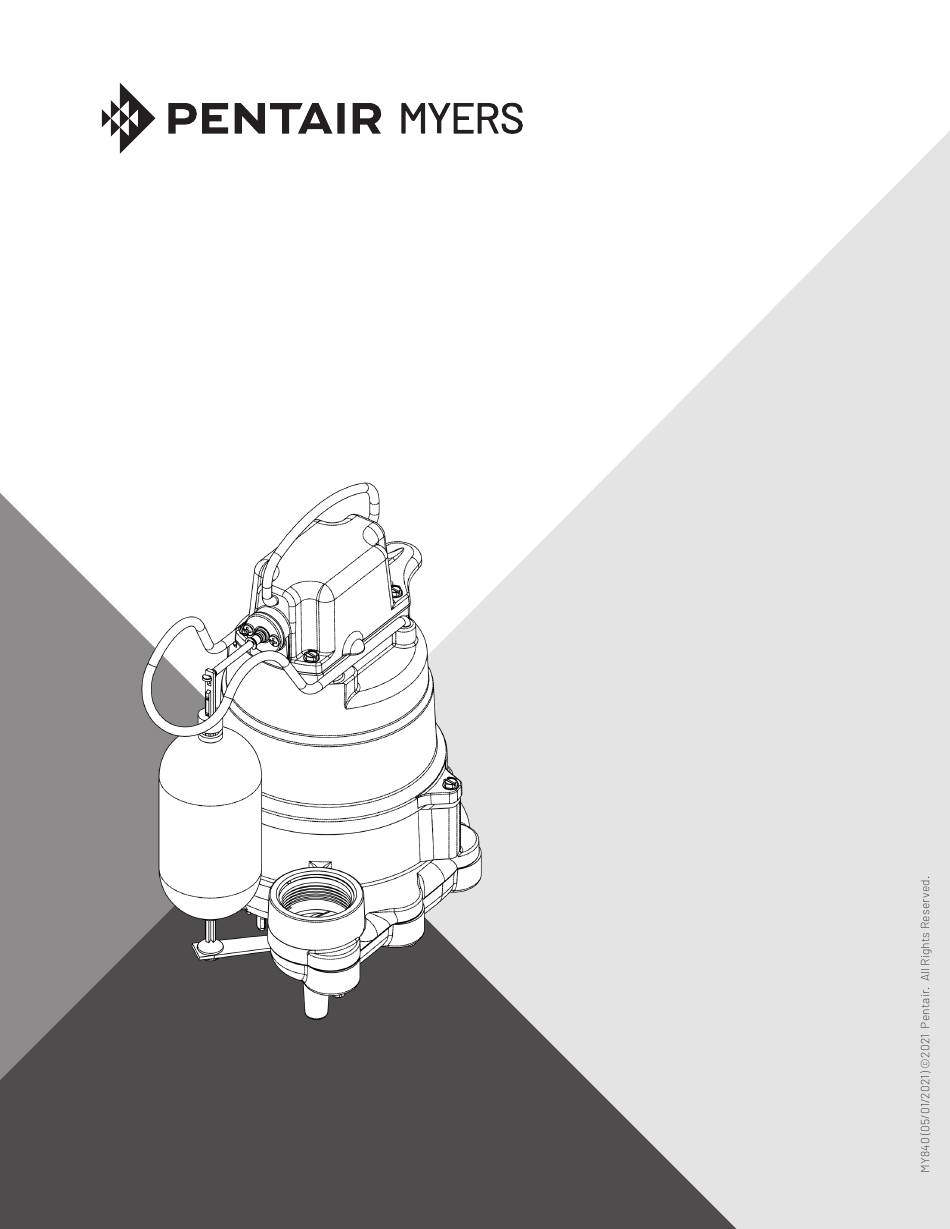

- Page 1 SUBMERSIBLE SUMP/EFFLUENT PUMPS SERIES MCI0 INSTALLATION AND OPERATION MANUAL pentair.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS / SAFETY INTRODUCTION Safety Instructions ....................................3 Installation .......................................4 Repair Parts Index ....................................6 Troubleshooting ......................................7 Warranty ........................................8 MY840 (05/01/2021) -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY SYMBOLS 10. When wiring an electrically driven pump, follow all electrical and safety codes that apply. This is the safety alert symbol. When you see this symbol on your pump or in this manual, look for one of the following signal words and be This equipment is only for use on 115 volt (single phase) and is alert to the potential for personal injury: equipped with an approved 3-conductor cord and 3-prong,... -
Page 4: Installation
INSTALLATION These Submersible Sump Pumps are designed for home sumps. Hazardous voltage. Can shock, burn or kill. The unit is equipped with a 3-prong grounding-type power cord. The pump should always be electrically grounded to a The shaded-pole motor is oil filled and sealed for cooler running. suitable electrical ground such as a grounded water pipe or Upper sleeve/lower ballbearing on the motor shaft never need a properly grounded metallic raceway, or ground wire... - Page 5 INSTALLATION OPERATION / MAINTENANCE AIRLOCKS Risk of electrical shock. Can burn or cause death. When a pump airlocks, it runs but does not move any water. An Do not handle a pump or pump motor with wet hands or when airlock will cause the pump to overheat and fail.
-
Page 6: Repair Parts Index
REPAIR PARTS INDEX REF. NO. DESCRIPTION MCI033 MCI050 Power Cord 10’ PW117-237-TSU PW117-237-TSU Power Cord 20’ PW117-122-TSU PW117-122-TSU Power Cord 30’ PW117-293-TSU PW117-293-TSU MY840 (05/01/2021) -
Page 7: Troubleshooting
TROUBLESHOOTING SYMPTOM PROBABLE CAUSE(S) ACTION Blown fuse. If blown, replace with a fuse of proper size. If the voltage is under the recommended minimum, check the size of the wiring from Low Line Voltage. the main switch on the property. If OK, contact power company or hydro authority. -
Page 8: Warranty
PH: 800-363-7867 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer.
