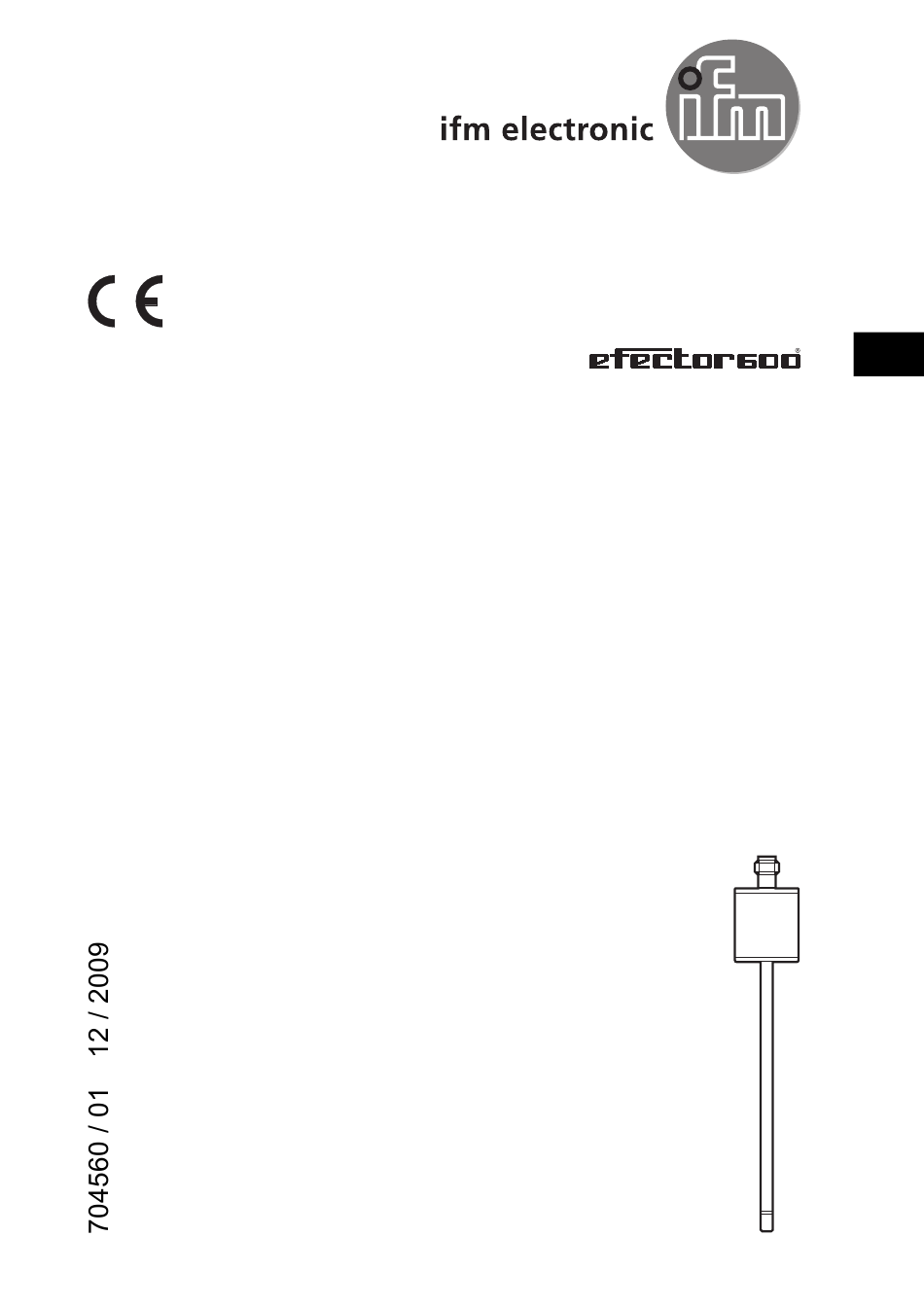

- Page 1 Installation Instructions Temperature transmitter TA3233 TA3237...
-
Page 2: Functions And Features
1 Functions and features The temperature transmitter detects the current system temperature and converts it into an analog output signal (4 ... 20 mA). • Measuring range: TA3233 -17,8...148,9 °C / 0...300 °F TA3237 0...100 °C / 32...212 °F • Measuring element: Pt1000 to DIN EN 60751, class A •... -
Page 3: Electrical Connection
3 Electrical connection The unit must be connected by a suitably qualified electrician. The national and international regulations for the installation of electrical equipment must be observed. ► Disconnect power. ► Connecting the unit as follows: n.c. = not connected Morer information at www.ifm.com...
