Temperature transmitter with display

Advertisement

Quick Links

Operating instructions
Temperature transmitter with display
UK
TDxxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elector 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for IFM Electronic Elector 600

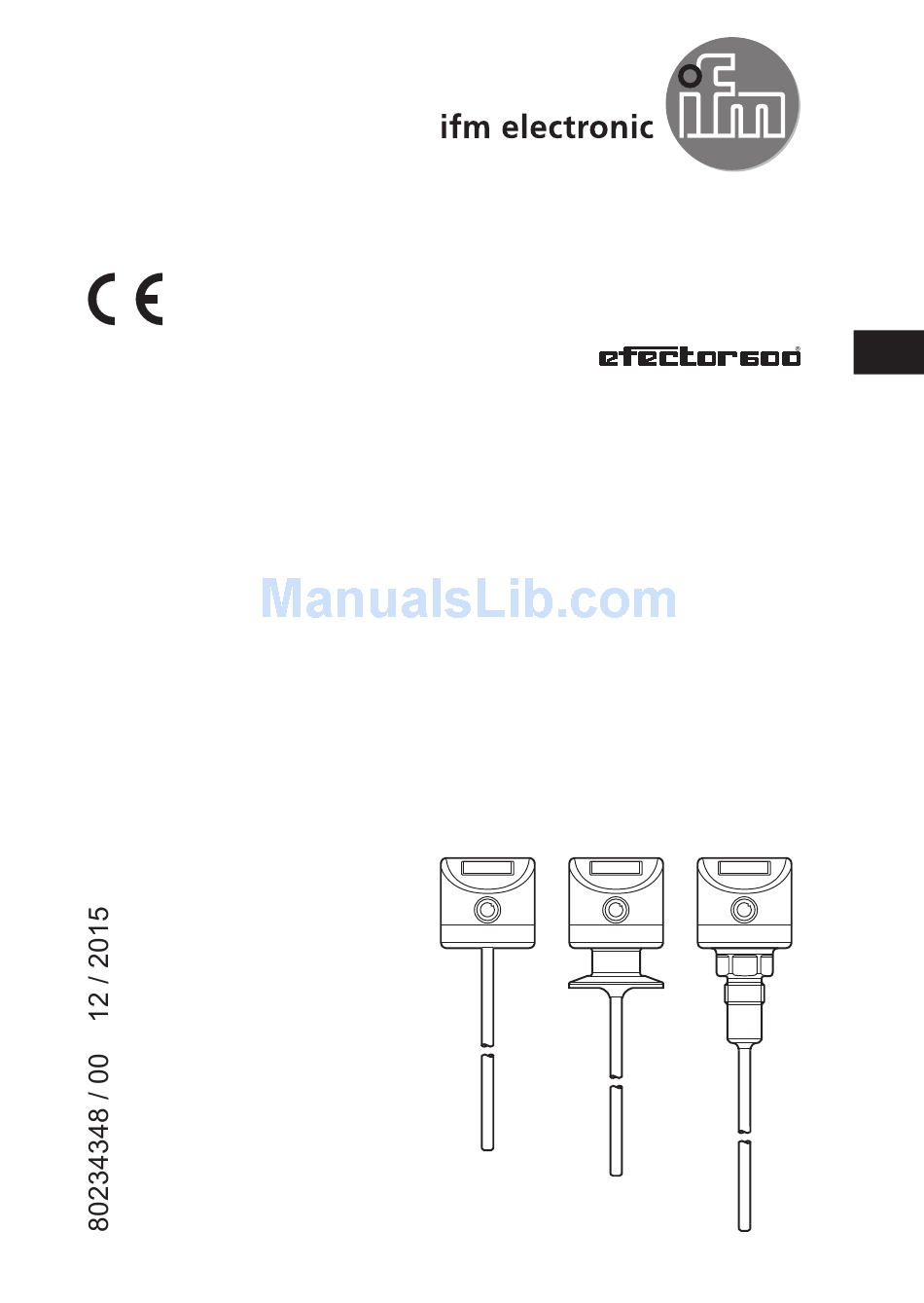

  • Page 1 Operating instructions Temperature transmitter with display TDxxxx...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������3 1�1 Explanation of symbols ����������������������������������������������������������������������������������3 2 Safety instructions �����������������������������������������������������������������������������������������������3 3 Functions and features ����������������������������������������������������������������������������������������3 4 Function ���������������������������������������������������������������������������������������������������������������4 5 Installation������������������������������������������������������������������������������������������������������������5 5�1 Units with G½ sealing cone (type TD25xx) ����������������������������������������������������5 6 Electrical connection ��������������������������������������������������������������������������������������������6 7 Operating and display elements ��������������������������������������������������������������������������7 8 Parameter setting ������������������������������������������������������������������������������������������������7 8�1 IO-Link �����������������������������������������������������������������������������������������������������������7 8�1�1 General information ������������������������������������������������������������������������������7...
  • Page 3: Preliminary Note

    1 Preliminary note 1.1 Explanation of symbols ► Instruction > Reaction, result […] Designation of keys, buttons or indications → Cross-reference Important note Non-compliance can result in malfunction or interference� Information Supplementary note� 2 Safety instructions • Please read this document prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions�...
  • Page 4: Function

    4 Function • The unit converts the measured signal into a temperature-proportional ana- logue signal� Depending on the parameter setting (→ 8) the output signal is at: 4���20 mA with setting [OU] = [I] or 20���4 mA with setting [OU] = [Ineg]� •...
  • Page 5: Installation

    In case of internal fault, the output signal behaves according to the parameter set in [FOU] (3�5 mA or 21�1 mA) → 8 Parameter setting� 5 Installation ► Connect the unit to the process using a fixing element (Triclamp, adapter)� Information about the available adapters at www�ifm�com�...
  • Page 6: Electrical Connection

    6 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to� Voltage supply according to EN 50178, SELV, PELV� ► Disconnect power� ► Connect the unit as follows: IO-Link Operation as 2-wire unit (1): Pin 1...
  • Page 7: Operating And Display Elements

    7 Operating and display elements 1: Current temperature in °C 2: Current temperature in °F 3: 7-segment LED display (4 digits) 8 Parameter setting Using an IO-Link capable parameter setting tool, the following options are avail- able: - Reading current process values� - Reading, changing and saving current parameter settings and transmitting them to other units of the same type�...
  • Page 8: 8�1�3 Parameter Setting Tools

    8.1.3 Parameter setting tools You will find all necessary information about the required IO-Link hardware and software at www�ifm�com/gb/io-link� 8.2 Adjustable parameters Output function: Analogue signal: 4���20 mA [I] or 20���4 mA [Ineg]� Analogue start value for temperature� ASP2 Measured value at which the output signal is 4 mA (20 mA if [OU2] = [Ineg])�...
  • Page 9: 10 Technical Data

    10 Technical data 10.1 Temperature resistance Maximum operation time depending on the medium temperature Further technical data and scale drawing at www�ifm�com� 11 Factory setting Factory setting User setting Factory settings for the parameters ASP2, AEP2 and Uni → technical data sheet at www�ifm�com�...
