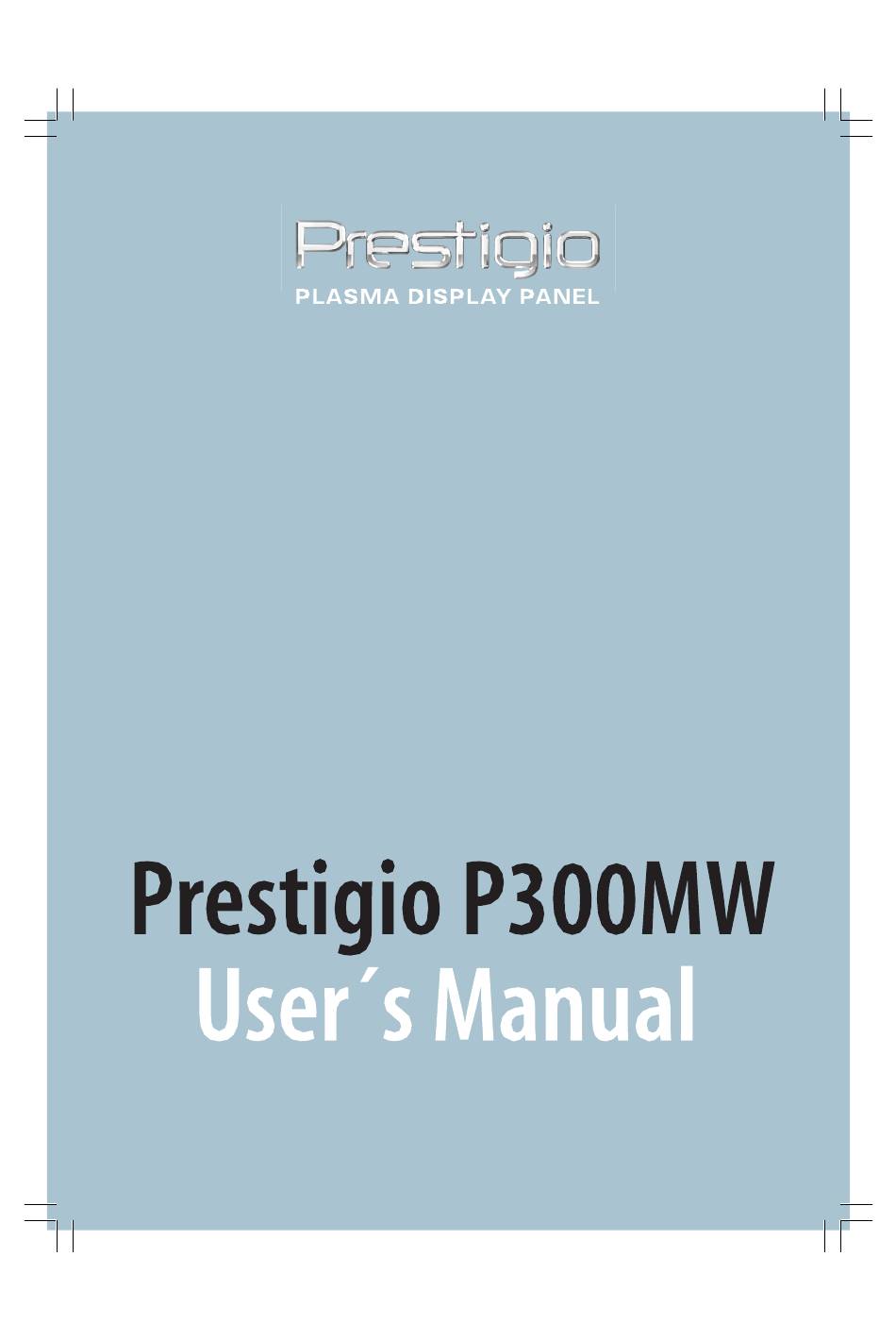

Prestigio P300MW User Manual
  1. Manuals
  2. Brands
  3. Prestigio Manuals
  4. LCD TV
  5. P300MW
  6. User manual
Prestigio P300MW User Manual

Prestigio P300MW User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P300MW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prestigio P300MW

Summary of Contents for Prestigio P300MW

  • Page 2 Please observe all safety precautions when using this product. Please read this manual carefully before using this product. • Quick and Easy Installation • Versatility and Expandability • That doesn’t make you feel fatigue on your Eyes. •Flat-Panel Digital Display easy on the Eyes. PRESTIGIO P300MW...

  • Page 3: Safety Precautions

    Not doing so may result in fire or electric shock. Pulling on the cord can damage the internal wire and may result in fire. The purpose of these precautions is to ensure user safety and prevent property damage. Be sure to read and observe all safety precautions. PRESTIGIO P300MW...

  • Page 4: Installation

    Be sure to place the unit on a level surface. The following precautions are divided into “Warnings” and “Cautions” . Warning : Ignoring this precaution may result in death or serious injury. Caution : Ignoring this precaution may result in injury or property damage. PRESTIGIO P300MW...

  • Page 5: Use And Maintenance

    Use a soft dry cloth to clean the unit. Never clean with industrial strength polish, wax, benzene, paint thinner, air freshener, lubricant, detergent, or other such chemicals. Also, do not clean with a damp cloth. PRESTIGIO P300MW...
  • Page 6 Auto Power On/Off Timer : Enables you to set the TV to automatically turn ON or OFF at a preset time. • ATM : Enables you to set the TV to search for all available standard broadcast and cable TV channels and store them automatically. PRESTIGIO P300MW...
  • Page 7 Names of each part Front View PRESTIGIO P300MW...

  • Page 8: Controls And Functions

    Controls and Functions Back View Accessories The configuration of the components may look different from the following illustration. Antenna Cable SCART Cable Power Cord User’s Guide Remote Control Battery (2) (AAA, 1.5V) PRESTIGIO P300MW...

  • Page 9: Mounting On A Wall

    Using the Stand Do not install on an unstable location with support area smaller than the LCD TV. Please refer to the desktop stand user’ s manual for details of installation. Please contact your dealer to purchase the “speakers” . PRESTIGIO P300MW...

  • Page 10: Installing An Antenna

    Locate a wall jack with an F-connector, and then connect the coaxial antenna cable to the wall jack. For a House Installing an Antenna Using an Outdoor Antenna To install or use an outdoor antenna, if possible, consult a qualified technician for help. PRESTIGIO P300MW...

  • Page 11: Remote Controller

    31. UPDATE : DISPLAY CANCEL OR TEXT UPDATE KEY 32. INDEX : TEXT INDEX KEY 33. TIME: TIME DISPLAY KEY 34. REVEAL : SELECT HIDDEN CONTENT DURING TELETEXT DISPLAY 35. RED, GREEN, YELLOW, BLUE : DIRECT ACCESS TELETEXT LINKED PAGE KEY PRESTIGIO P300MW...
  • Page 12 How to watch a cable TV The remote control should be operated within 30feet(7m) and 30 o to the left and the right of the IR receiver on the front of the LCD TV. Used batteries should be disposed properly. PRESTIGIO P300MW...

  • Page 13: Vcr Connections

    2. Use to move to “composite” . If S-Video has been connected, select S-Video. If SCART terminal has been connected, select SCART1 or SCART2. 3. Turn on the VCR, insert the tape and press play button. PRESTIGIO P300MW...

  • Page 14: Cable Tv Connections

    2. Use to move to “composite” . If S-Video has been connected, select S-Video. If SCART terminal has been connected, select SCART1 or SCART2. 3. Turn on the cable broadcasting receive and select the channel you wish to view. PRESTIGIO P300MW...

  • Page 15: Camcorder/Game Console Connections

    3. Turn on the Camcorder or video game and Set to Video mode. (Please refer to the User’ s manual of Camcorder/ Video game for more information) 4. Insert tape into Camcorder and press play button or insert disc into the Video game console. PRESTIGIO P300MW...

  • Page 16: Dvd Connections

    2. Use to move to “component1” . If S-Video has been connected, select S-Video If SCART terminal has been connected, select SCART1 or SCART2. 3. Turn on the DVD, insert the DVD and press Play button. PRESTIGIO P300MW...

  • Page 17: Dtv Connections

    “component2” . ·If D-Sub 15 Pin terminal has been connected, select PC. · If SCART terminal has been connected, select SCART1 or SCART2 . 3. Turn on the DTV receiver and select the channel that you want. PRESTIGIO P300MW...
  • Page 18 3. Set the PC video output mode to VGA (640x480)/ SVGA (800x600)/ XGA (1024x768), SXGA (1280x1024, 60Hz). In the mode higher than SXGA (1280x1024, 75Hz) “Out of Range” message appears. Be sure to change your PC video format to less than SXGA mode. PRESTIGIO P300MW...

  • Page 19: Basic Use

    “country” . Press to select. Automatically “ATM” beginning. After “ATM” ends, select the desired Language. to move to the desired “Language” . Press to select. Press to go back to the previous menu. PRESTIGIO P300MW...
  • Page 20 Use the mute function to turn off the LCD TV sound for a while, when a phone or a bell rings. Press button again to hear the sound again. INFO - To check the current state Press Display shows user’ s setting and selections. Press button or wait 10 seconds for the display to disappear. PRESTIGIO P300MW...

  • Page 21: Selecting Tv/External Input

    Using the Menu Press The menu screen will appear. (left, right arrows) to move the cursor to the desired function. Press to go to the next menu. Press to select. Press to go back to the previous menu. PRESTIGIO P300MW...
  • Page 22 I/PAL : United Kingdom, Hongkong B.G/PAL : Germany ,Netherland, Switzerland, Italy, Austria, Yugoslavia B/PAL : Australia, New Zealand, Singapore, Norway, India, Thailand, Indonesia, Malaysia M/PAL : Brazil B/SECAM : Egypt, Iran, Iraq D/PAL : China, north Korea B.H/PAL : Belgium PRESTIGIO P300MW...

  • Page 23: Setting Channels

    To set or erase a channel Press to move to Press to move to “Add/ Erase” Press to select. to move to “Add” or “Erase” . Press to select. Press to go back to the previous menu. PRESTIGIO P300MW...

  • Page 24: Changing Picture Settings

    Brightness : It adjusts the brightness of the image. Contrast : It adjusts the contrast of image. Colour : It adjusts the intensity of the colour. Tint : It adjusts the natural tint of the image. Sharpness : It adjusts the clarity of the image. PRESTIGIO P300MW...

  • Page 25: Changing Sound Settings

    Volume : It adjusts the sound volume. Balance : It adjusts the volume of speakers on the left and the right. Equalizer : It adjusts the volume by frequency bands and the user can select the desired sound quality. PRESTIGIO P300MW...

  • Page 26: Selecting The Menu Language

    Setting Half Tone Menu Background Press to move to Press to move to “Half Tone” . Press to select. to select the “ON” . Press to go back to the previous menu. PRESTIGIO P300MW...

  • Page 27: Setting Blue Background

    If there is an incoming signal, the blue screen will be replaced by the normal picture screen. Press to move to Press to move to “Blue Screen” . Press to select. to select the “ON” . Press to go back to the previous menu. PRESTIGIO P300MW...

  • Page 28: Changing Screen Size

    Zoom 1 - It enlarges the natural screen factor by approx. 5 % Zoom 2 - It enlarges the natural screen factor by approx. 10 % 4 : 3 - It is the standard format of broadcasting. 14 : 9 - It makes 14 : 9 format for input signal. PRESTIGIO P300MW...
  • Page 29 “Manual Store” . Press to select. to move to the desired category. Press to select. to adjust the setting. Press to go back to the previous menu. Select “Yes” in Manual Store to save the Program settings. PRESTIGIO P300MW...

  • Page 30: Sorting Program

    “Program Sort” . Press to select. to move to the desired Program Number. Press to move to the next category. to move to the Preferred Program Number. Press to sort. Press to go back to the previous menu. PRESTIGIO P300MW...

  • Page 31: Editing Program Name

    Press to move to “Program Name” . Press to select. to move to the desired Program Number. Press to move to program name. to register program name. Press to go back to the previous menu. PRESTIGIO P300MW...

  • Page 32: Adjusting Unclear Screen

    To return to initial setting, use to select “Reset” and press To view the still picture Press Picture will freeze, but sound will continue to be heard. Press again to cancel. PRESTIGIO P300MW...

  • Page 33: Viewing Picture-In-Picture

    The sub-screen can be changed to display picture from the desired input source. Changing the Screen Size Press to move to “Size” . Press to select. to select the desired size. Press to go back to the previous menu. Or press PRESTIGIO P300MW...
  • Page 34 “Sound Swap” . Press to select. to select the “Main” or “Sub” . Press to go back to the previous menu. Or press The sound of the sub screen can be selected only when PIP is being displayed. PRESTIGIO P300MW...

  • Page 35: Auto Volume Level

    Stereo Settings Press to move to Press to move to “MTS” . Press to select. to select the desired category. Press to go back to the previous menu. Or press (Multi Television Sound) PRESTIGIO P300MW...
  • Page 36 Press to move to “Reset” . Press to select. to select the “Yes” . Press to select The LCD TV will turn off then back on in few second. The parameters will be set to factory default. PRESTIGIO P300MW...

  • Page 37: Setting Time

    Press to move to Press to move to “Clock” . Press to move one step. to adjust the desired hour. Press to move one step. to adjust the desired minute. Press to go back to the previous menu. PRESTIGIO P300MW...

  • Page 38: Automatic Power On/Off

    It automatically turns off the TV after a designated period of time Depending on the number of times the “Sleep” button is pressed, the TV will be turned off after 30, 60, 90, 120, 150 or 180 minutes. PRESTIGIO P300MW...

  • Page 39: Basic Function

    REVEAL : Press this button to display the concealed information. Such as solutions of riddles or puzzles. RED, GREEN, YELLOW, BLUE-In the TOP/FLOF automatic navigation mode, these keys select and display the linked page. PRESTIGIO P300MW...

  • Page 40: Using Tv As A Monitor

    Phase : It adjusts the phase shift of the image. Use when image appears blurry or out of focus. H-Position : It moves the image on the screen horizontally. V-Position : It moves the image on the screen vertically. PRESTIGIO P300MW...
  • Page 41 Cool 1: This results in a blueish tone. Cool 2: This results in a more blueish tone. Normal : This is standard colour setting. Warm1 : This results in a reddish tone. Warm2 : This results in a more reddish tone. PRESTIGIO P300MW...

  • Page 42: External Adjustment

    Use this function to choose monitor ID number. Press to move to Press to move to “Set ID” . Press to select. to select the desired ID number. Press to go back to the previous menu. The adjustment range of Set ID is 1-254. PRESTIGIO P300MW...

  • Page 43: Special Features

    Wire the cable so that each pair of data lines cross between the two devices. These data line pairs are RXD (Receive to send) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to send). RS-232C configurations PRESTIGIO P300MW...

  • Page 44: Rs232C Communication Protocol

    Transmit ‘FF’ data to data read mode * Error Acknowledge {Cr} Carriage Return {SET ID}{:}{NG}{x} ASCII Code 0x0d The LCDTV or PDPTV set transmits ACK based on this format When receiving abnormal data of no operated functions of communication error. PRESTIGIO P300MW...
  • Page 45 * Ack * Transmission {SET ID}{:}{OK}{x}{Data}{x} {w}{ }{SET ID}{ }{Data}{Cr} Data 0 : TV Data 0 : On Data 1 : Scart1 Data 1 : Off Data 2 : Scart2 * Ack Data 3 : Composite {SET ID}{:}{OK}{x}{Data}{x} PRESTIGIO P300MW...
  • Page 46 Data : Min : 00h~Max : 64h Data 0 : On * Ack Data 1 : Off {SET ID}{:}{OK}{x}{Data}{x} * Ack Data : Min : 00h~Max : 64h {SET ID}{:}{OK}{x}{Data}{x} Data 0 : On Data 1 : Off PRESTIGIO P300MW...
  • Page 47 {q}{ }{SET ID}{ }{FF}{Cr} {e}{ }{SET ID}{ }{Data}{Cr} * Ack Data 0 : Main {SET ID}{:}{OK}{x}{Data}{x} Data 1 : Sub Data 0 : OK * Ack Data 1 : Stanby {SET ID}{:}{OK}{x}{Data}{x} Data 2 : AC Downr Data 0 : Main PRESTIGIO P300MW...
  • Page 48 {s}{ }{SET ID}{ }{Data}{Cr} Data 1 : Standard Data 0 : Custom Data 2 : Music Data 1 : Standard Data 3 : Movie Data 2 : Music Data 4 : Speech Data 3 : Movie Data 4 : Speech PRESTIGIO P300MW...

  • Page 49: Maintenance And Service

    When connecting a Set-Top-Box, check that it is on stereo broadcasting. If it is, the TV program may not be available or the reception may be bad. Check the audio ource with another player. If that source is good, contact your dealer or an Authorized service center. PRESTIGIO P300MW...
  • Page 50 This LCD TV is for household use and registered as suitable on electromagnetic waves. Therefore, you can use it in every location as well as residential areas. Supporting display mode Considerations in Installation If any signal of unsupported resolution is input, the “Out of Range” message appears. PRESTIGIO P300MW...

  • Page 51: Specifications

    PAL-M, PAL-N, PAL, SECAM, SD, HD, VGA, SVGA, XGA, SXGA Tuner PAL, SECAM RGB Input D-Sub(Analog RGB) AC Input AC 100-240V~, 50/60Hz Power Consumption 140W If any signal of unsupported resolution is input, the “Out of Range” message appears. PRESTIGIO P300MW...
