Summary of Contents for IKA STARVISC 200-2.5 control

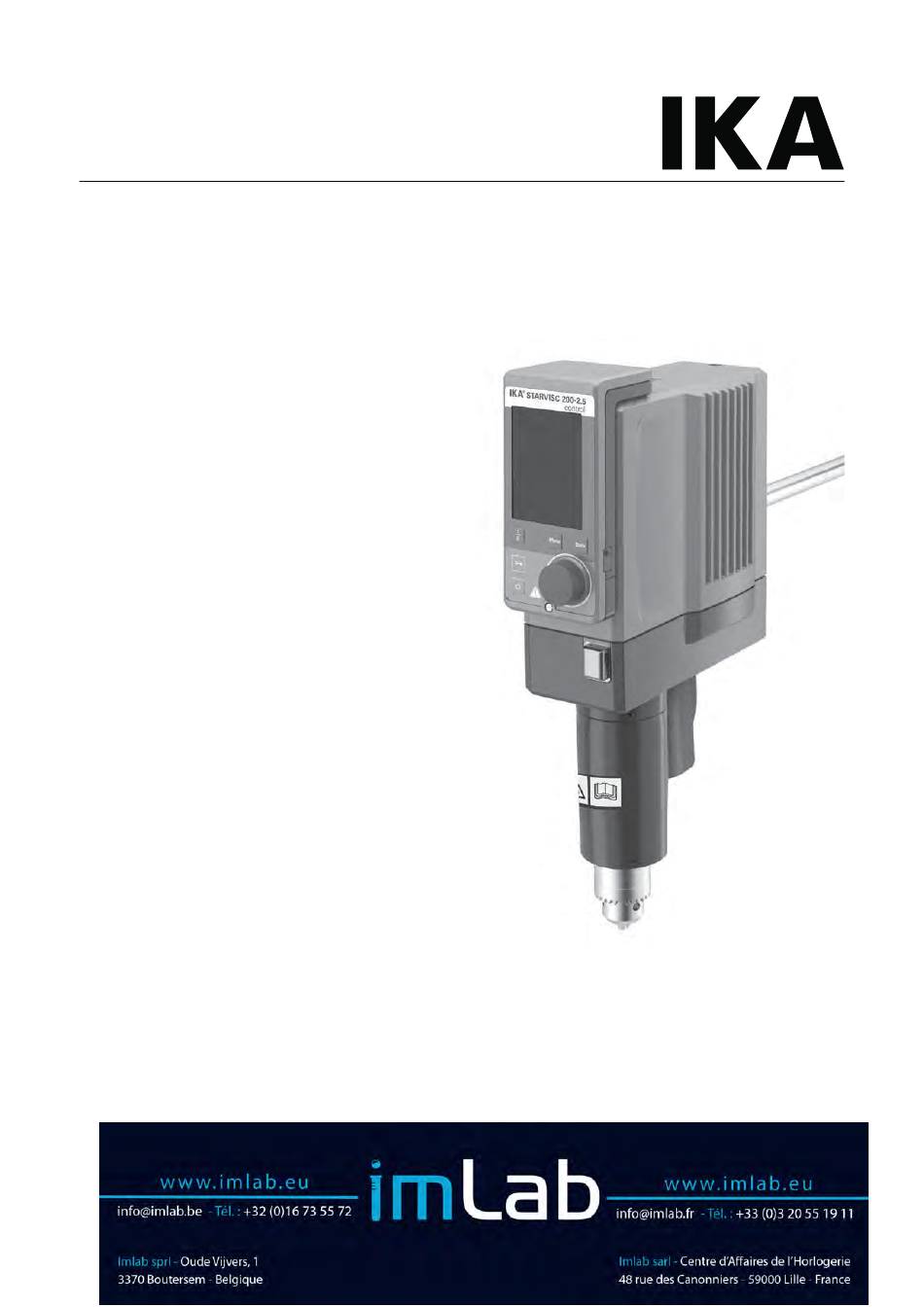

- Page 1 20000015716 STARVISC 200-2.5 control_062018 IKA STARVISC 200-2.5 control...
-
Page 2: Device Setup / Dangerous Parts
Device setup / Dangerous parts Device setup STARVISC 200-2.5 control Wireless Controller station (WiCo) Fig. 2 Fig. 1 Fig. 3 Fig. 4 Dangerous parts RS 232 Temp. Sensor Fig. 5 Fig. 6 Fig. 7 Fig. 8... -
Page 3: Table Of Contents
Directive: 2014/53/EU Standards: EN 60950-1, EN 300328, EN 301489-1, EN 301489-17 A copy of the complete EU Declaration of Conformity can be requested at sales@ika.com. Note for USA (FCC) This equipment complies with Part 15 of the FCC rules. Any changes or modifications not expressly approved by the Manufacturer could void your authority to operate the equipment. -
Page 4: Explication Of Warning Symbols
Furthermore, users must make sure that the OFF • The socket for the mains cord must be easily accessible. switch of the IKA product can be accessed immediately, directly • Socket must be earthed (protective ground contact). and without risk at any time. - Page 5 Disposal instructions: containers can be damaged or shattered by this. It can cause injury • When disposing of the IKA battery pack, please tape over the to the operator, also can damage the rotating stirring tool. In this contacts with adhesive tape to prevent short-circuiting due to case exchange the stirring tool for one without imbalance or rem- moisture or contact with metal components.
-
Page 6: Correct Use
- Any damage should be notified immediately to the shiping agent (post, rail or logistic company). Adapter • Delivery scope: Adapter Europe, Switzerland - STARVISC 200-2.5 control station with a WiCo USA, China - Extension arm - Hexagonal socket screw - Hexagon socket offset screw key - Chuck key... -
Page 7: Speed - Overload Operation
Message in the display: Error 4 (see “Error codes” section). Output shaft The clamping chuck and output shaft permit clamping IKA recom- Please see section “Safety instructions“! NOTICE mend stirrer tools (see section “Permitted IKA stirrer tools“). - Page 8 Please comply with the relevant safety NOTICE - Load the driver instructions in the "Safety instructions" - Install the driver automatically, if it is not already installed section for the RB 1 battery pack! - Prompt you to perform a manual installation Open http://www.ika.com/ika/lws/download/usb-driver.zip.
-
Page 9: Switching On The Device
Switching on the device Check whether the voltage given on the type plate corresponds to In emergency the stirrer (station) can be NOTICE switched off by pressing the “safe STOP“ the available mains voltage. button (I, see Fig.1) on the front of the stirrer. In this case the LED The socket used must be earthed (fitted bar (G, see Fig.1) changes color from green to red, and flashes. -
Page 10: Wico
WiCo Control elements of the WiCo: Item Designation On/Off button: Switching the WiCo on and off Lock button: Disable buttons and rotary / push knobs Menu button: Press it once: main menu is displayed Press it a second time: back to the working screen Rotary/push knob: Navigation, selecting and changing the settings in the menu Return to the previous menu level / reset the torque Back button:... - Page 11 Navigation menu and menu structure: Menu navigation: Press the "Menu" button (N). Select the menu by turning the rotary/push knob (B) to the right or left to select the desired menu or sub-menu, which can then be selected by pressing the rotary/push knob. Press or turn the rotary/push knob (B) again to select the desired menu option and edit the values or settings, or activate/deactivate a function.
- Page 12 Standard Mode 60 % Battery Mode Firmware Update Info activated Sound Volume 100 % Key Tone Factory Settings Communication Device Name IKA Starvisc Remote Control WiCo activated Other Bluetooth activated Information Stirring Max Speed Max Torque Interval Run Interval Stop...
- Page 13 Menu (details): Stirring: Speed Limit: Torque Display: The ”Speed Limit” menu allows the user to set the desired maxi- The ”Torque Display” menu allows the user to specify that the mum upper speed limit for the stirrer. The initial setting is the maxi- torque is shown in the display.
- Page 14 Measuring condition: Paddle stirrer: R 1375 Viscosity: Suitable for measuring viscosity range (mpa·s): Density: HV: 10000 up to 100000 In order to measure the kinematic viscosity of a certain medium, the Optimum speed (rpm) and permissible speed user need to input the density of the medium. Changing the density range in viscosity range: by rotating knob (B).
- Page 15 Auto Zeroing: For compensation mechanical friction and grease viscosity, you must auto-zero the device before you measure the viscosity: Before auto-zeroing, empty the vessel according to the reminding of the WiCo firstly. Set the maximum speed higher a little than the select speed in the following viscosity measuring. For example: when you use R 1345 HV and the optimum speed (200 rpm) to measure a medium viscosity, the maximum speed should be set as about 210 to 250 rpm.
- Page 16 3. Set the medium density: Set the medium density by rotating the knob. Press on "OK" to confirm the setting. Viskosität > Viskosität > Viskosität > Viskosität Dichte Dichte Dichte Dichte Rührer 1.000 0.980 0.980 g/cm g/cm g/cm Display Automat. Nullabgleich 4.
- Page 17 Edit: When the highlighted "edit" symbol appear on the right top of Operating Mode: the screen, the user could change the speed (rpm), time value or Operating Mode A: intermittent mode setting. In this operating mode, the set speed is not saved when the current Note: The speed (rpm) value can be changed during the speed run comes to an end or the device is switched off.
- Page 18 Example for editing the program: PROGRAM 1 PROGRAM 1 Programs Programs Programs Time Interm. Time Interm. hh:mm Mode hh:mm Mode Program 1 Program 1 Program 1 00:00 00:00 Program 2 Program 2 Program 2 Program 3 Program 3 Program 3 Program 4 Program 4 Program 4...
- Page 19 Settings: Safety: Languages: Time Out: The “Languages“ option allows you to select the desired lan- In the “Time Out“ menu, you can set a time limit. This time limit guage by turning and pressing the rotary/push knob (B). A tick applies if there is a communication failure between the station indicates the language that is set for the system.
-
Page 20: Interfaces And Outputs
Install the driver by running the setup file. Then connect the IKA ted directly to the stirrer equipment. The IKA software package, device through the USB data cable to the PC. The data communi- labworldsoft ®... - Page 21 Connection capability: WiCo to the station: USB micro B USB micro A micro A micro B USB 2.0 cable micro A – micro B Connection capability: station to the computer: 9-pin RS 232 9-pin RS 232 PC 1.1 cable USB 2.0 cable USB A –...
-
Page 22: Maintenance And Cleaning
For this, you should request the “Decontamination Certificate” Foodstuffs water containing tenside from IKA, or use the download printout of it from the IKA web- Fuels water containing tenside site www.ika.com. For materials which are not listed, please request information from If you require servicing, return the device in its original packag- IKA application support. -
Page 23: Accessories
USB 2.0 cable (micro A – micro B) R 301.1 Support holder USB 2.0 cable (A – micro B) Protective cover PC 1.1 Cable See more accessories on www.ika.com. Permitted IKA stirrer tools max. speed max. speed (rpm) (rpm) R 1375... -
Page 24: Technical Data
Technical data station Speed range I (high torque) 0 / 6 ... 400 Speed range II (high speed) 0 / 30 ... 2000 Speed adjustment Stepless Speed display TFT / WiCo Speed setting accuracy ± 1 Deviation – speed measurement Speed <... - Page 25 WiCo Permitted on time Max. communication distance (dependent on the building) Dimensions (W x D x H) 71 x 74 x 151 Weight 0.28 Ambient temperature °C + 5 ... + 40 Ambient humidity (relative) IP code according to EN 60529 IP 40 Interface Battery pack...
