Page 1: Operating Instructions

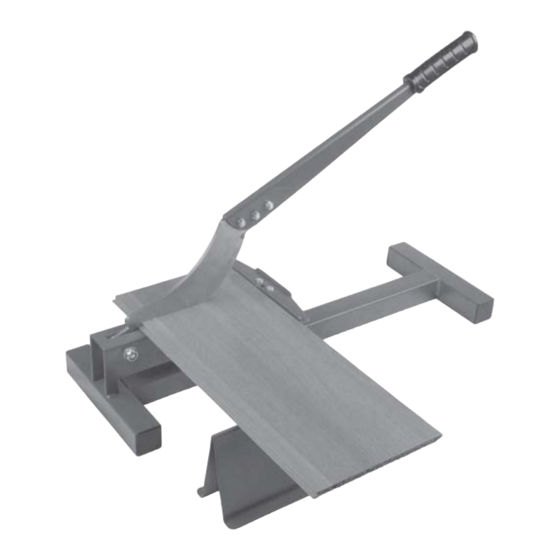

LAMINATE FLOOR CUTTER Model No: CLC1 PART NO: 3400670 OPERATING INSTRUCTIONS GC0611... - Page 2 CLARKE dealer. The CLC1 can cut any laminated MDF flooring up to 8” (203mm) wide, 7/16” (11mm) thick but is not designed for other materials. The fence can be positioned at 150 or 203mm from the blade.
- Page 3 COMPONENT PARTS Blade Assembly Right Nylon Spacer Cutting Blade Left Nylon Spacer M10 Locknut 10mm Washer Axle M6 Nut 6mm Washer Handle Screw M6 x 17mm Cutter Base Screw M6 x 13mm Guide Fence Self-Adhesive Pad Work Support OPERATING INSTRUCTIONS 1.
