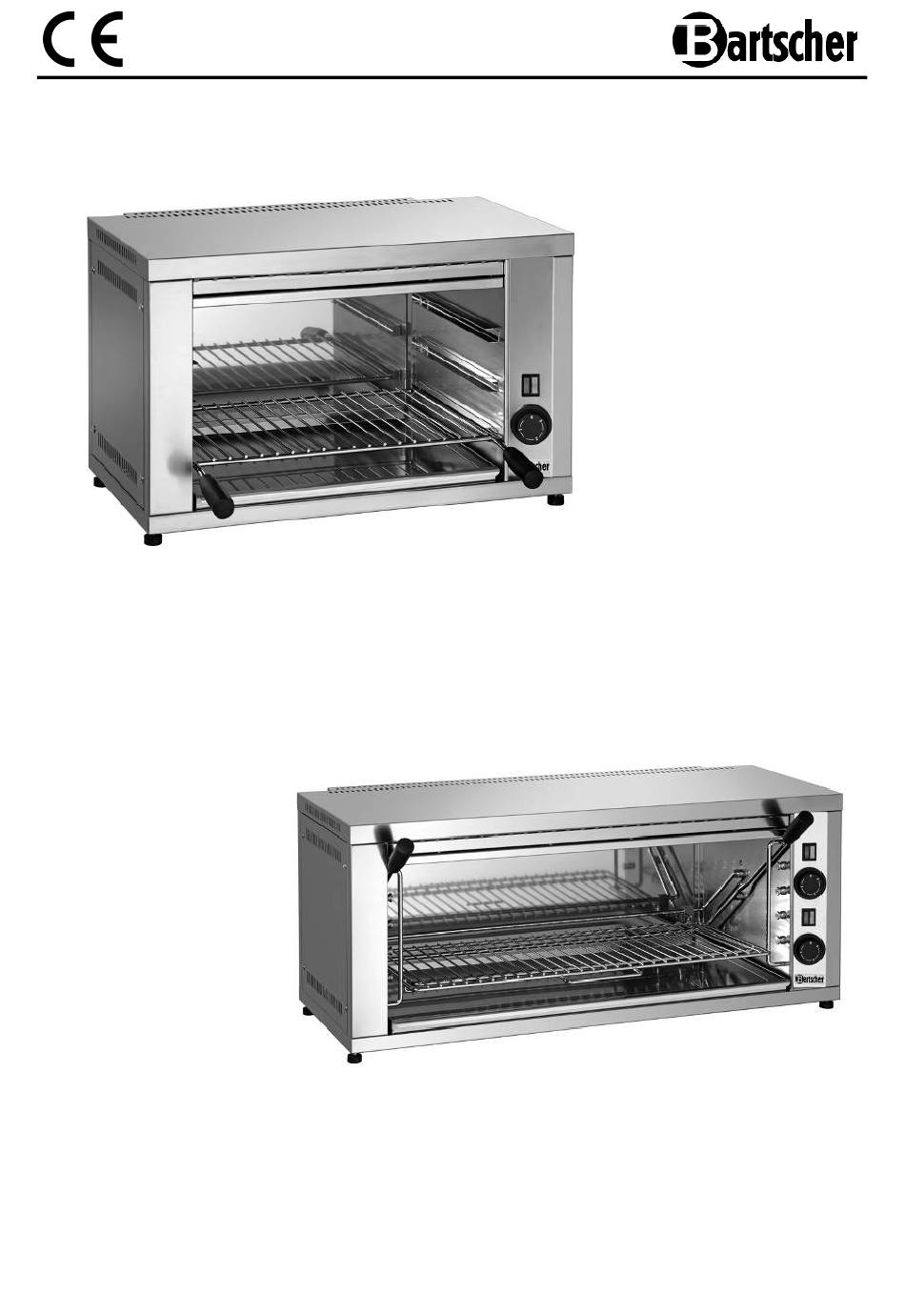

- Page 1 100524 100528 Original-Gebrauchsanleitung V2-1/1016...
-
Page 2: Table Of Contents
4.2 Technical specification ..................30 5. Installation and operation ..................31 5.1 Installation ......................31 5.2 Operation ......................32 6. Cleaning ........................35 7. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions • The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or... - Page 5 • Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires. • To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.
- Page 6 • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur. • Never immerse the the power cord and the power plug in water or other liquids.
- Page 7 WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: • To avoid the fire hazard and the damages of the device never place the kitchen utensils, towels, paper, etc. on the device or grills.
-
Page 8: Proper Use
1.3 Proper use CAUTION! The device has been designed and built for commercial use and should be operated only by qualified personnel in kitchen facilities. The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Overview of parts 100524 и Housing Grill guide Power indicator (green) Heating indicator Temperature control Feet (4) Grill with anti-tilt device Crumbs tray Grill handle Ventilation holes - 28 -... - Page 12 100528 Operation elements Housing Handle for grill position change (2) Bracket for setting grill position Grill Grill handle Crumbs tray Heating indicator, left zone Power supply (green), left zone Temperature controller, left zone Heating indicator, right zone Power supply (green), right zone Temperature controller, right zone Feet (4) Ventilation holes...
-
Page 13: Technical Specification
4.2 Technical specification Name Salamander S40 100524 Code-No.: Material: nickel-chrome steel 18/10 infrared emitting heater “Incoloy“ Realization: grill with anti-tilt device, W 430 x D 305 mm indicator Power supply: 2.2 kW / 230 V 50 Hz Dimensions: W 597 x D 368 x H 365 mm Weight: 13.8 kg... -
Page 14: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! Any installation, connection and maintenance work related to the device must be performed by the qualified and certified technician in accordance with the applicable international, national and local regulations. Positioning • Unpack the device and dispose of all packing material. •... -
Page 15: Operation
• Before connecting the device make sure that the voltage and frequency values on the rating plate are consistent with the existing electric installation. The allowable voltage deviation is ±10%. • Make sure that the available electric connection conforms to the valid regulations and is equipped with protective wire. - Page 16 • Place supplied crumbs tray under the grill. Crumbs tray CAUTION! Keep in mind that the crubms tray should be placed under the grill in the device to receive crumbs created during preparation of food. Settings • Connect the device to the power supply. The green power indicator will come on. •...
- Page 17 • Use the temperature controller to set appropriate temperature level (1 - 3) in selected heating zone. For roasting and grilling use the highest temperature level 3, levels 1 i 2 are designed for heating or maintaining temperature. CAUTION! The device must be supervised during operation as any defect may cause overheating and damage of the device! HOT SURFACE! Burn hazard! Grill and dishes become very hot during the operation.
-
Page 18: Cleaning
6. Cleaning WARNING! Before cleaning disconnect the electric power supply and wait for the device to cool down. Never clean the device with use of water jet! Be careful and do not let the water into the device. CAUTION! Use only soft cloths, never use any abrasive cleaning agents which could scratch the device surface. -
Page 19: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
