Nibe F470 Installer Manual

Exhaust air heat pump
Hide thumbs Also See for F470:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
Installer manual

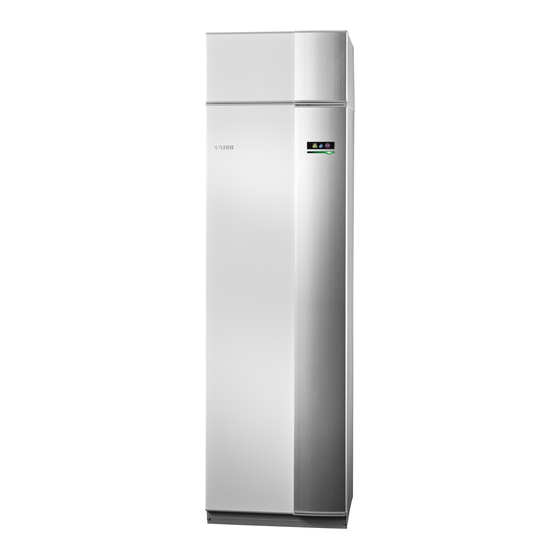

NIBE™ F470
Exhaust air heat pump
IHB GB 1301-3
031500

Advertisement

Table of Contents
loading

Related Manuals for Nibe F470

Summary of Contents for Nibe F470

  • Page 1 Installer manual NIBE™ F470 Exhaust air heat pump IHB GB 1301-3 031500...
  • Page 2 A detailed explanation of the button functions can be found on page 35. How to scroll through menus and make different settings is described on page 37. The mode for setting the indoor temperature is reached, when in the start mode in the main menu, by pressing the OK button twice.

  • Page 3: Table Of Contents

    General ventilation connection Manage alarm Ventilation flow Troubleshooting Adjusting ventilation 11 Accessories 5 Electrical connections 12 Technical data General Connections Dimensions and setting-out coordinates Settings Technical specifications Optional connections Electrical circuit diagram Connecting accessories Item register NIBE™ F470 Table of Contents |...

  • Page 4: Important Information

    F470 is CE marked and fulfils IP21. NOTE! Use of silicone seals can hamper the efficiency of The CE marking means that NIBE ensures that the product certain types of leak tracing equipment. Components meets all regulations that are placed on it based on relev- with built in safety do not need to be isolated before ant EU directives.
  • Page 5 All potential ignition sources, including cigarette smoking, should be kept at a safe distance from the service work area where combustible refrigerant can leak out. Before carrying out work, the area surrounding the equipment NIBE™ F470 Chapter 1 | Important information...
  • Page 6 (Detection equipment 10. When the containers have been filled correctly and shall be calibrated in a refrigerant-free area.) Ensure that the process is complete, close all shut-off valves in Chapter 1 | Important information NIBE™ F470...

  • Page 7: Serial Number

    Compressors must be drained before being returned to the supplier. Only electrical heating of the compressor housing may be used to quicken draining. Drain oil from the system in a safe manner. NIBE™ F470 Chapter 1 | Important information...

  • Page 8: Inspection Of The Installation

    Setting heating medium flow Boiler pressure Setting trim valve, number of turns from closed position Electricity (page 19) Fuses heat pump Fuses property Outside sensor Room sensor Current sensor (only copper version) Safety breaker Earth circuit-breaker Chapter 1 | Important information NIBE™ F470...

  • Page 9: Contact Information

    Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: info@nibe.fi www.nibe.fi AIT France, 10 rue des Moines, 67000 Haguenau Tel : 03 88 06 24 10 Fax : 03 88 06 90 15 E-mail: info@nibe.fr www.nibe.fr NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QG Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: info@nibe.co.uk www.nibe.co.uk...

  • Page 10: Delivery And Handling

    The hatches do not need to be opened during back when being moved into a building. The centre of service, all service on F470 can be carried out from the gravity is in the upper part. front. Leave space between the heat pump and wall be- hind (and any routing of supply cables and pipes) to re- duce the risk reproduction of any vibration.

  • Page 11: Supplied Components

    1. Remove the air treatment hatch by pulling it straight out. 2. Remove the screws from the lower edge of the front cover. 3. Lift the cover out at the bottom edge and up. 4. Pull the hatch towards yourself. NIBE™ F470 Chapter 2 | Delivery and handling...

  • Page 12: The Heat Pump Design

    3 The heat pump design F470, copper LE K Chapter 3 | The heat pump design NIBE™ F470...
  • Page 13 F470, stainless steel LE K NIBE™ F470 Chapter 3 | The heat pump design...

  • Page 14: Pipe Connections

    Temperature sensor, immersion heater operation BT 20 Temperature sensor, exhaust air BT 21 Temperature sensor, extract air BT 22 Temperature sensor, supply air BT 30 Thermostat, backup heating BT 50 Room sensor Chapter 3 | The heat pump design NIBE™ F470...

  • Page 15: Pipe And Ventilation Connections

    4 Pipe and ventilation connections System diagram General pipe connections F470 consists of a heat pump, water heater, immersion Pipe installation must be carried out in accordance with heater, fans, circulation pump and control system.F470 current norms and directives. is connected to the ventilation system and heating medi- The system requires a low-temperature design of the ra- um circuit.

  • Page 16: Dimensions And Pipe Connections

    Setting out dimensions Connection, copper XL1 Heating medium supply (mm) XL2 Heating medium return (mm) XL3 Cold water (mm) XL4 Hot water (mm) XL8 Docking (mm) WM1 Drip tray (mm) Chapter 4 | Pipe and ventilation connections NIBE™ F470...

  • Page 17: Symbol Key

    Connecting the climate system When connecting to a system with thermostats on all radiators/underfloor heating coils, a relief valve must be fitted, or a thermostat must be removed to ensure suffi- cient flow. NIBE™ F470 Chapter 4 | Pipe and ventilation connections...

  • Page 18: Supply Air Battery

    If possible, choose a cold day to adjust the trim valve. Installation alternative F470 can be connected in several different ways, some of which are shown below. Further option information is available at www.nibe.eu and in the respective assembly instructions for the ac- cessories used.

  • Page 19: General Ventilation Connection

    Exhaust air duct (kitchen fan) must not be connected to F470. To prevent cooking odours being led to the F470 the distance between the kitchen fan and the exhaust air valve must be observed. The distance must not be below 1.5 m, but may vary between different installations.

  • Page 20: Ventilation Flow

    Ventilation flow Connect F470 so that all exhaust air except exhaust air duct air (kitchen fan) passes the evaporator (EP1) in the heat pump. Lowest ventilation flow must fulfill applicable national norms. For optimum heat pump performance the ventilation flow should not be less than 28 l/s (100 m3/h) at an exhaust air temperature of at least 20 °C.

  • Page 21: Electrical Connections

    F470 is not reconnectable between 3x230V and 3x400V. If the building is equipped with an earth-fault breaker, F470 should be equipped with a separate one. If a miniature circuit breaker is used it should have at least motor characteristic “C”. See page 63 for fuse size.
  • Page 22 1. Insert the screwdriver (A) and pry the catch carefully downwards (B). Removing the cover, immersion heater circuit 2. Angle out the cover and remove it. board Cable lock Use a suitable tool to release/lock cables in the heat pump terminal blocks. Chapter 5 | Electrical connections NIBE™ F470...

  • Page 23: Connections

    20 cm to high voltage cable when cable routing. Power connection F470 must be installed via an isolator switch with a min- If separate supply to the compressor and immersion imum breaking gap of 3mm. Minimum cable area must heater is required, see section "Switch for external...
  • Page 24 If you wish to connect external operating voltage for the control system to F470 on the immersion heater circuit board (AA1) the edge connector at AA1:X2 must be moved toAA1:X9 (as illustrated). When connecting external operating voltage for the...

  • Page 25: Room Sensor

    Room sensor F470 is delivered with a room sensor supplied (BT50). The room temperature sensor has up to three functions: 1. Show current room temperature in F470's display. 2. Option of changing the room temperature in °C. 3. Makes it possible to change/stabilise the room tem- perature.

  • Page 26: Settings

    The table displays the maximum phase current for the relevant electrical step for the heat pump. If the current sensors are connected, the heat pump monitors the phase currents. In the event of a phase Chapter 5 | Electrical connections NIBE™ F470...

  • Page 27: Optional Connections

    3x400V 3x230V External connection options F470 has software controlled inputs and outputs on the input card (AA3), for connecting the extern switch func- tion or sensor. This means that when an external switch function or sensor is connected to one of six special The image shows the dip-switch (AA1-S2) in the factory setting, that is 8 kW.
  • Page 28 If an external switch function or sensor is connec- connected to terminal block X6 on the input card (AA3), ted to F470, the function to use input or output which is positioned behind the front cover. must be selected in menu 5.4, see page 53.
  • Page 29 Contact for activation of fan speed An external contact function can be connected to F470 for activation of one of the four fan speeds. The switch must be potential free and connected to the selected in- put (menu 5.4, see page 53) on terminal block X6 on the input circuit board (AA3).

  • Page 30: Connecting Accessories

    Connecting accessories Instructions for connecting accessories are provided in the manual accompanying the accessory. See page 61 for the list of the accessories that can be used with F470. Chapter 5 | Electrical connections NIBE™ F470...

  • Page 31: Commissioning And Adjusting

    1. Check that the shut off valves for the heating system (QM31) and (QM32) are open. 2. Open the vent valves (QM20) and (QM21). 3. For F470, stainless steel: Check if the flexi hose sup- plied is connected between connection (QM11) and F470, stainless steel connection (QM13).

  • Page 32: Start-Up And Inspection

    As long as the start guide is active, no function in the heat pump will start automatically. The guide will appear at each heat pump restart until it is deselected on the last page. Operation in the start guide Chapter 6 | Commissioning and adjusting NIBE™ F470...
  • Page 33 NOTE Luftflöde (l/s) Order a ventilation adjustment to complete the setting. 90/100% Effekt (watt) 90/100% Luftflöde (l/s) Tillgängligt tryck (Pa) 90/100% Luftflöde (l/s) NIBE™ F470 Chapter 6 | Commissioning and adjusting...
  • Page 34 This means the trim valve should be opened 2.8 turns from the closed position. At the same time it can be read that the coil supplies the supply air with approximately 3kW of additional output at -20°C Chapter 6 | Commissioning and adjusting NIBE™ F470...

  • Page 35: Setting The Pump Speed

    0,44 Select operating mode "auto" or "manual" when the heat pump is to run on recovery again. F470, stainless steel Setting the pump speed The speed of the circulation pump (GP1) is set using the switch (GP1-SF4) on the pump so that it achieves the projected flow for the house.
  • Page 36 Vent the heat pump through venting valve (QM20), and through the supply air coil's venting valve(QM21). When venting, F470 must be off. Chapter 6 | Commissioning and adjusting...

  • Page 37: Control - Introduction

    The control knob can be turned to the right or left. You can: scroll in menus and between options. increase and decrease the values. change page in multiple page instructions (for example help text and service info). NIBE™ F470 Chapter 7 | Control - Introduction...

  • Page 38: Menu System

    3.1 that you should note. These two symbols indicate whether the compressor or addition is blocked in F470. These can, for example, be blocked depend- ing on which operating mode is selected in menu 4.2, if blocking is scheduled in menu 4.9.5 or if an alarm has occurred that...

  • Page 39: Setting A Value

    To select another option: 1. Mark the applicable option. One of the options is pre-selected (white). 2. Press the OK button to confirm the selected op- tion. The selected option has a green tick. NIBE™ F470 Chapter 7 | Control - Introduction...

  • Page 40: Scroll Through The Windows

    1. Use the control knob to select the help symbol. 2. Press the OK button. The help text often consists of several windows that you can scroll between using the control knob. Chapter 7 | Control - Introduction NIBE™ F470...

  • Page 41: Control - Menus

    To change the room temperature, use the control knob to set the desired temperature in the display. Confirm the new setting by pressing the OK button. The new NIBE™ F470 Chapter 8 | Control - Menus...
  • Page 42 (°C) is set during the time period. Without an activated room sensor the desired change is set (of setting in menu 1.1). A one degree change in room temperature requires one increment for underfloor Chapter 8 | Control - Menus NIBE™ F470...

  • Page 43: Heating Curve

    The task of the heating curve is to give an even indoor temperature, regardless of the outdoor temperature, and thereby energy efficient operation. It is from this heating curve that the heat NIBE™ F470 Chapter 8 | Control - Menus...
  • Page 44 4. Select a new heating curve. The heat curves are - 10 - 20 - 30 - 40°C UTETEMPERATUR numbered from 0 to 15, the greater the number, the steeper the slope and the greater the supply temper- Chapter 8 | Control - Menus NIBE™ F470...
  • Page 45 Set the minimum temperature on the supply temperature 2. Press the OK button. to the climate system. This means that F470 never calcu- 3. Follow the grey line up to the heat curve and out to lates a temperature lower than that set here.
  • Page 46 Default value: 6 °C Activate night cooling here. When the temperature in the house is high and the out- door temperature is lower, a cooling effect can be ob- tained by forcing the ventilation. Chapter 8 | Control - Menus NIBE™ F470...

  • Page 47: Menu 2 - Hot Water

    OK button. The re- maining time for the selected setting is shown to the right. When the time has run out F470 returns to the mode set in menu 2.2. Select “off" to switch off temporary lux NIBE™...
  • Page 48 The length of time between increases can be selected here. The time can be set between 1 and 90 days. Factory setting is 14 days. Untick "activated" to switch off the function. Chapter 8 | Control - Menus NIBE™ F470...

  • Page 49: Menu 3 - Info

    Information about the additional heat settings, operating status and statistics can be obtained here. No changes can be made. The information is on several pages. Turn the control knob to scroll between the pages. NIBE™ F470 Chapter 8 | Control - Menus...

  • Page 50: Menu 4 - Heat Pump

    OK button. Menu 4.1 - plus functions Operating mode auto Settings for any additional functions installed in F470 can In this operating mode the heat pump automatically se- be made in the sub menus. lects what functions are permitted.
  • Page 51 You can select what icon should be visible when the door Menu 4.9 - advanced to F470 is closed. You can select up to 3 icons. If you se- lect more, the ones you selected first will disappear. The Menu...
  • Page 52 "all" is used, all days in the period are set for these times. Time period: The start and stop time for the selected day for scheduling are selected here. Blocking: The desired blocking is selected here. Chapter 8 | Control - Menus NIBE™ F470...

  • Page 53: Menu 5 - Service

    Incorrect settings in the service menus can Default values: 60 °C damage the heat pump. Here you set the start and stop temperature of the hot water for the different comfort options in menu 2.2 as NIBE™ F470 Chapter 8 | Control - Menus...
  • Page 54 35 and 45 °C. Here you set the max. electrical output of the internal electrical addition in F470 and the fuse size for the install- Check the max floor temperature with your floor supplier. ation.
  • Page 55 Menu 5.5 - factory setting service Here you set the number of months between alarms for All settings can be reset (including settings available to a reminder to clean the filters in F470. the user) to default values here. fan synch. operation...
  • Page 56 The date, time and ID no. (unique to certain settings) and the new set value is shown for every change. NOTE The change log is saved at restart and remains unchanged after factory setting. Chapter 8 | Control - Menus NIBE™ F470...

  • Page 57: Service

    Draining the climate system with the necessary expertise. In order to carry out service on the climate system, it may When replacing components on F470 only re- be easier to drain the system first. placement parts from NIBE may be used.
  • Page 58 3.256 (GP1) only applies to F470 copper. 251.6 3.240 182.5 3.218 1. Shut off F470 by setting the switch (SF1) to " ". 133.8 3.189 2. Open the service cover. 99.22 3.150 3. Loosen the venting screw (QM5) with a screwdriver.
  • Page 59 F470 from NIBE. The fact box at the top of the display shows information F470 is equipped with a USB socket in the display unit. (always in English) of the most probable update that the This USB socket can be used to connect a USB memory update software has selected form the USB memory.
  • Page 60 1. Set the desired interval between loggings. 2. Tick “activated". 3. Mark “read log settings" and press the OK button. 4. The present values from F470 are saved in a file in the USB memory at the set interval until “activated" is unticked.

  • Page 61: Disturbances In Comfort

    Enter menu 1.1 "temperature" and adjust the and/or hot water. offset of the heating curve. If the room temperat- ure is only low in cold weather the curve slope in menu 1.9.1 "heating curve" needs adjusting up. NIBE™ F470 Chapter 10 | Disturbances in comfort...

  • Page 62: High Room Temperature

    Enter menu 1.2 and select “normal". External switch for changing the fan speed activated. Check any external switches. High or distracting ventilation The ventilation is not adjusted. Order/implement ventilation adjustment. Fan speed in forced mode. Chapter 10 | Disturbances in comfort NIBE™ F470...

  • Page 63: Accessories

    Docking kit gas DEH 41 Part no. 066 102 Extra shunt group ECS 40/ECS 41 This accessory is used when F470 is installed in houses with two or more different heating systems that require different supply temperatures. ECS 40 (Max. 80 m²) Part no.

  • Page 64: Technical Data

    12 Technical data Dimensions and setting-out coordinates Undvik rördragning inom markerat område Ø125 Chapter 12 | Technical data NIBE™ F470...

  • Page 65: Technical Specifications

    Sound pressure levels Sound pressure level in the boiler house (L dB(A) 47.5-50.5 P(A) Pipe connections Heating medium ext Ø Hot water ext Ø Cold water ext Ø Docking ext Ø Ventilation Ø NIBE™ F470 Chapter 12 | Technical data...
  • Page 66 The value varies with the selected fan curve. For more extensive sound data including sound to channels visit www.nibe.eu.. The value can vary with the room’s damping capacity. These values apply with a damping of 4 dB. A20(12) exhaust air flow150 m Chapter 12 | Technical data NIBE™ F470...
  • Page 67 Sound pressure levels Sound pressure level in the boiler house (L dB(A) 47.5-50.5 P(A) Pipe connections Heating medium ext Ø Hot water ext Ø Cold water ext Ø Docking ext Ø Ventilation Ø NIBE™ F470 Chapter 12 | Technical data...
  • Page 68 The value varies with the selected fan curve. For more extensive sound data including sound to channels visit www.nibe.se. The value can vary with the room’s damping capacity. These values apply with a damping of 4 dB. A20(12) exhaust air flow150 m Chapter 12 | Technical data NIBE™ F470...

  • Page 69: Electrical Circuit Diagram

    Electrical circuit diagram 3x400V NIBE™ F470 Chapter 12 | Technical data...
  • Page 70 Chapter 12 | Technical data NIBE™ F470...
  • Page 71 NIBE™ F470 Chapter 12 | Technical data...
  • Page 72 Chapter 12 | Technical data NIBE™ F470...
  • Page 73 NIBE™ F470 Chapter 12 | Technical data...
  • Page 74 Chapter 12 | Technical data NIBE™ F470...
  • Page 75 3x230V NIBE™ F470 Chapter 12 | Technical data...
  • Page 76 Chapter 12 | Technical data NIBE™ F470...
  • Page 77 NIBE™ F470 Chapter 12 | Technical data...
  • Page 78 Chapter 12 | Technical data NIBE™ F470...
  • Page 79 NIBE™ F470 Chapter 12 | Technical data...
  • Page 80 Chapter 12 | Technical data NIBE™ F470...

  • Page 81: Item Register

    Draining the hot water heater, 55 Menu 2 - HOT WATER, 45 Menu 3 - INFO, 47 Electrical addition - maximum output, 24 Menu 4 - HEAT PUMP, 48 Menu 5 - SERVICE, 51 NIBE™ F470 Chapter 13 | Item register...
  • Page 82 Inspection of the installation, 6 Troubleshooting, 59 Marking, 2 Safety precautions, 2 USB service outlet, 57 Serial number, 5 Symbols, 2 Safety precautions, 2 Ventilation flow, 18 Collection, 5 Venting the climate system, 29 Decommissioning, 4 Chapter 13 | Item register NIBE™ F470...
  • Page 84 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 0 3 1 5 0 0...
