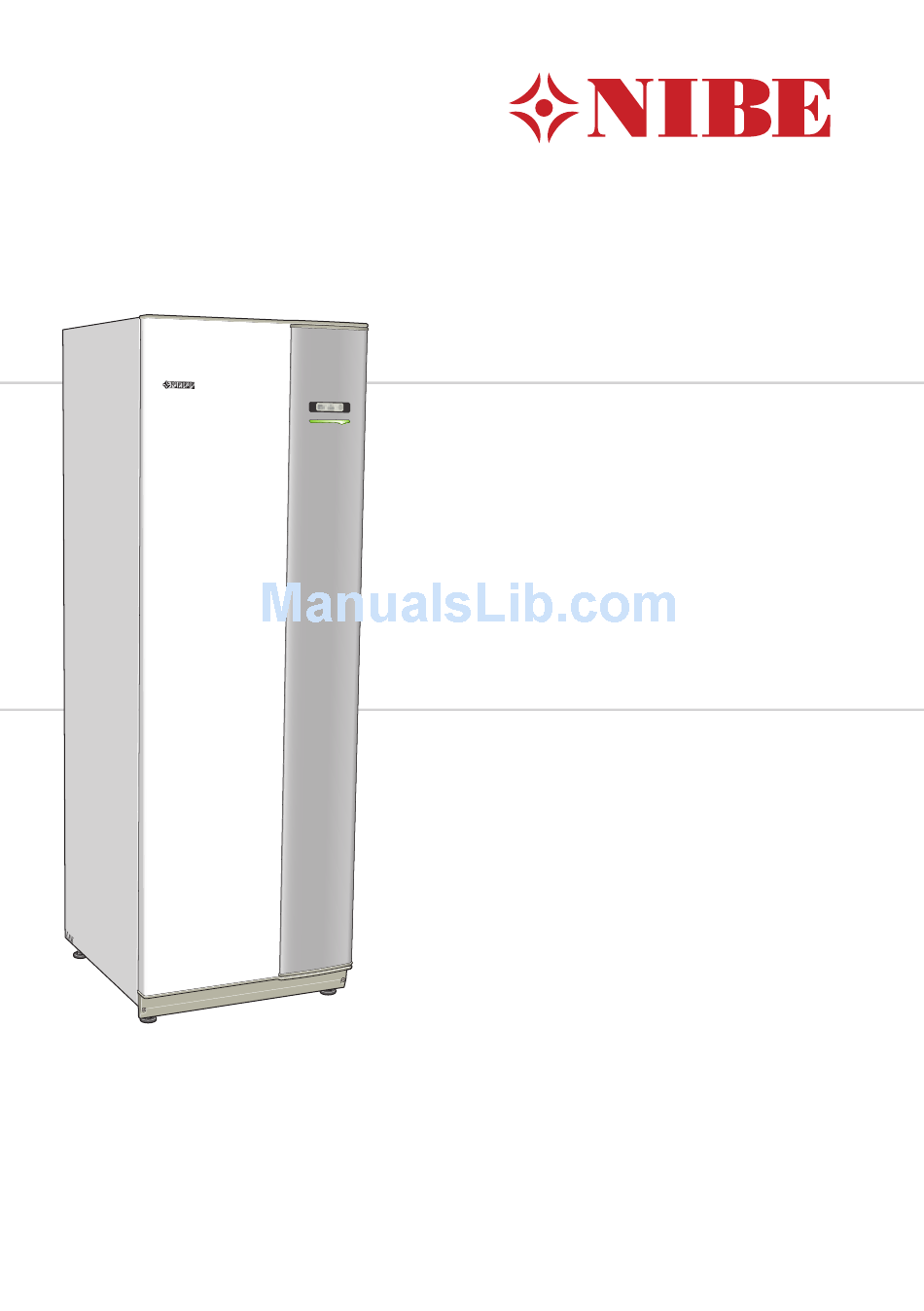

User manual

NIBE™ F1245PC
Ground source heat pump
AHB GB 1018-1
031682

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1245PC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nibe F1245PC

Summary of Contents for Nibe F1245PC

  • Page 1: User Manual

    User manual NIBE™ F1245PC Ground source heat pump AHB GB 1018-1 031682...
  • Page 2 A detailed explanation of the button functions can be found on page 11. How to scroll through menus and make different settings is described on page 15. The mode for setting the indoor temperature is reached, when in the start mode in the main menu, by pressing the OK button twice.

  • Page 3: Table Of Contents

    2 The heat pump – the heart of the house Heat pump function Contact with F1245PC Maintenance of F1245PC 3 F1245PC – at your service Set the indoor climate Set the hot water capacity Get information Adjust the heat pump...

  • Page 4: Important Information

    (offset) 1.9.1 heating curve (curve slope) Serial number must always be given Certification that the installation is carried out according to instructions in NIBE's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information...

  • Page 5: Safety Information

    Marking This heat pump is CE marked and fulfils IP21. The CE marking means that NIBE ensures that the product meets all regula- tions that are placed on it based on relevant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made.

  • Page 6: Serial Number

    Serial number The serial number can be found at the bottom right of the front cover and in the info menu (menu 3.1). Caution Always give the product's serial number when reporting a fault. Chapter 1 | Important information NIBE™ F1245PC...

  • Page 7: Contact Information

    Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 Flurlingen Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: info@nibe.ch www.nibe.ch Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad Jizerou Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: nibe@nibe.cz...
  • Page 8 For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. Chapter 1 | Important information NIBE™ F1245PC...

  • Page 9: F1245Pc - An Excellent Choice

    F1245PC – An excellent choice F1245PC is part of a new generation of heat pumps, which have been intro- duced to supply your home with inexpensive and environmentally friendly heating and/or cooling. Heat production is safe and economical with integ- rated hot water heater, immersion heater, circulation pump and control sys- tem.

  • Page 10: The Heat Pump - The Heart Of The House

    Expansionsventil Kompressor Förångare -2 °C -3 °C 0 °C Växelventil Värmekälla The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 11: Heat Pump Function

    The brine can also be circulated via a mixing valve to a heat exchanger. There the brine cools the heating system's water so that comfort cooling can be maintained during the hotter periods of the year. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 12: Contact With F1245Pc

    Contact with F1245PC External information When the heat pump door is closed, information can be received via an in- formation window and a status lamp. Information window The information window shows part of the display that is on the display unit (located behind the door to the heat pump).

  • Page 13: Display Unit

    Display unit There is a display unit behind the heat pump door, which is used to commu- nicate with F1245PC. Here you: switch on, switch off or set the heat pump in emergency mode. sets the indoor climate and hot water as well as adjusts the heat pump to your needs.

  • Page 14: Back Button

    In this mode, the compressor switches off and the immersion heater engages. The heat pump display is not illuminated and the status lamp illuminates yellow. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 15: Menu System

    Display of temperature and other operating information and access to the alarm log. See page 53. HEAT PUMP Menu 4 Setting time, date, language, display, operating mode etc. See page 58. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 16: Symbols In The Display

    3.1 that you should note. These two symbols indicate whether the compressor or addition is blocked in F1245PC. These can, for example, be blocked depending on which oper- ating mode is selected in menu 4.2, if blocking is scheduled in menu 4.9.5 or if an alarm has occurred that blocks one of them.

  • Page 17: Selecting Menu

    OK button. A new window then opens with sub menus. Select one of the sub menus by marking it and then pressing the OK button. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 18: Selecting Options

    Mark the applicable option. One of the options is pre-selected (white). Press the OK button to confirm the selected option. The selected option has a green tick. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 19: Setting A Value

    Press the OK button to confirm the value you have set. To change and return to the original value, press the Back button. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 20: Scroll Through The Windows

    Use the control knob to select the help symbol. Press the OK button. The help text often consists of several windows that you can scroll between using the control knob. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 21: Maintenance Of F1245Pc

    Maintenance of F1245PC Regular checks Your heat pump is, in principle, maintenance free and therefore requires minimal care after commissioning. On the other hand, it is recommended that you check your installation regularly. If something unusual occurs, messages about the malfunction appear in the display in the form of different alarm texts.
  • Page 22 Open the valve by turning the knob anti-clockwise carefully. Check that water flows through the valve. Close the valve by releasing it. If it does not close automatically when released, turn it anti-clockwise slightly. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 23: Saving Tips

    Increasing the indoor temperature one degree increases power consumption by approx. 5%. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...
  • Page 24 Engine block heater (Operation: 1 h/day, 4 months a year) Passenger compartment heater (Operation: 1 h/day, 4 months a year) These values are approximate example values. Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...
  • Page 25 Chapter 2 | The heat pump – the heart of the house NIBE™ F1245PC...

  • Page 26: F1245Pc - At Your Service

    3 F1245PC – at your service Set the indoor climate Overview Sub-menus For the menu INDOOR CLIMATE there are several sub-menus. Status inform- ation for the relevant menu can be found on the display to the right of the menus.
  • Page 27 Use the control knob to set a new value. Confirm the new setting by pressing the OK button. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 28 If it is warm outdoors and the room temperature is too low, increase the value in menu 1.1 by one increment. If it is warm outdoors and the room temperature is too high, reduce the value in menu 1.1 by one increment. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 29 If necessary, the different return times can be changed in menu 1.9.6. The fan speed is shown in brackets (in percent) after each speed alternative. If longer time changes are required use the holiday function or scheduling. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 30 If two settings conflict with each other a red exclamation mark is displayed at the end of the line. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 31 °C. If you wish to set similar scheduling for every day of the week start by filling in “all” and then changing the desired days. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 32 To remove the scheduling for a particular day, the time for that day must be reset by setting the start time to the same as the stop time. If the line "all" is used, all days in the period are set for these times. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 33 If the stop time is before the start time it means that the period extends past midnight. Scheduling always starts on the date that the start time is set for. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 34 Adjusting: The desired fan speed is set here. If you wish to set similar scheduling for every day of the week start by filling in “all” and then changing the desired days. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 35 Fan return time settings in the event of temporary ventilation speed change. own curve Setting own heat curve. point offset Setting the offset of the heating curve at a specific outdoor temperature. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 36 A steeper slope means a higher supply temperature at a certain outdoor temperature. - 10 - 20 - 30 - 40°C UTETEMPERATUR Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 37 Minimivärde - 10 - 20 - 30 - 40°C UTETEMPERATUR Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 38 You can now select to take read outs for different outdoor temperatures by turning the control knob to the right or left and read off the corres- ponding flow temperature. Press the OK or Back button to exit read off mode. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 39 When the contact is on, the heat curve offset is changed by the number of steps selected in the menu. If a room sensor is installed and activated the desired room temperature (°C) is set. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 40 Default values: 15°C Set the minimum temperature on the supply temperature to the climate sys- tem. This means that F1245PC never calculates a temperature lower than that set here. If there is more than one climate system the setting can be made separately for each system.
  • Page 41 A higher value gives a greater change of the heat curve offset. If several climate systems are installed the above settings can be made for the relevant systems. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 42 Default value: 1.0 cool at room over temp. Setting range: 0.5 - 10.0 °C Default value: 1.0 You can use F1245PC to cool the house during hot periods of the year. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 43 Here you can set how long F1245PC is to wait before it returns to heating mode when the cooling demand has ceased or vice versa.
  • Page 44 This setting option only appears if a room temperature sensor is connected to F1245PC and has been activated. Here you can set how high the room temperature can increase above the desired temperature before F1245PC switches to cooling operation. fan return time (accessory required) Menu 1.9.6...
  • Page 45 You can create your own heating curve here, if there are special requirements, by setting the desired supply temperatures for different outdoor temperatures. Caution Curve 0 in menu 1.9.1 must be selected for this curve to apply. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 46 If it is cold in the house, at, for example -2 °C, "outdoor temp. point" is set to "-2" and "change in curve" is increased until the desired room temperat- ure is maintained. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 47 Caution Wait 24 hours before making a new setting, so that the room temperature has time to stabilise. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...

  • Page 48: Set The Hot Water Capacity

    "holiday setting" displays if vacation setting is in progress (menu 4.7), otherwise it displays "off". advanced Setting periodic increase in the hot water temperature. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 49 OK button. The time to the right displays the remaining time at the selected setting. When the time has run out F1245PC returns to the mode set in menu 2.2. Select “off" to switch off temporary lux Chapter 3 | F1245PC –...
  • Page 50 Lux mode gives the greatest possible amount of hot water. In this mode the immersion heater may be partially used to heat hot water, which may increase operating costs. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 51 Adjusting: Set the hot water comfort that is to apply during scheduling here. If you wish to set similar scheduling for every day of the week start by filling in “all” and then changing the desired days. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 52 Scheduling always starts on the date that the start time is set for. advanced Menu Menu advanced has orange text and is intended for the advanced user. This menu has several sub-menus. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 53 The length of time between increases can be selected here. The time can be set between 1 and 90 days. Factory setting is 14 days. Untick "activated" to switch off the function. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 54 "operating time" decide how long the hot water circulation pump must run per operating instance. "downtime" decide how long the hot water circulation pump must be sta- tionary between operating instances. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...

  • Page 55: Get Information

    Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 56 The information is on several pages. Turn the control knob to scroll between the pages. Symbols in this menu: Compressor Heating Addition Hot water Heating medium pump (or- Brine pump (blue) ange) Cooling Pool Ventilation Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 57 Information about the additional heat settings, operating status and statistics can be obtained here. No changes can be made. The information is on several pages. Turn the control knob to scroll between the pages. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 58 You can see information for the 10 most recent alarms. To view the run status in the event of an alarm, mark the alarm and press the OK button. Information about an alarm. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 59 The dotted line indicates the annual average temperature. The average outdoor temperature is only shown if a room temperature sensor/room unit is installed. Otherwise, if an exhaust air module (NIBE FLM) is installed, the exhaust air temperature is shown. To read off an average temperature Turn the control knob so that the ring on the shaft with the week number is marked.

  • Page 60: Adjust The Heat Pump

    "set" is displayed if you set a vacation schedule but it is not active now, "active" displays if any part of the vacation schedule is active, otherwise it displays " off". advanced Setting heat pump work mode. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 61 Setting range: 15.0 - 70.0 °C Default value: 24.0 °C Select whether the pool control is to be activated and within what temperat- ures (start and stop temperature) pool heating must occur. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 62 When the pool temperature drops below the set start temperature and there is no hot water or heating requirement, F1245PC starts pool heating. Untick "activated" to switch off the pool heating. Caution The start temperature cannot be set to a value that is higher than the stop temperature.
  • Page 63 This alternative requires an accessory for cooling or if the heat pump has a built in function for cooling. Caution If you deselect "addition" it may mean that sufficient heating in the accom- modation is not achieved. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 64 Menu You can select what icon should be visible when the door to F1245PC is closed. You can select up to 3 icons. If you select more, the ones you selected first will disappear. The icons are displayed in the order you selected them.
  • Page 65 This setting applies to all climate systems without room sensors. A one degree change in room temperature requires one increment for under floor heating and approximately two to three increments for the radiator system. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 66 "periodic increases" started in conjunction with the vacation setting being completed. advanced Menu Menu advanced has orange text and is intended for the advanced user. This menu has several sub-menus. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 67 The indicator marks where in the cycle the heat pump is. If 0 minutes is selected it means that requirement is not prioritised, but will only be activated when there is no other requirement. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 68 Select the average outdoor temperatures in this menu. You can also set the time over which (filtering time) the average temperature is calculated. If you select 0, the present outdoor temperature is used. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 69 Setting range: -1000 – -30 Default value: -60 start addition Setting range: -2000 – -30 Default value: -400 diff. between additional steps Setting range: 0 – 1000 Default value: 100 Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 70 If two settings conflict with each other a red exclamation mark is displayed at the end of the line. When scheduling is active the actual blocking symbol in the main menu on the heat pump symbol is displayed. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 71 Blocking the compressor. Blocking additional heat. If you wish to set similar scheduling for every day of the week start by filling in “all” and then changing the desired days. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...
  • Page 72 If the stop time is before the start time it means that the period extends past midnight. Scheduling always starts on the date that the start time is set for. Caution Long term blocking can cause reduced comfort and operating economy. Chapter 3 | F1245PC – at your service NIBE™ F1245PC...

  • Page 73: Disturbances In Comfort

    "reset alarm" the alarm has been remedied. If a red light is still visible and a menu called ”alarm” is visible in the display, the problem that caused the alarm remains. If the alarm disappears and then returns, contact your installer. Chapter 4 | Disturbances in comfort NIBE™ F1245PC...

  • Page 74: Troubleshooting

    Too low or no operating prioritisation of hot water. Enter menu 4.9.1 and increase the time for when hot water is to be prioritised. Closed or choked filling valve for the hot water heater. Open the valve. Chapter 4 | Disturbances in comfort NIBE™ F1245PC...

  • Page 75: Low Room Temperature

    1.9.1 (heating curve) needs to be adjusted down. External switch for changing the room heating activated. Check any external switches. Low system pressure Not enough water in the climate system. Chapter 4 | Disturbances in comfort NIBE™ F1245PC...
  • Page 76 Top up the water in the climate system . Low or a lack of ventilation This part of the fault-tracing chapter only applies if the NIBE FLM accessory is installed. Filter blocked. Exhaust air device blocked or throttled down too much.

  • Page 77: Only Additional Heat

    Gurgling sound This part of the fault-tracing chapter only applies if the NIBE FLM accessory is installed. Not enough water in the water seal. Fill the water seal with water. Choked water seal. Check and adjust the condensation water hose.

  • Page 78: Technical Data

    5 Technical data Detailed technical specifications for this product can be found in the installa- tion manual (www.nibe.eu). Chapter 5 | Technical data NIBE™ F1245PC...

  • Page 79: Glossary

    Hose where the brine circulates in a closed system between the heat source and the heat pump. Compressor Compresses the gas state refrigerant. When the refrigerant is compressed, the pressure and the temperature increase. Chapter 6 | Glossary NIBE™ F1245PC...

  • Page 80: Domestic Hot Water

    The lower the dimensioned outdoor temperature, the lower the value should be selected on "selecting a heat curve". Efficiency A measurement of how effective the heat pump is. The higher the value is the better it is. Chapter 6 | Glossary NIBE™ F1245PC...

  • Page 81: Emergency Mode

    (radiators/heating coils). Free cooling The cold brine from the collector/borehole is used to cool the accommodation. Heat exchanger Device that transfers heat energy from one medium to another without mixing mediums. Chapter 6 | Glossary NIBE™ F1245PC...

  • Page 82: Heating Medium Side

    Outside sensor A sensor that is located outdoors. This sensor tells the heat pump how hot it is outdoors. Passive cooling See "Free cooling". Chapter 6 | Glossary NIBE™ F1245PC...

  • Page 83: Room Sensor

    Radiator Another word for heating element. They must be filled with water in order to be used with F1245PC. Refrigerant Substance that circulates around a closed circuit in the heat pump and that, through pressure changes, evaporates and condenses. During evaporation, the refrigerant absorbs heating energy and during condensing, gives off heating energy.
  • Page 84 Supply temperature The temperature of the heated water that the heat pump sends out to the heating system. The colder the outdoor temperature, the higher the supply line temperature becomes. Chapter 6 | Glossary NIBE™ F1245PC...

  • Page 85: Item Register
