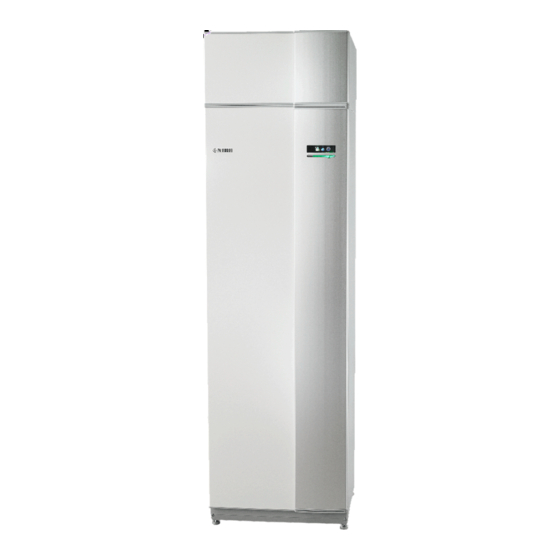

Nibe F470 User Manual

Exhaust air heat pump
Hide thumbs Also See for F470:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual , Installation Manual

User manual

NIBE™ F470
Exhaust air heat pump
UHB GB 1202-2
031501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F470 and is the answer not in the manual?

Questions and answers

Related Manuals for Nibe F470

Summary of Contents for Nibe F470

  • Page 1: User Manual

    User manual NIBE™ F470 Exhaust air heat pump UHB GB 1202-2 031501...
  • Page 2 A detailed explanation of the button functions can be found on page 11. How to scroll through menus and make different settings is described on page 15. The mode for setting the indoor temperature is reached, when in the start mode in the main menu, by pressing the OK button twice.

  • Page 3: Table Of Contents

    2 The heat pump – the heart of the house Heat pump function Contact with F470 Maintenance of F470 3 F470 – at your service Set the indoor climate Set the hot water capacity Get information Adjust the heat pump...

  • Page 4: Important Information

    Supply air fan (fan speed, Sun Solar 41 normal mode) Serial number must always be given Certification that the installation is carried out according to instructions in NIBE's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information NIBE™...

  • Page 5: Safety Information

    Marking F470 is CE marked and fulfils IP21. The CE marking means that NIBE ensures that the product meets all regula- tions that are placed on it based on relevant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made.

  • Page 6: Serial Number

    The serial number can be found at the bottom right of the front cover and in the info menu (menu 3.1). Caution Always give the product's serial number (14 digits) when reporting a fault. Chapter 1 | Important information NIBE™ F470...

  • Page 7: Contact Information

    Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 Flurlingen Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: info@nibe.ch www.nibe.ch Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad Jizerou Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: nibe@nibe.cz...
  • Page 8 For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. Chapter 1 | Important information NIBE™ F470...

  • Page 9: F470 - An Excellent Choice

    F470 – An excellent choice F470 is part of a new generation of heat pumps, which have been introduced to supply your home with inexpensive and environmentally friendly heating. Heat production is safe and economical with integrated hot water heater, immersion heater, circulation pump and control system.

  • Page 10: The Heat Pump - The Heart Of The House

    Expansionsventil Kompressor Förångare 0 °C 5 °C 0 °C 22 °C The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 11: Heat Pump Function

    The heat pump's integrated hot water heater is in the boiler section. The hot boiler water heats the hot water. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 12: Contact With F470

    Contact with F470 External information When the heat pump door is closed, information can be received via an in- formation window and a status lamp. Information window The information window shows part of the display that is on the display unit (located behind the door to the heat pump).

  • Page 13: Status Lamp

    Display unit There is a display unit behind the heat pump door, which is used to commu- nicate with F470. Here you: switch on, switch off or set the heat pump in emergency mode. sets the indoor climate and hot water as well as adjusts the heat pump to your needs.

  • Page 14: Ok Button

    The heat pump display is not illuminated and the status lamp illuminates yellow. The automatic heating control system is not operational, so manual shunt operation is required (see page 25 ). Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 15: Menu System

    Display of temperature and other operating information and access to the alarm log. See page 57. HEAT PUMP Menu 4 Setting time, date, language, display, operating mode etc. See page 62. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 16: Symbols In The Display

    3.1 that you should note. These two symbols indicate whether the compressor or addition is blocked in F470. These can, for example, be blocked depending on which oper- ating mode is selected in menu 4.2, if blocking is scheduled in menu 4.9.5 or if an alarm has occurred that blocks one of them.

  • Page 17: Selecting Menu

    OK button. A new window then opens with sub menus. Select one of the sub menus by marking it and then pressing the OK button. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 18: Selecting Options

    Mark the applicable option. One of the options is pre-selected (white). Press the OK button to confirm the selected option. The selected option has a green tick. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 19: Setting A Value

    Press the OK button to confirm the value you have set. To change and return to the original value, press the Back button. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 20: Scroll Through The Windows

    Use the control knob to select the help symbol. Press the OK button. The help text often consists of several windows that you can scroll between using the control knob. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 21: Maintenance Of F470

    If you take down more than one ventilation device for cleaning, do not mix them up. Cleaning the air filter Clean the F470's air filters regularly, how often depends on the amount of dust in the ventilation air. Chapter 2 | The heat pump –...
  • Page 22 Check pressure F470 has a pressure gauge which shows the heating system pressure. The pressure should be between 0.5 and 1.5 bar, but varies during temperature changes. If the pressure drops to 0 or rises to 2.5 frequently, contact your installer for troubleshooting.

  • Page 23: Safety Valves

    Safety valves F470 has two safety valves, one for the water heater and one for the heating system. The water heater's safety valve sometimes releases a little water after hot water usage. This is because the cold water, which enters the water heater, expands when heated causing the pressure to rise and the safety valve to open.

  • Page 24: F470, Enamel

    Filling the climate system If the pressure is too low, increase as follows: For F470, copper: Open the filling valve . The boiler section and the rest of the climate system are filled with water. For F470, stainless steel: Connect the flexi hose supplied between (QM11) and (QM13).
  • Page 25 After a while the pressure rises on the pressure gauge. When it is approx. 1.0 bar close the filler valve. F470, copper LE K F470, enamel LE K Chapter 2 | The heat pump – the heart of the house...
  • Page 26 F470, stainless steel LE K Venting the climate system In event of repeated filling of the climate system or if bubbling sounds are heard from the heat pump the system may need venting. This is carried out as follows: Turn off the power supply to the heat pump.

  • Page 27: Emergency Mode

    This is done by turning the adjustment screw on the shunt motor to "manual mode" and then turning the shunt knob to the de- sired position. Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 28: Helping The Circulation Pump To Start

    Insert a screwdriver and turn the pump motor around. Screw in the venting screw. Start F470 by setting the switch to " " and check whether the circulation pump works. It is usually easier to start the circulation pump with F470 running, switch set to "...
  • Page 29 At ventilation adjustment, a ventilation technician sets the house ventilation device and the fans in F470, according to the projected values of the house. The ventilation technician also adjusts the supply air temperature so that it is a few degrees below the desired room temperature.

  • Page 30: Power Consumption

    DVD (Operation: 2 h/week) TV games console (Operation: 6 h/week) Radio/stereo (Operation: 3 h/day) Computer incl. screen (Operation: 3 h/day, standby 21 h/day) Bulb (Operation 8 h/day) Chapter 2 | The heat pump – the heart of the house NIBE™ F470...
  • Page 31 Newly built houses undergo a drying out process for a year. The house can then consume significantly more energy than it would thereafter. After 1-2 years the heating curve should be adjusted again, as well as the heating curve Chapter 2 | The heat pump – the heart of the house NIBE™ F470...
  • Page 32 Chapter 2 | The heat pump – the heart of the house NIBE™ F470...

  • Page 33: F470 - At Your Service

    3 F470 – at your service Set the indoor climate Overview Sub-menus For the menu INDOOR CLIMATE there are several sub-menus. Status inform- ation for the relevant menu can be found on the display to the right of the menus.
  • Page 34 Use the control knob to set a new value. Confirm the new setting by pressing the OK button. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 35 If it is warm outdoors and the room temperature is too low, increase the value in menu 1.1 by one increment. If it is warm outdoors and the room temperature is too high, reduce the value in menu 1.1 by one increment. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 36 If necessary, the different return times can be changed in menu 1.9.6. The fan speed is shown in brackets (in percent) after each speed alternative. If longer time changes are required use the holiday function or scheduling. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 37: Heating Menu

    If two settings conflict with each other a red exclamation mark is displayed at the end of the line. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 38 °C. If you wish to set similar scheduling for every day of the week start by filling in “all” and then changing the desired days. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 39 Day: Select which day or days of the week the schedule is to apply to here. To remove the scheduling for a particular day, the time for that day must be Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 40: Advanced Menu

    Setting the heating curve slope. external adjustment Setting the heat curve offset when the external contact is connected. min. flow line temp. Setting minimum permitted flow line temperature. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 41: Heating Curve

    It is from this heating curve that the heat pump’s control computer determines the temperature of the water to the heating system, flow line temperature, and therefore the indoor temperature. You can select heating Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 42 +2 steps increases the supply temperat- ure by 5 °C at all outdoor temperat- ures. - 10 - 20 - 30 - 40°C UTETEMPERATUR Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 43 Select a new heating curve. The heat curves are numbered from 0 to 15, the greater the number, the steeper the slope and the greater the supply temperature. Heating curve 0 means that own curve (menu 1.9.7) is used. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 44 If it is warm outdoors and the room temperature is too low, increase the curve offset by one increment. If it is warm outdoors and the room temperature is too high, lower the curve offset by one increment. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 45: External Adjustment

    If a room sensor is installed and activated the desired room temperature (°C) is set. If there is more than one climate system the setting can be made separately for each system. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 46: Min. Flow Line Temp

    Default values: 20°C Set the minimum temperature on the supply temperature to the climate sys- tem. This means that F470 never calculates a temperature lower than that set here. If there is more than one climate system the setting can be made separately for each system.

  • Page 47: Room Sensor Settings

    A higher value gives a greater change of the heating curve's set offset. If several climate systems are installed the above settings can be made for the relevant systems. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 48: Fan Return Time

    Here you select the return time for temporary speed change (speed 1-4) on the ventilation in menu 1.2. Return time is the time it takes before ventilation speed returns to normal. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 49 You can create your own heating curve here, if there are special requirements, by setting the desired supply temperatures for different outdoor temperatures. Caution Curve 0 in menu 1.9.1 must be selected for this curve to apply. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 50: Point Offset

    If it is cold in the house, at, for example -2 °C, "outdoor temp. point" is set to "-2" and "change in curve" is increased until the desired room temperat- ure is maintained. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 51 ("min diff. outdoor-exhaust") and the exhaust air temperature is higher than the set value ("start temp. exhaust air") run the ventilation at speed 4 until one of the conditions is no longer met. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 52 Caution Night cooling can only be activated when house heating has been deactivated. This is done in menu 4.2. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 53: Set The Hot Water Capacity

    "holiday setting" displays if vacation setting is in progress (menu 4.7), otherwise it displays "off". advanced Setting periodic increase in the hot water temperature. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 54 OK button. The time to the right displays the remaining time at the selected setting. When the time has run out F470 returns to the mode set in menu 2.2. Select “off" to switch off temporary lux Chapter 3 | F470 –...

  • Page 55: Comfort Mode

    Scheduling is activated/deactivated by ticking/unticking"activated". Set times are not affected at deactivation. If two settings conflict with each other a red exclamation mark is displayed. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 56 If the stop time is before the start time it means that the period extends past midnight. Scheduling always starts on the date that the start time is set for. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 57: Periodic Increases

    Setting range: 00:00 - 23:00 Default value: 00:00 To prevent bacterial growth in the water heater, the compressor and the immersion heater can increase hot water temperature at regular intervals. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 58: Hot Water Recirc

    "operating time" decide how long the hot water circulation pump must run per operating instance. "downtime" decide how long the hot water circulation pump must be sta- tionary between operating instances. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 59: Get Information

    Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 60 No changes can be made. The information is on several pages. Turn the control knob to scroll between the pages. Symbols in this menu: Compressor Heating Addition Hot water Ventilation compressor info Menu Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 61 Information about the additional heat settings, operating status and statistics can be obtained here. No changes can be made. The information is on several pages. Turn the control knob to scroll between the pages. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 62 You can see information for the 10 most recent alarms. To view the run status in the event of an alarm, mark the alarm and press the OK button. Information about an alarm. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 63: Indoor Temp. Log

    You can now select to take read outs for different weeks by turning the control knob to the right or left and read off the average temperature. Press the OK or Back button to exit read off mode. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 64: Adjust The Heat Pump

    "set" is displayed if you set a Vacation schedule but it is not active now, "active" displays if any part of the Vacation schedule is active, otherwise it displays "off". advanced Setting heat pump work mode. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 65: Op. Mode Menu

    Operating mode manual In this operating mode you can select what functions are permitted. You cannot deselect "compressor" in manual mode. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 66: My Icons Menu

    Caution If you deselect "addition" it may mean that insufficient hot water and/or heating in the accommodation is achieved. my icons Menu Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 67: Time & Date

    You can select what icon should be visible when the door to F470 is closed. You can select up to 3 icons. If you select more, the ones you selected first will disappear. The icons are displayed in the order you selected them.

  • Page 68: Holiday Setting

    Complete holiday setting about a day before your return so that room tem- perature and hot water have time to regain usual levels. Set the vacation setting in advance and activate just before departure in order to maintain the comfort. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 69 When the compressor is blocked heat is not recovered from the exhaust air. advanced Menu Menu advanced has orange text and is intended for the advanced user. This menu has several sub-menus. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 70: Auto Mode Setting

    You can also set the time over which (filtering time) the average temperature is calculated. If you select 0, the present outdoor temperature is used. Caution It cannot be set "stop additional heat" higher than "stop heating". Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 71: Factory Setting User

    All settings that are available to the user (including advanced menus) can be reset to default values here. Caution After factory setting, personal settings such as heating curves, ventilation etc must be reset. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 72: Schedule Blocking

    Time period: The start and stop time for the selected day for scheduling are selected here. Blocking: The desired blocking is selected here. Blocking the compressor. Blocking additional heat. Chapter 3 | F470 – at your service NIBE™ F470...
  • Page 73 If the stop time is before the start time it means that the period extends past midnight. Scheduling always starts on the date that the start time is set for. Caution Long term blocking can cause reduced comfort and operating economy. Chapter 3 | F470 – at your service NIBE™ F470...

  • Page 74: Disturbances In Comfort

    In most cases it is enough to select "reset alarm" to correct the problem that caused the alarm. If a green light illuminates after selecting Chapter 4 | Disturbances in comfort NIBE™ F470...
  • Page 75 The status lamp will therefore continue to be red. If the alarm does not reset, contact your installer for suitable remedial action. NOTE Always give the product's serial number (14 digits) when reporting a fault. Chapter 4 | Disturbances in comfort NIBE™ F470...

  • Page 76: Troubleshooting

    Too low set value on the automatic heating control. Enter menu 1.1 (temperature) and adjust the heat curve offset of the heat curve. If the room temperature is only low in cold weather the Chapter 4 | Disturbances in comfort NIBE™ F470...

  • Page 77: High Room Temperature

    Check and clean the exhaust air devices (see page 19). Fan speed in reduced mode. Enter menu 1.2 and select “normal". External switch for changing the fan speed activated. Check any external switches. Chapter 4 | Disturbances in comfort NIBE™ F470...
  • Page 78 Wait until the temperature condition has been reset. Minimum time between compressor starts has not been reached. Wait 30 minutes and check if the compressor has started. Alarm tripped. Follow the display instructions. Chapter 4 | Disturbances in comfort NIBE™ F470...

  • Page 79: Technical Data

    5 Technical data Detailed technical specifications for this product can be found in the installa- tion manual (www.nibe.eu). Chapter 5 | Technical data NIBE™ F470...

  • Page 80: Glossary

    A malfunction in the heat pump can sometimes be noticed in the form of a disturbance in comfort. In most cases, the heat pump notes operational interference and indicates this with alarms and shows instructions in the display. Chapter 6 | Glossary NIBE™ F470...

  • Page 81: Domestic Hot Water

    F470. Exhaust air devices Vents, usually in the ceiling, in the kitchen/bathroom/clothes closet where the air is drawn in to be forwarded to F470. Expansion valve Valve that reduces the pressure of the refrigerant, whereupon the temperature of the refrigerant drops.

  • Page 82: Heating Medium Side

    Mixing valve A valve that mixes the cold water with the hot water leaving the heater. Outdoor air Air that is drawn into the heat pump and heated. Chapter 6 | Glossary NIBE™ F470...

  • Page 83: Safety Valve

    Radiator Another word for heating element. They must be filled with water in order to be used with F470. Refrigerant Substance that circulates around a closed circuit in the heat pump and that, through pressure changes, evaporates and condenses. During evaporation, the refrigerant absorbs heating energy and during condensing, gives off heating energy.

  • Page 84: Supply Air

    Supply temperature The temperature of the heated water that the heat pump sends out to the heating system. The colder the outdoor temperature, the higher the supply line temperature becomes. Chapter 6 | Glossary NIBE™ F470...

  • Page 85: Item Register

    Item register Adjust the heat pump, 62 Important information, 2 Contact information, 5 Back button, 12 F470 – An excellent choice, 7 Installation data, 2 Serial number, 4 Contact information, 5 Information window, 10 Contact with F470, 10 Installation data, 2...
  • Page 86 The heat pump – the heart of the Technical data, 77 house, 8 Troubleshooting, 74 Chapter 7 | Item register NIBE™ F470...
  • Page 88 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 0 3 1 5 0 1...
