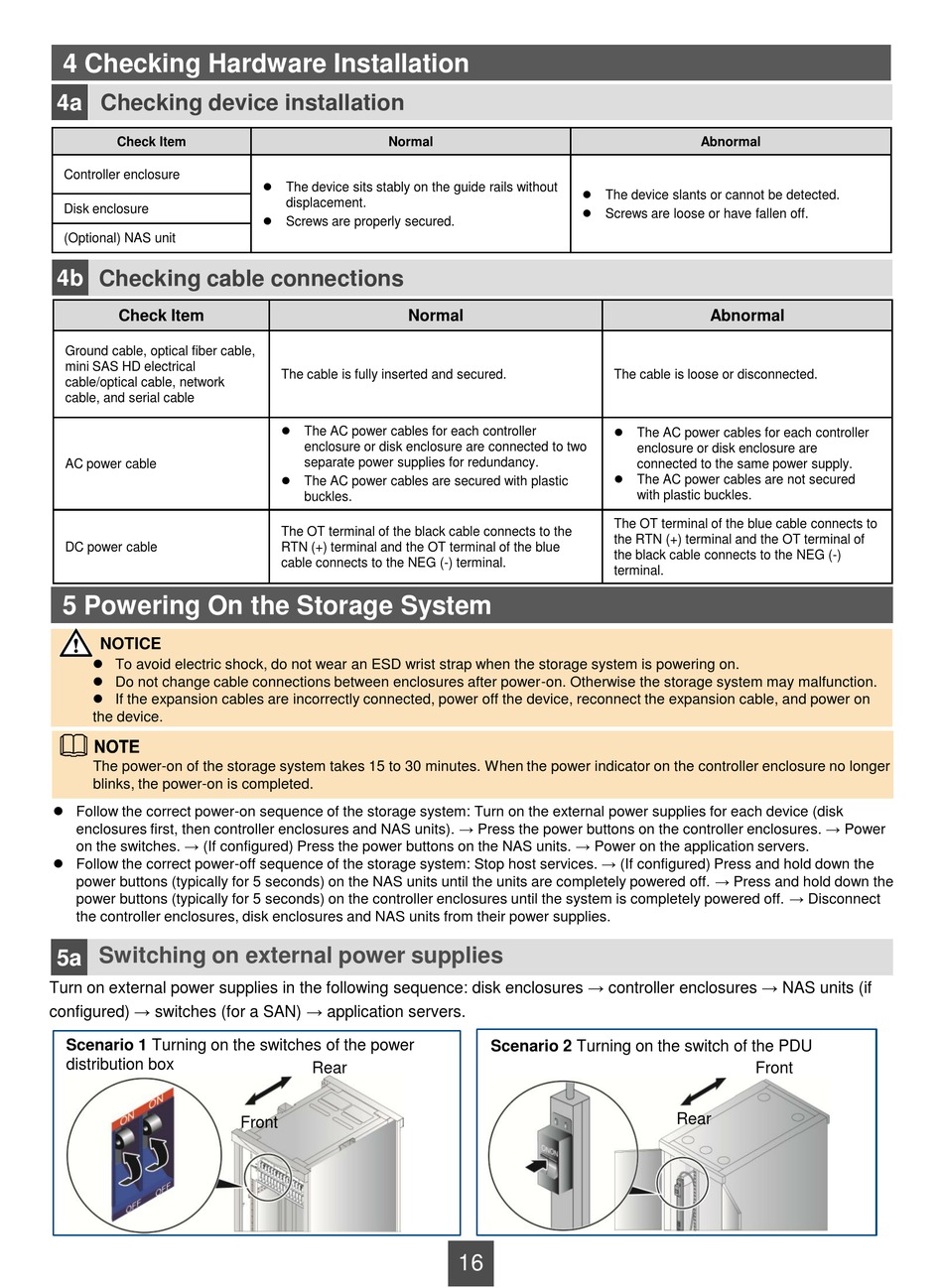

4 Checking Hardware Installation

4a Checking device installation
Check Item
Controller enclosure
Disk enclosure
(Optional) NAS unit
4b Checking cable connections
Check Item
Ground cable, optical fiber cable,
mini SAS HD electrical
cable/optical cable, network
cable, and serial cable
AC power cable
DC power cable

5 Powering On the Storage System

NOTICE
 To avoid electric shock, do not wear an ESD wrist strap when the storage system is powering on.
 Do not change cable connections between enclosures after power-on. Otherwise the storage system may malfunction.
 If the expansion cables are incorrectly connected, power off the device, reconnect the expansion cable, and power on
the device.
The power-on of the storage system takes 15 to 30 minutes. When the power indicator on the controller enclosure no longer
blinks, the power-on is completed.
 Follow the correct power-on sequence of the storage system: Turn on the external power supplies for each device (disk
enclosures first, then controller enclosures and NAS units). → Press the power buttons on the controller enclosures. → Power
on the switches. → (If configured) Press the power buttons on the NAS units. → Power on the application servers.
 Follow the correct power-off sequence of the storage system: Stop host services. → (If configured) Press and hold down the
power buttons (typically for 5 seconds) on the NAS units until the units are completely powered off. → Press and hold down the
power buttons (typically for 5 seconds) on the controller enclosures until the system is completely powered off. → Disconnect
the controller enclosures, disk enclosures and NAS units from their power supplies.
Switching on external power supplies
5a
Turn on external power supplies in the following sequence: disk enclosures → controller enclosures → NAS units (if
configured) → switches (for a SAN) → application servers.
Scenario 1 Turning on the switches of the power
distribution box
Normal
 The device sits stably on the guide rails without
displacement.
 Screws are properly secured.
Normal
The cable is fully inserted and secured.
 The AC power cables for each controller
enclosure or disk enclosure are connected to two
separate power supplies for redundancy.
 The AC power cables are secured with plastic
buckles.
The OT terminal of the black cable connects to the
RTN (+) terminal and the OT terminal of the blue
cable connects to the NEG (-) terminal.
Rear
Front
 The device slants or cannot be detected.
 Screws are loose or have fallen off.
The cable is loose or disconnected.
 The AC power cables for each controller
 The AC power cables are not secured
The OT terminal of the blue cable connects to
the RTN (+) terminal and the OT terminal of
the black cable connects to the NEG (-)
terminal.
Scenario 2 Turning on the switch of the PDU
16
Abnormal
Abnormal
enclosure or disk enclosure are
connected to the same power supply.
with plastic buckles.
Front
Rear
