The SFP module converts optical data into electrical data and vice versa.

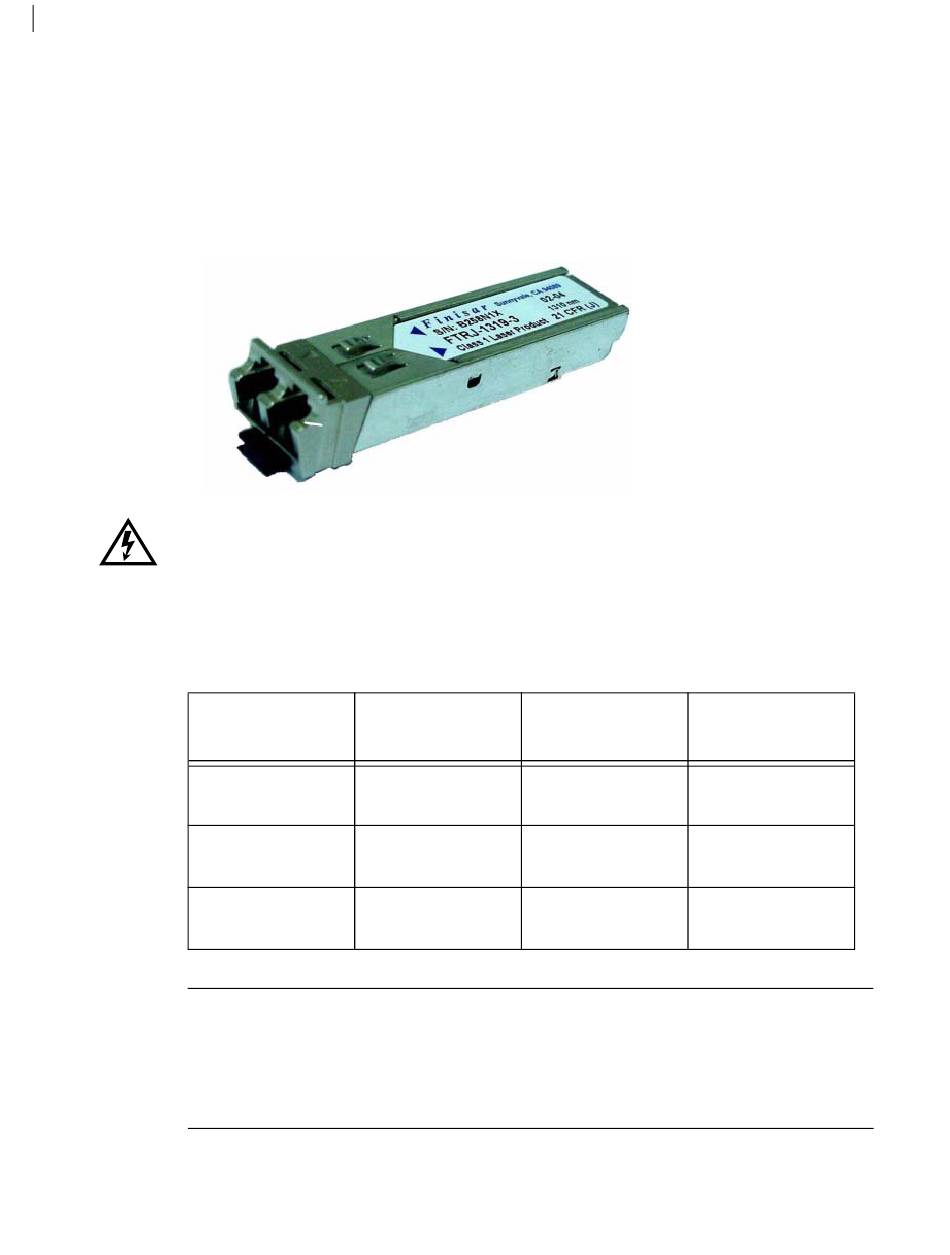

The following figure illustrates an SFP module:
Warning: Class I laser product.
You can use either of the following types of SFP depending on the
cable/fiber type you are using. You can purchase SFPs separately from
the NSG either from Harmonic or other sources. In this case it is strongly
recommended to purchase SFP models qualified by Harmonic:
Fiber/Cable
Connector Type
Type
Multi-mode fiber 2xLC
Single-mode 2xLC
fiber
UTP Cat-5 1xRJ-45
copper
Note: When using an SFP with a copper cable, enable the Auto
Negotiate and Last in Chain options via the Web client. Cascading is
unavailable and the automatic channel redundancy is activated only
when the alarm SFP not mounted appears. The copper SFP does not
trigger the GbE link down alarm.
Wave Length
850 nm Finisar FTRJ-
8519-7D
1310 nm Finisar FTRJ-
1310-3
N/A ____________
