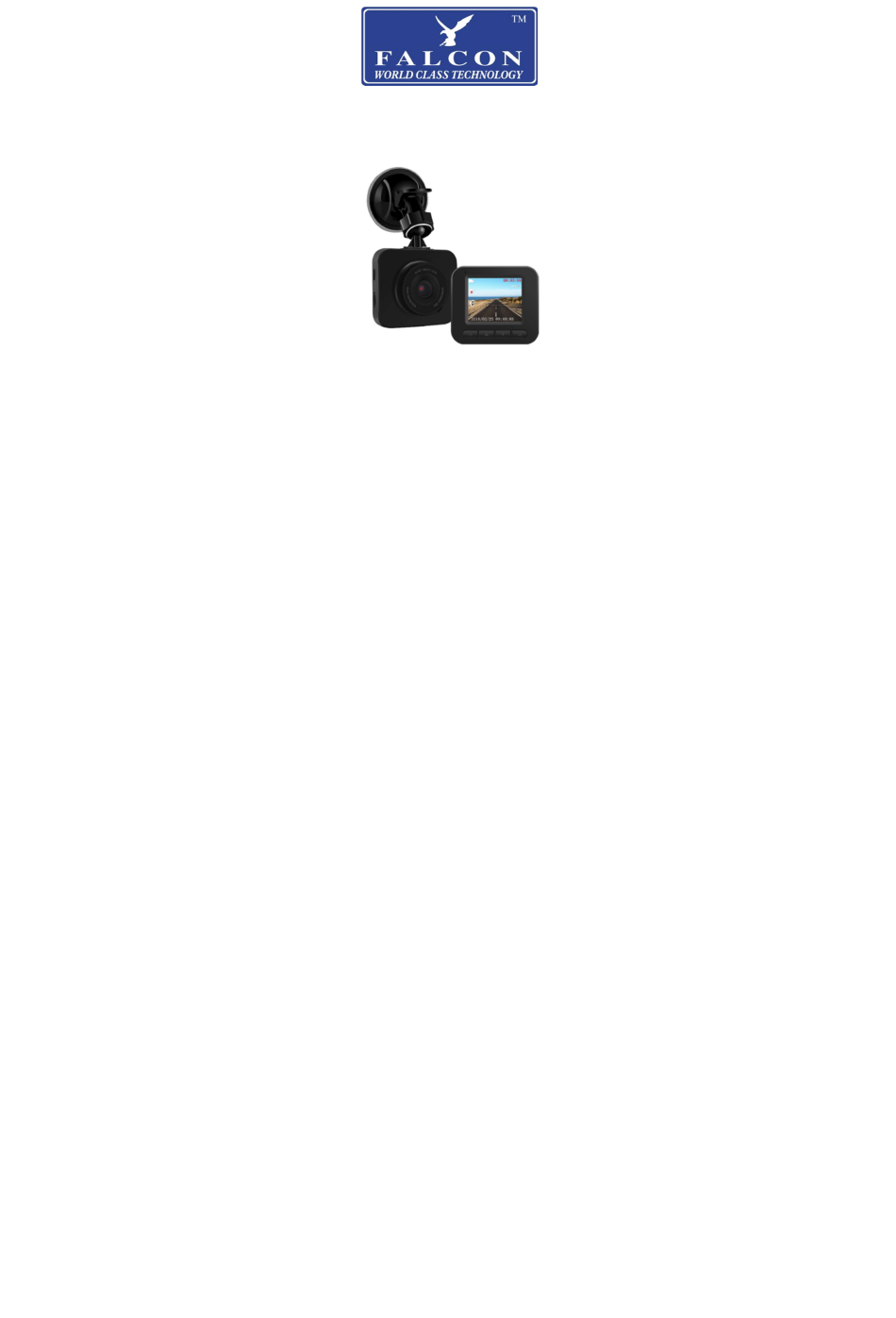

Product Introduction Thank you for purchasing the Falcon Dash Camera. To get the best out of your new camera please read this instruction manual before use. Notice Before Use 1. Please use a high-speed class 10 MicroSD card with a maximum size of 32GB.
STRUCTURE Lens Speaker Mode Up Down Menu USB Socket Power / OK MicroSD Card Slot FUNCTION 1. Cyclic Recording Cyclic recording, sometimes called loop recording allows the camera to record until the card is full and then start to overwrite the oldest recordings (except locked recordings).
4. Parking Wake When Parking Wake is enable the camera will automatically turn on and start recording if an impact to the car is detected such as someone bumping into the car when parked. The G-Sensor should be turned on at the most sensitive setting. Note that this function will only work while the camera is connected to external power.
8. Menu: In standby mode (camera not recording), short press the menu button to enter the main menu setting, short press UP/DOWN buttons to choose the option you need and short press the Power/OK button to confirm. Short press the Menu button to exit the menu.
Page 8
In playback mode, press the Menu button and select“lock this”to protect the selected file from being overwritten or “unlock this”to unlock the selected files. Select“unlock all”to unlock all the protected files on the memory card.
SETTINGS General settings In any mode, press the Menu button twice, to open the general settings menu. Time Setting Set date and time Auto Power Off Select the automatic power off delay time Screen savers Select the screen turning off delay time Beep sound Activate/Deactivate sounds when pressing buttons Browse settings using the UP/DOWN buttons and press the Power/OK button to edit...
Language Select the menu display language Flicker 50 Hz or 60 Hz Format Select to format the memory card Reset System Select to revert to factory settings Version Select to check the system firmware version...
Page 11
Video settings In video mode, press the Menu button. Resolution Select recording resolution Select recording split duration or deactivate the Cyclic Record cyclic recording function Adjust image exposure level Motion Activate/Deactivate motion detection trigger Detection recording...
Page 12
Parking wake Adjust sensitivity level for the parking mode Audio Activate/Deactivate recording with sound Date Tag Activate/Deactivate date stamp on the recording G Sensor Adjust sensitivity level for the gravity sensor Photo settings In photo mode, press the Menu button.
Page 13
Resolution Adjust photo resolution Sequence Activate/Deactivate burst shooting mode Image quality Adjust image quality Sharpness Adjust sharpness level White Balance Adjust the white balance according to the environment Select light sensitivity level Adjust image exposure level Anti-Shaking Activate / Deactivate image stabilizing...
Page 14
Fast View Select preview duration after taking a shot Date Tag Activate/Deactivate date and time stamp on the photo...
FAQ: Why does my camera indicate“SD card Full”? 1) Check that your memory card is a quality high speed Class 10 memory card. (Note: max card size is 32GB) 2) Check the Cyclic/Loop recording this function is turned on. 3) Check if the G-Sensor is on, if the G-sensor is triggered the current file is locked and cannot be overwritten, if there are too many locked files the card will be full.
