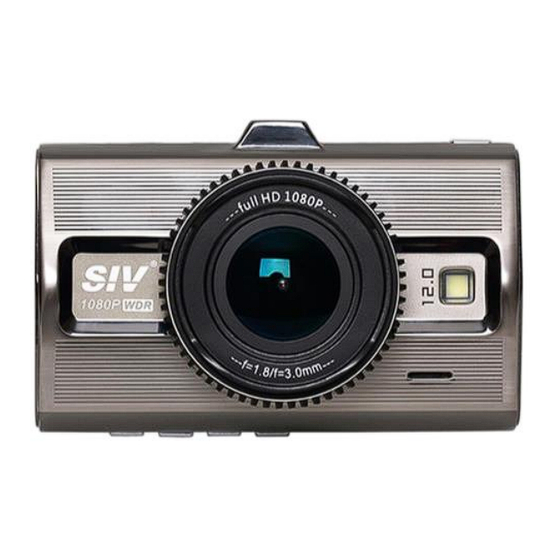

Prime 2/4 Cam DVR
Dash Cam
User Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prime 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Falcon Prime 2

  • Page 1 Prime 2/4 Cam DVR Dash Cam User Manual...
  • Page 2 Index 1. Features................13 2. Structure diagram..............13 3. Part description............14 4. Operation instruction............15 Power on/off..............15 Battery charging............15 Installing memory card...........15 Basic operation.............16 Mode................16 Video setup..............16 Setup................16 Parking monitor.............17 LDWS................17 FCWS................18 Rear camera setting...........18 System setup..............18 AV/HDMI port............19 USB port..............19 5. Specification............20...
  • Page 3: Features

    1. Features This model records video and takes photos during driving. It adopts dual Sony IMX322 sensor and Novatek 96663 chip-set, with excellent night vision performance. 1. Structure diagram...
  • Page 4: Part Description

    3. Part description 2. GPS/BV Outside Camera 3. AV-OUT 1. Mini USB Power Source 6. RIGHT 4. ON/OFF 5. OK/REC 9. HDMI 7. LEFT 8. MENU 12. MIC 10. SD card 11. Reset 15. Screen 13. Lens 14. LED Light Button description Button Description...
  • Page 5: Power On/Off

    Indicating light description Name Description When blue light flashes camera is recording video; When blue light stops flashing the recording stops. Indicating light When Red light is solid camera is charging; when red light turns off the battery is fully charged. 4.
  • Page 6: Installing Memory Card

    Installing memory card Push memory card into card slot per with metal on sd card facing forward. Remove memory card: Gently push the sd card inward a bit, and then it releases, remove it from card slot. Basic operations Mode: Must stop recording to get into menu screen Video mode: Is for recording videos Photo mode: Is for taking photos Playback mode: It for Reviewing videos and photos...
  • Page 7: Parking Monitor

    Must stop recording to get into menu screen Delay Time lapse when recording: 1 Second, 5 Seconds, 10 Seconds, Off Dual Cam Display (Used to determine which camera is to be viewed): Front, Behind, Both Setup Date/Time, Plate number, Auto power off, Beep sound, Language, Frequency, TV mode, Format, Default setting ,Version, Screen saver, Version Delete all, Lock all, Unlock all Video Mode Options...
  • Page 8: Ldws

    Lane Departure Warning System (LDWS) ON/OFF ON- You will see green lines on the screen. While driving, dash cam monitors distance between car and lane road markings via advanced chip set which process data to identify if car has deviated from lane. Once car deviates from lane, dash cam utters warning sound and a lane picture is displayed on screen.
  • Page 9: System Setup

    Video setup - Resolution setup To start dual camera recording, only resolution option is: “FHDP30+FHDP30”. Must stop recording to get into menu screen System setup Press M button to enter main menu, go to SETUP menu and select desired options via OK button. Return to main menu via RIGHT and LEFT button. System setup options Date/Time: Used to set Date and Time.
  • Page 10: Av/Hdmi Port

    Screen saver: Used to turn screen off while camera is still recording. off/30 seconds/1 minute/2 minutes Press any button to view screen. Delete all: Used to delete videos and photos: Delete all video, Cancel/OK Lock all: Used to lock videos and photos Lock all video, Cancel/OK Unlock all: Used to unlock videos and photos: Unlock all video, Cancel/ Ports AV-OUT/HDMI...
  • Page 11 Front 170 degree/Rear 140 degree 6G glass Lens: wide angle lens Resolution: FHD1080P@30FPS+FHD1080P@30FPS Lens pixel: Dual 2M Sony IMX322 Video format: H.264 MP4 Photo format: JPEG H.264@1080P 30fp/s Frame rate: H.264@720P 60fp/s H.264@720P 30fp/s G-sensor: 3-axis solid collision detection Record mode: Loop recording, time lapse recording Video interruption: 0ms,3s/5s/10s...
  • Page 12 720P=1280*720 /… 12M 4032*3024 10M 3648*2736 8M 3264*2448 Image resolution: 5M 2592*1944 3M 2048*1536 Working current: 450mA (typical value) (DC 5V) Quiescent current: 20uA (-20℃-70℃) Storage temperature:℃ ℃ (0℃-60℃) Operating temperature Operation humidity (RH) 15%-60% RH Battery: Li-polymer battery 300mAH Lane Departure Warning System LDWS Front Collision Warning System...
