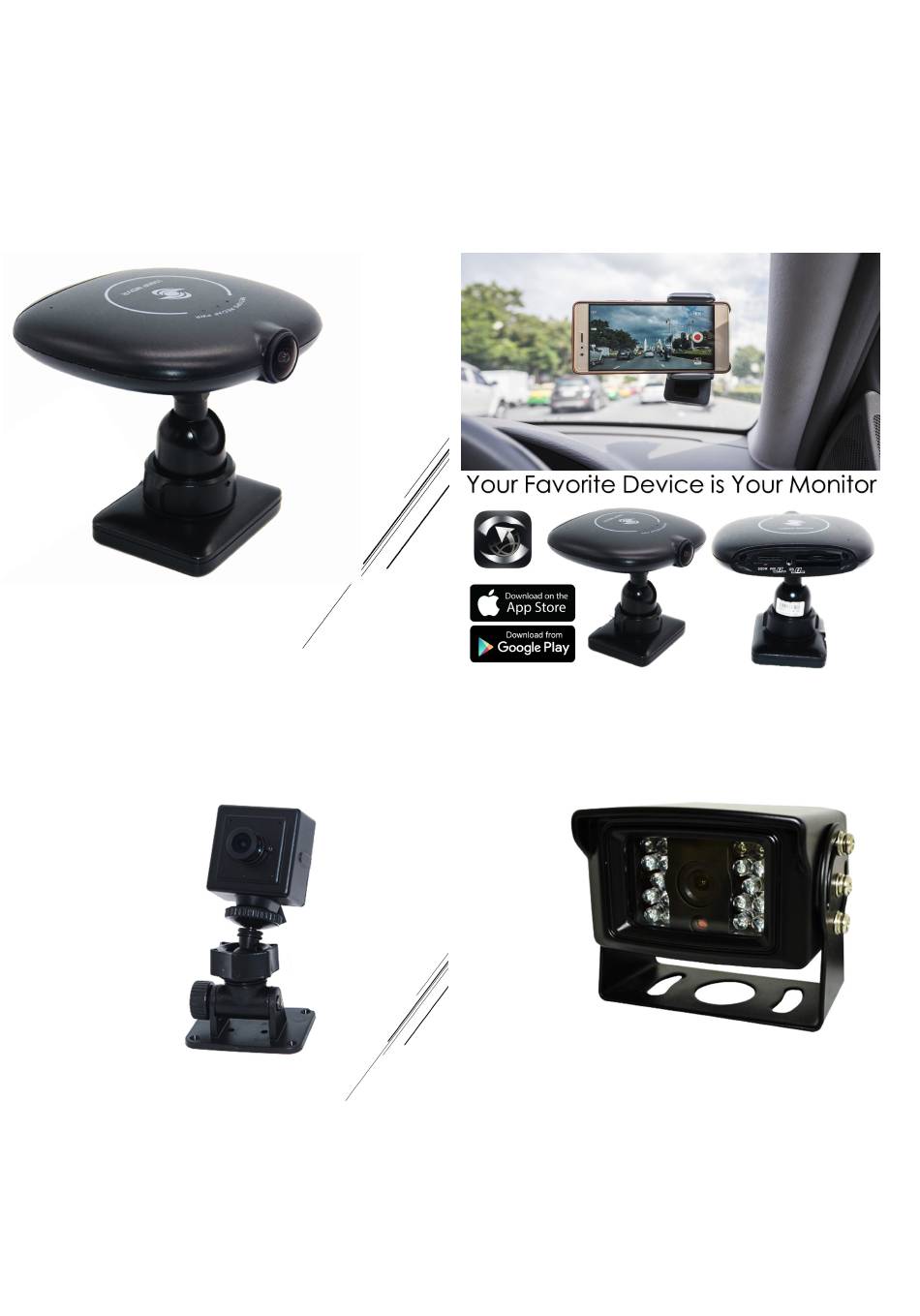

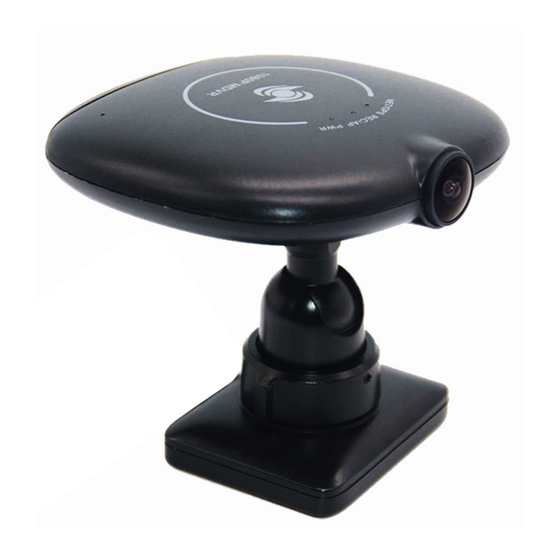

- Page 1 FalconEye 4G Dash Cam with WIFI, GPS, Live Streaming with *2nd Camera Option Instructional Manual *Optional 2nd camera choices V 2.0 English 2017.5.1...
- Page 2 M21 HD dual recorder Menu 1 Version ........Error! Bookmark not defined. 2 Brief instruction ......Error! Bookmark not defined. 3 Product description ......Error! Bookmark not defined. 3.1 Product summary ............ 3 3.2 Product main function ....Error! Bookmark not defined. 4 Device specification ..........
- Page 3 FalconEye 4G HD dual recorder Important security rules and prompt ！Warning Please read warnings before setting up and using this product: Should not be put on where rained or other corrosive liquid pureed for long time. Keep far from heat source, strong magnetic field and dust.
- Page 4 FalconEye 4G HD dual recorder Key features: ➢ Newest technology of video and audio compression ➢ Professional and stable file system ➢ Built-in 4G, WIFI modules ➢ Support dual SD cards storage, read/write convenient and fast ➢ Professional playback analyst software, video/audio synchronous playback ➢...
- Page 5 FalconEye 4G HD dual recorder Device specification This chapter introduce function summary, features, detailed specification of the device. Device Instructions 2.1.1 Summary Built-in a set of video coding chips, fulfill system coding, video storage and more. System diagram below: Internal Network （3/4G、WIFI）...
- Page 6 FalconEye 4G HD dual recorder 2.2 Definition of indicator light status and sockets: 1：Support dual SD cards recording 2：Support nano SIM card 3：MODE key switch network (press button) Indicator light status as below: Manual...
- Page 7 FalconEye 4G HD dual recorder Power on：POWER light is on, when blue or green light Press Mode button to switch as below: 3G/4G+AP mode：NET light green, blinking WIFI+3G/4G mode：NET light red, blinking After network dialing success, will continue to blink once per second, Upload server success, will blink once every two seconds REC/AP light is red and on: Video lost;...
- Page 8 FalconEye 4G HD dual recorder 2.3： Steps to configure using mobile device 1.0 Download CMSV6 APP, Once downloaded go ahead and close app 2.0 On Main Device press mode button to Switch network mode as 3G/4G/+AP until light is blinking as chapter 2.2 described.
- Page 9 FalconEye 4G HD dual recorder Once you select FIND, you will be able to view your cam(s). 5.0 Select Settings to configure / verify that device settings are entered correctly. Configure CMS server IP and port: Ignore the localnet configuration 6.0 Configure WIFI encryption mode as: WPA2-PSK, encryption type as: AES...
- Page 10 FalconEye 4G HD dual recorder 7.0 Select network 3G/4G configuration, ignore other parameters. Once settings are Set correctly. Exit out of APP and disconnect from MDVR device WIFI network. Re-open same CMSV6 mobile APP and Login with credentials. Manual...
