Gold 1080P 2-4 Dash Camera Quick Start Guide

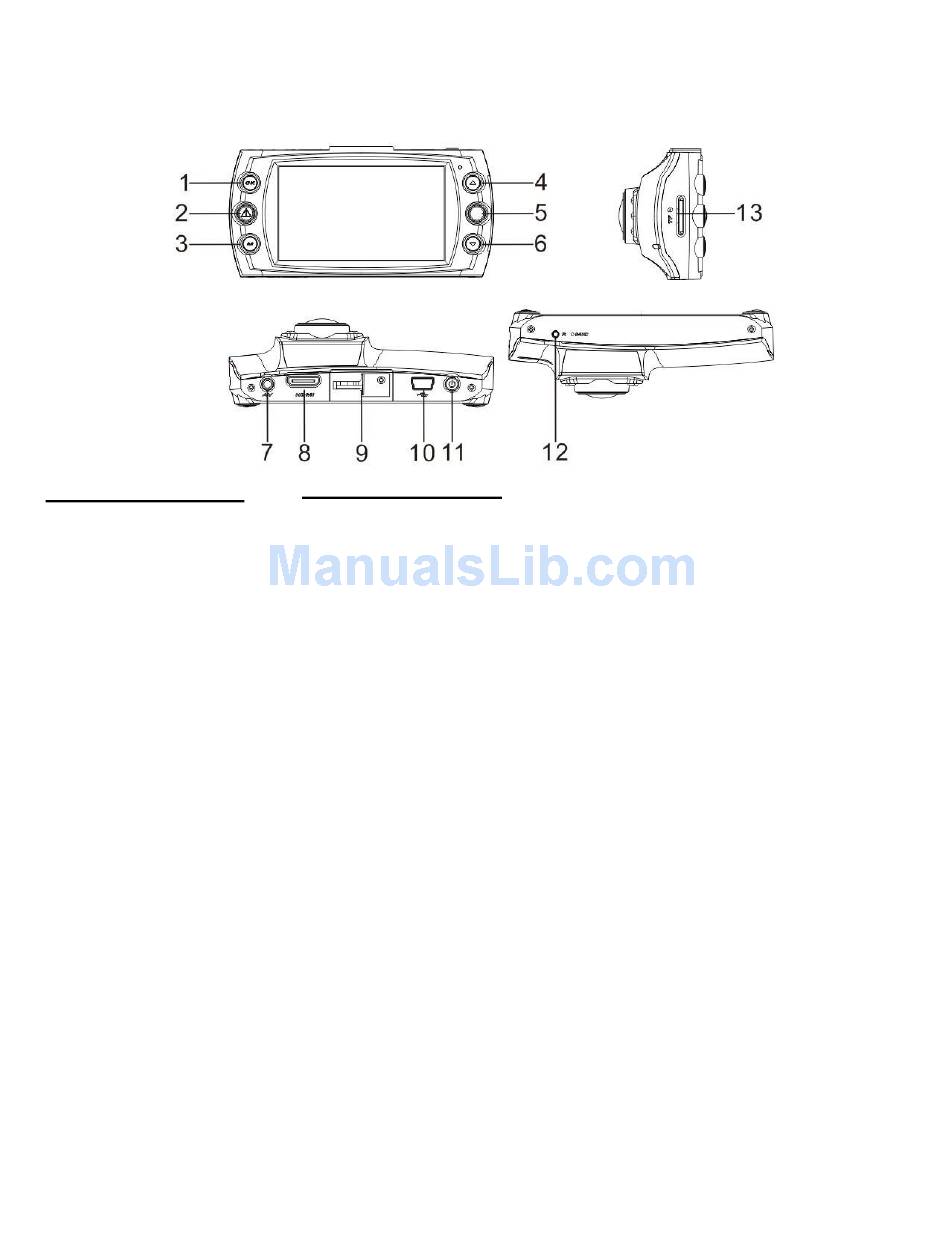

DESCRIPTION OF BUTTONS
1. OK
2. Manual Lock
3. Menu
4. Up arrow
5. Park Monitor
6. Down arrow
7. Outside Camera Port
8. HDMI
9. Mount Entry
10. USB PORT
11. Power Key
12. Master Reset
13. SD card slot
INITIAL STARTUP SETTINGS
It is recommended that you FORMAT SD cards.
•Pressing top left "ok" button, make sure camera is not recording.
•Once camera is not recording, press bottom left, "m" button
•On menu screen, using top right arrow button, press 3x or until you have
highlighted "Format" Press top left "ok" button- press top right arrow button to
highlight "ok" option and the press top left
"ok" button to format card. SD card is now formatted and if you format SD card in
the future, it will erase everything that is currently on card.
Setup instructions to keep dash camera from freezing:
•Pressing top left "ok" button, make sure camera is not recording.
•Once camera is not recording, press bottom left, "m" button
•Press the bottom right down arrow button until "Move Detect" is highlighted
•Press top left "ok" button to make sure box is not checked
•Press the bottom right down arrow button until "Park Monitor" is highlighted
•Press top left "ok" button to make sure box is not checked
•Using bottom right down arrow, highlight G-Sensor.
•Press top left "ok" button and use arrow buttons to highlight "low" and select
using top left "ok" button to check "low" setting box.
You are now done with basic initial setup
•Press bottom left "m" button to get back to your main video recording mode.
•Press top left "ok" button to start recording
Master Reset button is located on bottom side of camera:
Using a safety pin, thumbtack, toothpick, etc. Press button
for a master reset of dash camera.
Advertisement
Related Manuals for Falcon Prime 2
Summary of Contents for Falcon Prime 2
- Page 1 Gold 1080P 2-4 Dash Camera Quick Start Guide INITIAL STARTUP SETTINGS DESCRIPTION OF BUTTONS It is recommended that you FORMAT SD cards. 1. OK •Pressing top left “ok” button, make sure camera is not recording. 2. Manual Lock •Once camera is not recording, press bottom left, “m” button 3. Menu •On menu screen, using top right arrow button, press 3x or until you have 4. Up arrow highlighted “Format” Press top left “ok” button- press top right arrow button to 5. Park Monitor highlight “ok” option and the press top left 6. Down arrow “ok” button to format card. SD card is now formatted and if you format SD card in 7. Outside Camera Port the future, it will erase everything that is currently on card. 8.
- Page 2 Setting Date and Time: Make sure camera is not recording Short press “Menu” button Short press “DOWN” 14 times or until “Date” is h ighlighted Short press “OK” button Short press “UP” or “DOWN” to change year if needed Viewing Videos & Pictures: Make sure camera is in not recording Long press “Menu” button for 3 to 5 seconds this will put your camera into photo mode (Symbol in the upper left-hand corner should change from a red video camera to a white square. Long press “Menu” button for 3 to 5 seconds again and camera will switch into video play back mode (The symbol in the upper left-hand corner should change to a light blue square with a play arrow inside) Short press the “UP” or “DOWN” button to scroll through videos and p ictures Short press “OK” button to play videos Short Press “Menu” button to delete videos (That are not locked) and p ictures Picture in Picture (Second/Outside Camera Control): Make sure camera is in not r ecording Plug the outside camera into the “Outside Camera Port “(A small picture should appear in the upper right-hand...
