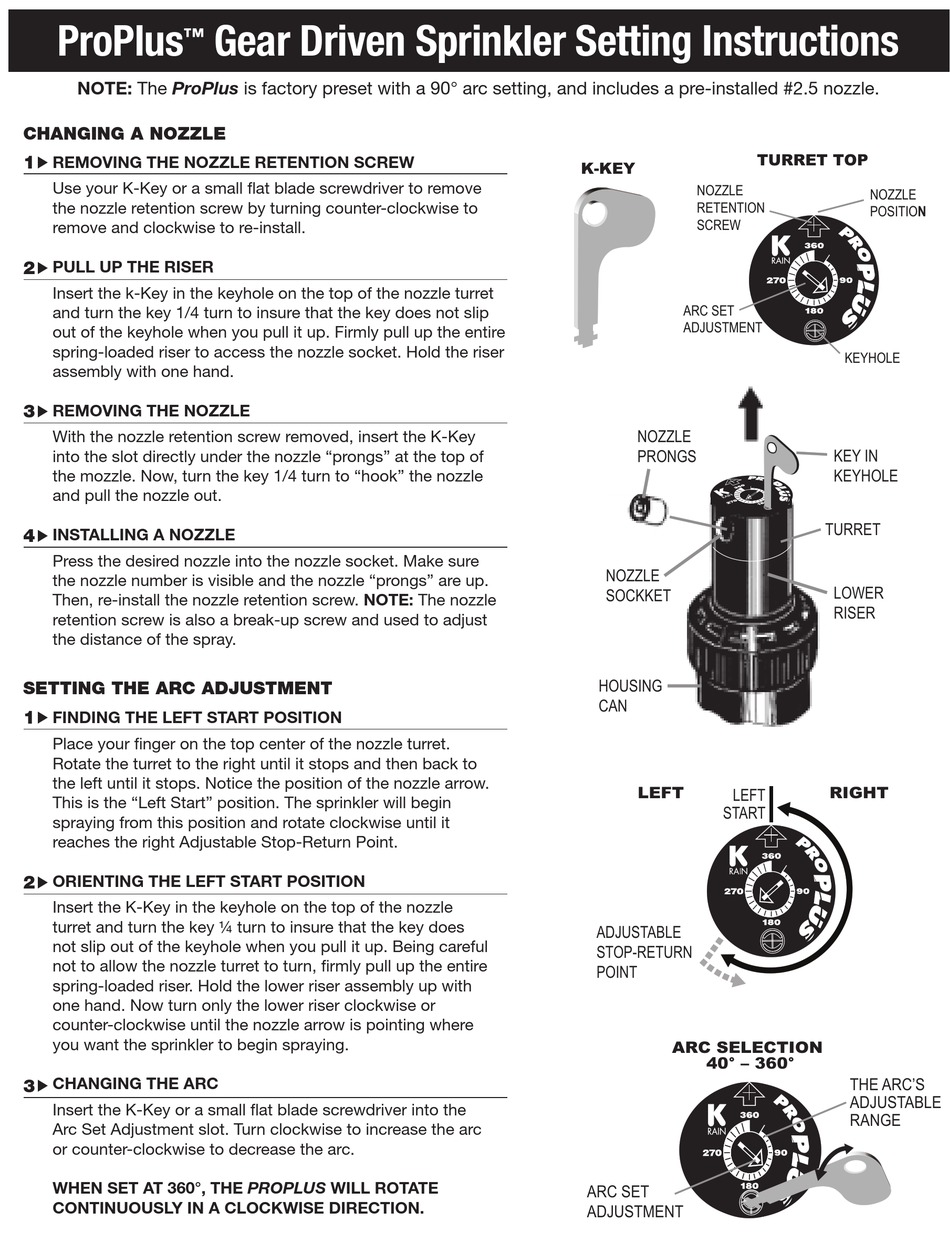

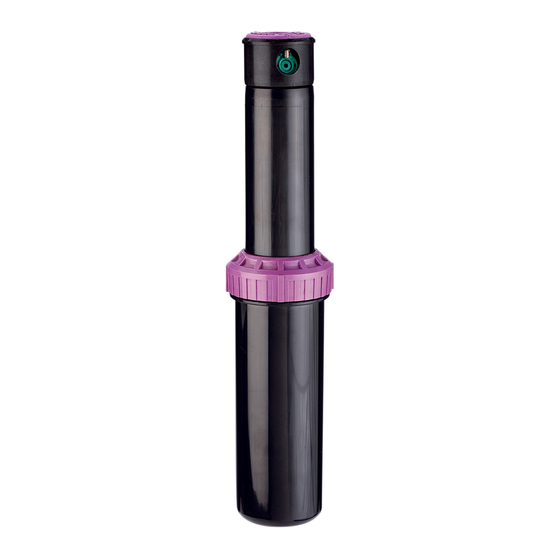

K-Rain ProPlus Setting Instructions

ProPlus
™
NOTE: The ProPlus is factory preset with a 90° arc setting, and includes a pre-installed #2.5 nozzle.
CHANGING A NOZZLE
1
REMOVING THE NOZZLE RETENTION SCREW
Use your K-Key or a small flat blade screwdriver to remove
the nozzle retention screw by turning counter-clockwise to
remove and clockwise to re-install.
PULL UP THE RISER
2
Insert the k-Key in the keyhole on the top of the nozzle turret
and turn the key 1/4 turn to insure that the key does not slip
out of the keyhole when you pull it up. Firmly pull up the entire
spring-loaded riser to access the nozzle socket. Hold the riser
assembly with one hand.
3 REMOVING THE NOZZLE
With the nozzle retention screw removed, insert the K-Key
TWIST
into the slot directly under the nozzle "prongs" at the top of
LOCK TOP
the mozzle. Now, turn the key 1/4 turn to "hook" the nozzle
and pull the nozzle out.
4 INSTALLING A NOZZLE
SPRINKLER
Press the desired nozzle into the nozzle socket. Make sure
ASSEMBLY
the nozzle number is visible and the nozzle "prongs" are up.
Then, re-install the nozzle retention screw. NOTE: The nozzle
retention screw is also a break-up screw and used to adjust
the distance of the spray.
HOUSING
SETTING THE ARC ADJUSTMENT
CAN
1
FINDING THE LEFT START POSITION
Place your finger on the top center of the nozzle turret.
Rotate the turret to the right until it stops and then back to
the left until it stops. Notice the position of the nozzle arrow.
This is the "Left Start" position. The sprinkler will begin
LEFT
spraying from this position and rotate clockwise until it
reaches the right Adjustable Stop-Return Point.
ORIENTING THE LEFT START POSITION
2
Insert the K-Key in the keyhole on the top of the nozzle
turret and turn the key ¼ turn to insure that the key does
ADJUSTABLE
not slip out of the keyhole when you pull it up. Being careful
STOP-RETURN
not to allow the nozzle turret to turn, firmly pull up the entire
POINT
spring-loaded riser. Hold the lower riser assembly up with
one hand. Now turn only the lower riser clockwise or
counter-clockwise until the nozzle arrow is pointing where
you want the sprinkler to begin spraying.
CHANGING THE ARC
3
Insert the K-Key or a small flat blade screwdriver into the
Arc Set Adjustment slot. Turn clockwise to increase the arc
or counter-clockwise to decrease the arc.
WHEN SET AT 360°, THE PROPLUS WILL ROTATE
CONTINUOUSLY IN A CLOCKWISE DIRECTION.
Gear Driven Sprinkler Setting Instructions
K-KEY
TWIST
LOCK TOP
P
SPRINKLER
ASSEMBLY
Q
TWIST
LOCK TOP
HOUSING
CAN
SPRINKLER
ASSEMBLY
RIGHT
LEFT
START
HOUSING
ADJUSTABLE
CAN
STOP-RETURN
POINT
LEFT
LEFT
START
ADJUSTABLE
STOP-RETURN
POINT
NOZZLE
RETENTION
SCREW
K-KEY
K-KEY
ARC SET
ADJUSTMENT
K-KEY
TWIST
LOCK TOP
TWIST
LOCK TOP
P
SPRINKLER
ASSEMBLY
Q
HOUSING
CAN
P
LEFT
LEFT
LEFT RIGHT
LEFT
ARC SELECTION
START
START
Q
ADJUSTABLE
STOP-RETURN
POINT
ARC SET
ADJUSTMENT
RIGHT
TURRET TOP
NOZZLE
POSITION
TURRET TOP
NOZZLE
NOZZLE
RETENTION
RETENTION
SCREW
SCREW
KEYHOLE
TURRET TOP
ARC SET
ARC SET
ADJUSTMENT
NOZZLE
ADJUSTMENT
RETENTION
SCREW
NOZZLE
PRONGS
ARC SET
ADJUSTMENT
SPRINKLER
ASSEMBLY P
NOZZLE
SOCKKET
NOZZLE
SOCKKET
Q
HOUSING
NOZZLE
HOUSING
CAN PRONGS
HOUSING
CAN
CAN
LEFT
LEFT
RIGHT
NOZZLE
START
ARC SELECTION
40° – 360°
SOCKKET
THE ARC'S
ADJUSTABLE
RANGE
HOUSING
ARC SET
ADJUSTABLE
ARC SET
CAN
ADJUSTMENT
STOP-RETURN
ADJUSTMENT
POINT
ARC SELECTION
40° – 360°
ARC SET
ADJUSTMENT
K-KEY
TURRET TOP
NOZZLE
NOZZLE
POSITION
POSITION
NOZZLE
POSITION
KEYHOLE
KEYHOLE
KEY IN
KEYHOLE
NOZZLE
NOZZLE
PRONGS
PRONGS P
KEYHOLE
TURRET
TURR
LOWER
NOZZLE
Q
RISER
SOCKKET
KEY IN
HOUSING
KEYHOLE
CAN
TURRET
RIGHT
ARC SELECTION
40° – 360°
LOWER
40° – 360°
THE A
THE ARC'S
RISER
ADJU
ADJUSTABLE
RANG
RANGE
ARC S
ADJU
THE ARC'S
ADJUSTABLE
RANGE
N
R
S
AR
AD
KEY
KEY
LOW
RISE
