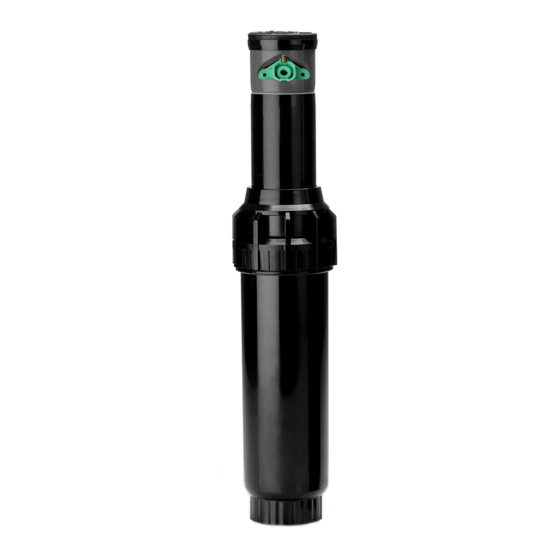

K-Rain ProSport 14003 Setting Instructions

ProSport
™
NOTE: The ProSport is factory preset with a 180° arc setting, and includes a pre-installed #10 nozzle.
CHANGING A NOZZLE
1
REMOVING THE NOZZLE RETENTION SCREW
Use the (B) end of the key to remove the nozzle retention
screw (L) by turning counter-clockwise to remove and
clockwise to re-install.
PULL UP THE RISER
2
Insert the (A) end of the key in the keyhole (J) on the top
of the nozzle turret (D) and turn the key 1/4 turn to insure
that the key does not slip out of the keyhole when you
pull it up. Firmly pull up the entire spring-loaded riser to
access the nozzle socket (E). Hold the riser assembly up
with one hand.
3 REMOVING THE NOZZLE
Using a pair of needle-nose pliers, grasp the nozzle
on the side of the outer ring and pull the nozzle out.
4
INSTALLING A NOZZLE
Press desired nozzle into the nozzle socket. Make sure
the nozzle number is visible and the nozzle "prongs"
are up. Then, re-install the nozzle retention screw.
NOTE: The nozzle retention screw is also a break-up
screw and used to adjust the distance of the spray.
SETTING THE ARC ADJUSTMENT
FINDING THE LEFT START POSITION
1
Place your fingers on the top center of the nozzle turret.
Rotate the turret to the right until it stops and then back
to the left until it stops. Notice the position of the nozzle
arrow. This is the "Left Start" position. The sprinkler will
begin spraying from this position and rotate clockwise
until it reaches the right Adjustable Stop-Return Point.
ORIENTING THE LEFT START POSITION
2
Insert the (A) end of the key in the keyhole (J) on the top
of the nozzle turret (D) and turn the key 1/4 turn to insure
that the key does not slip out of the keyhole when you pull
it up. Being careful not to allow the nozzle turret to turn,
firmly pull up the entire spring-loaded riser. Hold the lower
riser assembly up with one hand. Now turn only the lower
riser clockwise or counter-clockwise until the nozzle arrow
is pointing where you want the sprinkler to begin spraying.
CHANGING THE ARC
3
Insert end of the key (B) into Arc Set Adjustment slot (M).
Turn clockwise to increase the arc or counter-clockwise
to decrease the arc. NOTE: The arc set arrow in the center
of the nozzle turret rotates to show the current setting.
WHEN SET AT 360°, THE PROSPORT WILL ROTATE
CONTINUOUSLY IN A CLOCKWISE DIRECTION.

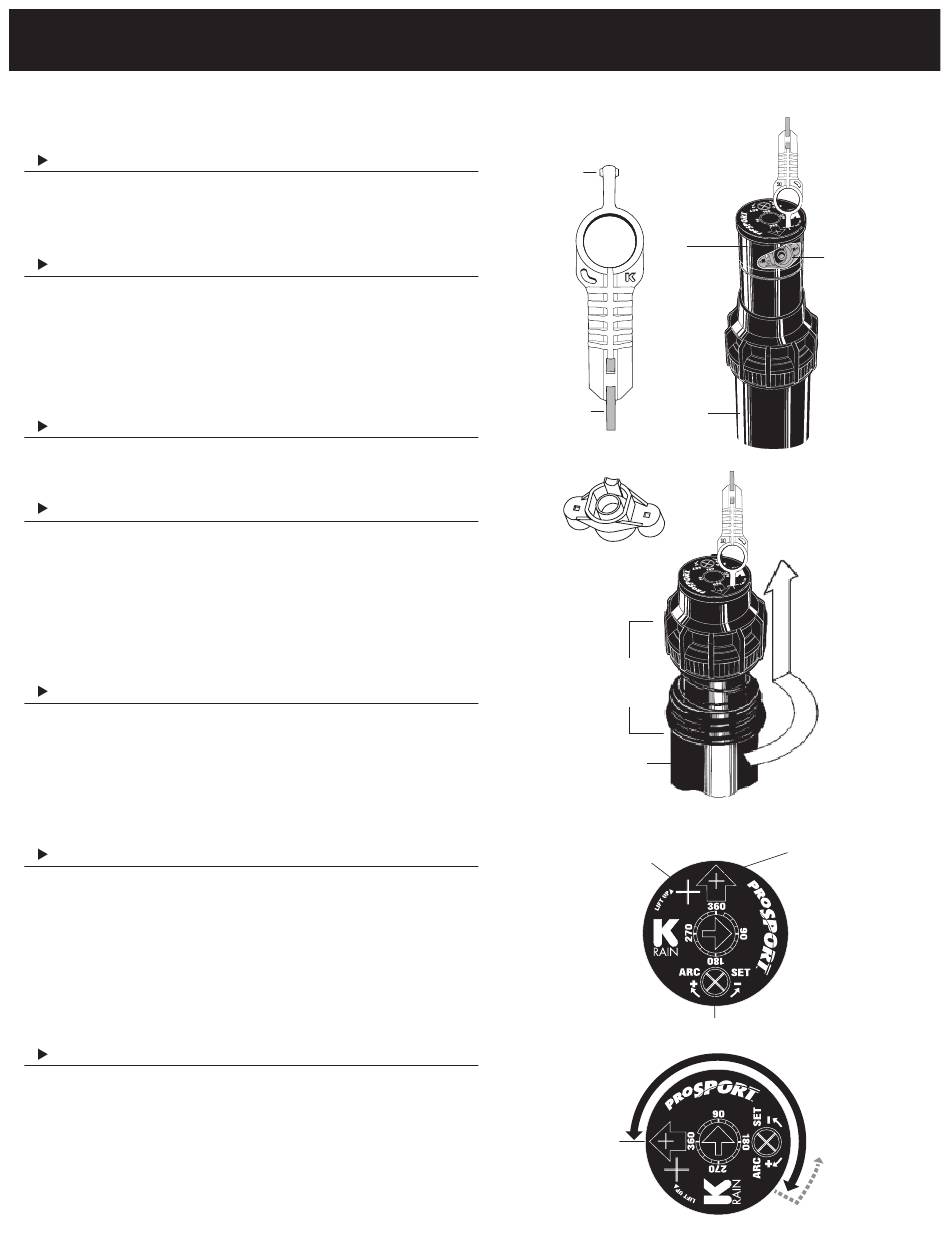

Gear Driven Sprinkler Setting Instructions
Key
C Key in Keyhole
A
D
Nozzle
Turret
B
F
Can
G Nozzle
I Sprinkler
Assembly
F
Can
K Nozzle Turret
J Keyhole
M Arc Set Adjustment
Left
Start
E Nozzle
Socket
H Key in Keyhole
L Nozzle
Retention
Screw
Adjustable
stop-return point
