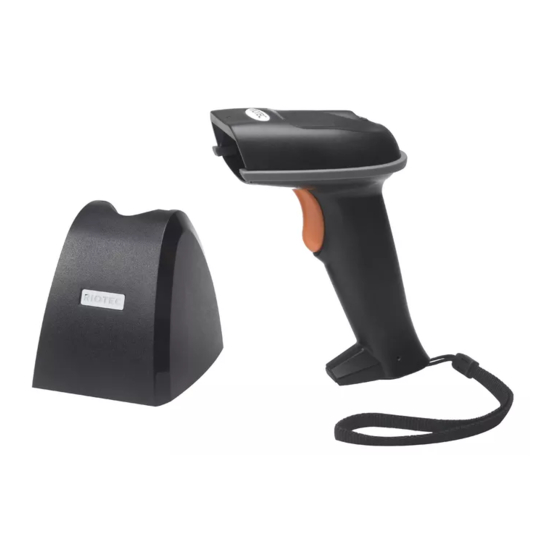

RIOTEC iLS6302NBQ Programming Quick Manual

P r o g r a m m i n g Q u i c k G u i d e
- i L S 6 3 0 2 N B Q
- i L S 6 3 0 2 N B M

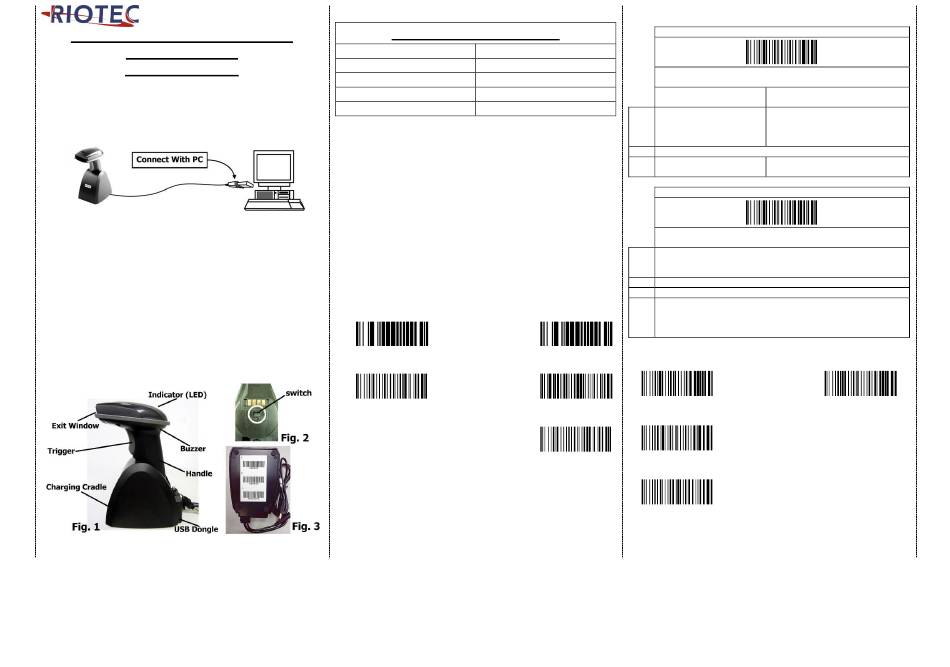

Connecting the Scanner

Be sure that PC is turned OFF, before Connect scanner cable to
the PC USB port on the PC as below described, Ensure that all
connections are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time
before use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle
within Bluetooth radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan
the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 From 1 to 3).
4. Charging issue: Cradle works as charger when putting scanner on
it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully
* Note: Please install PL-2303 driver for iLS6302NBM

LED Indicator Information

Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Orange LED ON Good read (Batch mode)
Remark:
* When the battery power is too low, the Orange LED will flash
and beep once. Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully
before turning it back on.
* Under power-saving mode, there will not be LED indication when
charging.

Reset Configuration to Defaults

(scan from A1 to A2 for iLS6302NBQ or B1 to B3 for iLS6302NBM)
iLS6302NBQ
A1
A2
* Note: Please install PL-2303 driver for iLS6302NBM
1
There are two operating modes on the scanner
It is a necessary to scan "clean memory data" when
switching between these two modes.
Within Bluetooth radio
range
Data Transmit data to PC/terminal
read directly
Green/ Orange LED flashes
LED
followed by 3 beeps.
It is a necessary to scan "clean memory data" when switching
between these two modes.
Save data directly to scanner's memory, It will transmit the data to PC/
Data
terminal after you scan the Transmit memory data code. To delete
read
data please scan the Clean memory data code.
LED Green/Orange LED flashes followed by 3 beeps.
Always Clean memory data before switching to Data Transmission
Mode.
iLS6302NBM
Otherwise Red/ Orange LED will flash with one long beep and will not
switch modes.
B1
Under Data storage Mode
The data can be keep or delete by option after transmit
B2
Demo
Demo
Keep the data
(Default)
B3
Transmit memory data
%R%E%C
%D%F%T
Green/Orange LED Flashes followed by 3 beeps
Clean memory data
%E%R%A
Green/Orange LED flashes followed by 3 beeps
The barcode data which is stored in the memory will be deleted.

1.Data Transmission mode (Default)

Beyond Bluetooth radio range
Save data into scanner's memory,
scanner will transmit data to PC/
terminal automatically when back to
Bluetooth radio range.
Enter Data Storage mode
Demo

2.Data Storage mode (Batch Mode)

%M%A%N
Enter Data Transmission mode
Delete the data
