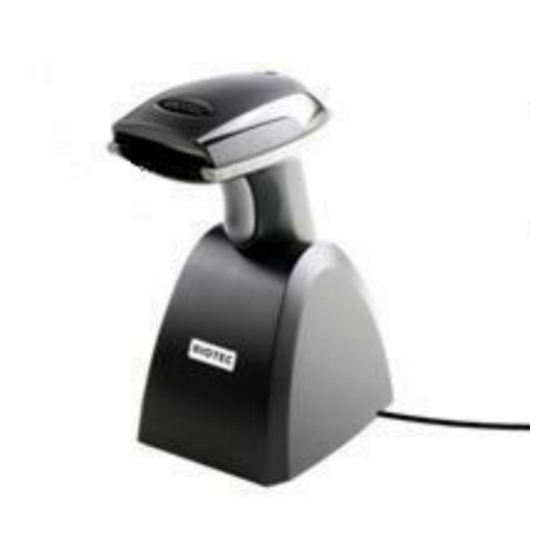

RIOTEC iLS6300DBU Programming Quick Manual

P r o g r a m m i n g Q u i c k G u i d e
-iLS6300DBU/iLS6300DB

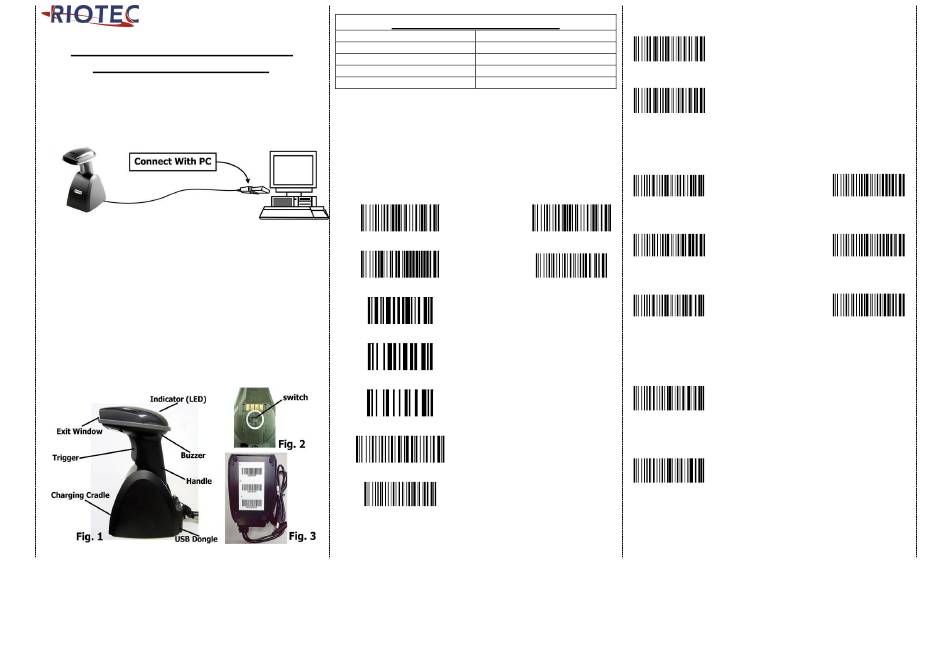

Connecting the Scanner

Be sure that PC is turned OFF, before Connect scanner cable to
the PC USB port on the PC as below described, Ensure that all
connections are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time
before use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle
within Bluetooth radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan
the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 From 1 to 3).
4. Charging issue: Cradle works as charger when putting scanner on
it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully
* Note: Please install PL-2303 driver for iLS6300DB

LED Indicator Information

Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Not read
Red LED Continual ON Off line / out of service
Green LED ON Good read
Remark:
* When the battery power is too low, the Orange LED will flash and beep
once. Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before
turning it back on.
*
Under power-saving mode, there will not be LED indication when charging.

Reset Configuration to Defaults

(scan from A1 to A7 for iLS6300DBU or B1 to B2 iLS6300DB)
iLS6300DBU
A1 B1
A2 B2
A3
%SETUP
A4
A5
A6
A7
* Note: Please install PL-2303 driver for iLS6300DB
%%%END
1

Trigger Mode

Trigger always
(Trigger available at any time)
Demo
Trigger standard (Default)
(Trigger available, after data sent to the
device)
%R%T%D

Transmission Speed

Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.
iLS6300DB
High-speed
Transmission
Middle-speed
Transmission
(Default)
Slow-speed
Transmission

Bluetooth Auto-connection

Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
power-saving mode.
Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner
will stop sending auto-connection signal to
device after 2 minutes. During this time, it will
not enter power-saving mode.
Once you are back within range, press trigger to
connect to the device. (Default)
Ultra Slow-speed
1 transmission
Ultra Slow-speed
2 transmission
Ultra Slow-speed
3 transmission
