Installation

This appliance is intended to be used in
household and similar applications such as:
– Staff kitchen areas in shops, offices and
other working environments.
– Farm houses and by clients in hotels,
motels and other residential type
environments.
– Bed and breakfast type environments.
– Catering and similar non-retail
applications.
This refrigerator is not approved for use
as a free standing refrigerator. Incorrect
installation, adjustment, alteration or
maintenance of this refrigerator can cause
personal injury, property damage or both.
Obey the instructions in this manual to install
the refrigerator.
Do not install the refrigerator directly on
carpet. Put the refrigerator on a metal or
wood panel that extends the full width and
depth of the refrigerator.
Do not allow anything to touch the
refrigerator cooling system.
Make sure the electrical installation obeys all
applicable codes. Do not bypass or change
the refrigerator's electrical components or
features.

What's in the Box

Make sure you have the following listed items
included in the packaging. If any item is
damaged or missing, contact your dealer.
● Refrigerator
● Instruction Manual
● Warranty Card
● Ice Tray

Install the Refrigerator

CAUTION: Do not lift or drag the refrigerator
doors during installing, damage to the
refrigerator can result. Furrion recommends
you have another person to assist during
installation process.
1. Select a suitable position where you are
going to install your refrigerator.
2. Mark and cut out an open area on the wall
according to the dimensions outlined in
Fig. 1.

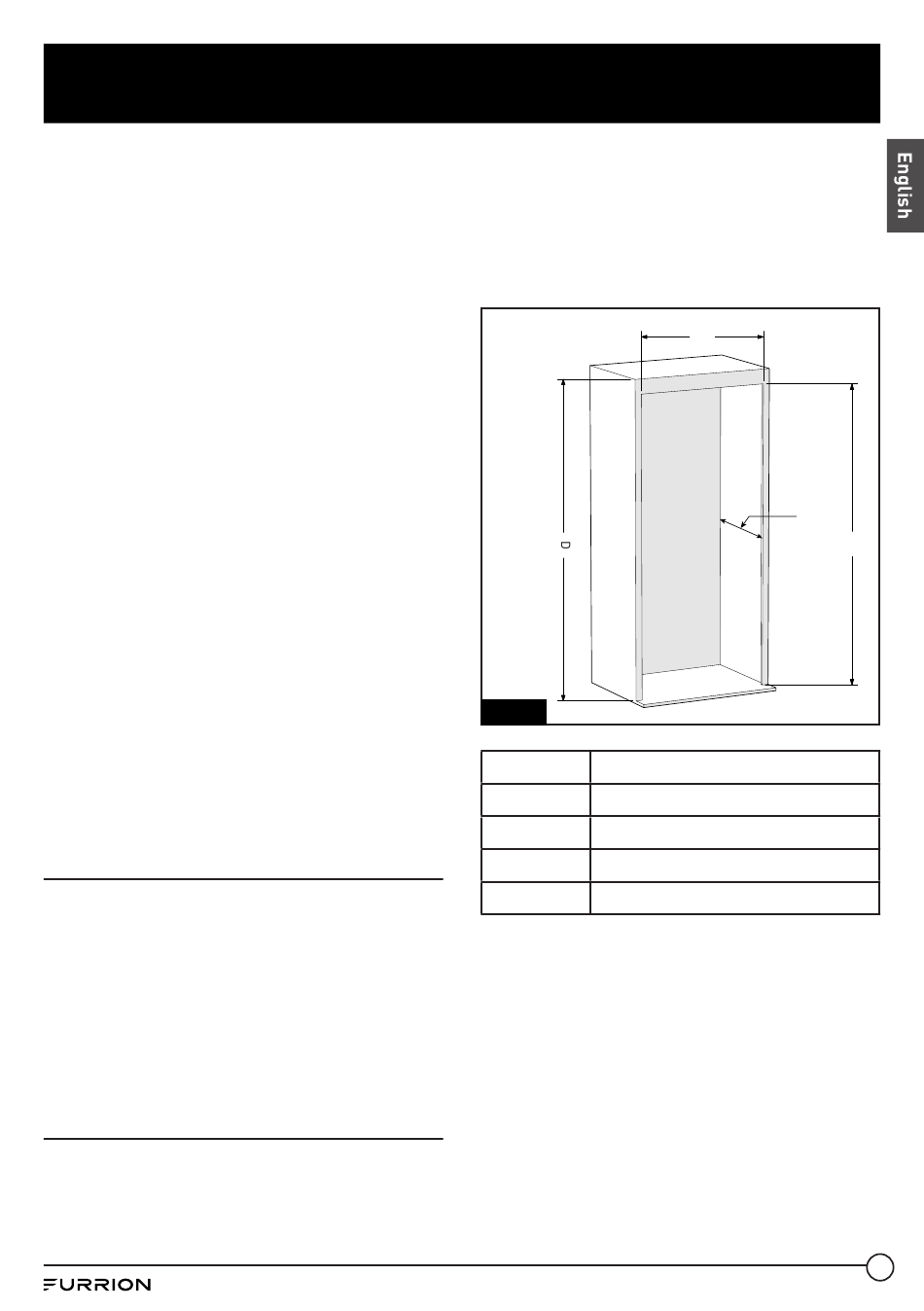

Fig. 1
Item
A 7211/16" (1846mm)
B 313/4" (806mm)
C 2213/16" (580mm) min.
D 753/8" (1915mm) min.
3. Drill a 11/2" hole on the vehicle wall using
a hole saw. (Fig. 2) Extend the power
cord from the to cutting hole and connect
to the refrigerator (see "Electrical
Connection" section for detail)
CAUTION: Ensure there are no electrical
cables, gas lines, pipes or other important
parts behind the wall where the drill
holes will be.
B
C
A
Dimension
8
