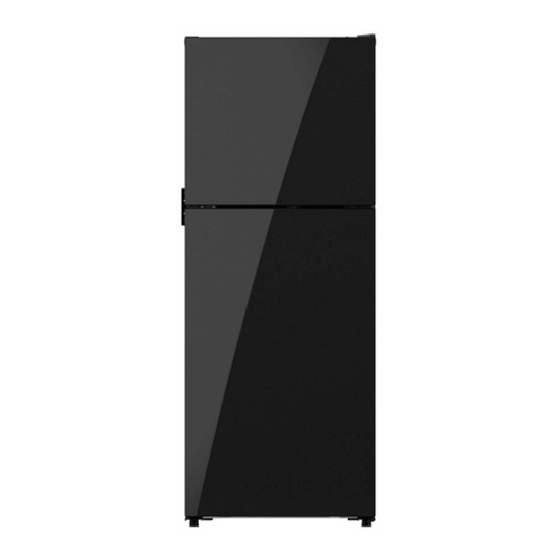

Arctic 10.6 cu. ft. 12v dc rv refrigerator

Advertisement

ARCTIC 10.6 CU. FT. 12V(DC) RV REFRIGERATOR
ARCTIC 10,6 PI. CU. RÉFRIGÉRATEUR 12 V (CC) VR
REFRIGERADOR ARCTIC DE 10.6 FT³ 12 V (CC) PVR
MODEL/ MODÈLE/ MODELO (LIPPERT PN):
FCR11DCGTA-BG-LHH (2023136439)
FCR11DCGTA-BG-RHH (2023136440)
FCR11DCGTA-SG-LHH (2023136437)
FCR11DCGTA-SG-RHH (2023136438)
INSTRUCTION MANUAL - MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
Glass Black
* Picture shown here is for reference only.
* L'image présentée ici n'est utilisée qu'à titre de référence.
* La imagen que se muestra aquí es solo de referencia.
Glass Stainless Steel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCR11DCGTA-BG-LHH and is the answer not in the manual?

Questions and answers

John Roberts
June 1, 2025

What is the freezer capacity

1 comments:
Mr. Anderson
June 1, 2025

The freezer capacity of the Furrion FCR11DCGTA-BG-LHH is not specified in the provided information.

This answer is automatically generated

Summary of Contents for Furrion FCR11DCGTA-BG-LHH

  • Page 1 ARCTIC 10.6 CU. FT. 12V(DC) RV REFRIGERATOR ARCTIC 10,6 PI. CU. RÉFRIGÉRATEUR 12 V (CC) VR REFRIGERADOR ARCTIC DE 10.6 FT³ 12 V (CC) PVR MODEL/ MODÈLE/ MODELO (LIPPERT PN): FCR11DCGTA-BG-LHH (2023136439) FCR11DCGTA-BG-RHH (2023136440) FCR11DCGTA-SG-LHH (2023136437) FCR11DCGTA-SG-RHH (2023136438) INSTRUCTION MANUAL - MANUEL D’INSTRUCTION...
  • Page 2: Table Of Contents

    Thank you and congratulations on purchasing this Furrion product. Before operating your new product, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the product. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury.
  • Page 3: Important Safety Instructions

    Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your refrigerator. WARNING 1.
  • Page 4 7. WARNING - Do not use electrical appliances inside the food storage compartments of the refrigerator unless they are of the type recommended by the manufacturer. 8. Maintenance - Disconnect the power source (e.g. by turning off the battery main disconnect switch or by removing the corresponding fuse in the fuse box) from your refrigerator before carrying out user maintenance on it.
  • Page 5: Features And Parts

    Features and Parts Freezer shelf Freezer temperature control Control panel Glass shelves Fridge door shelves Crisper drawer Winterization locks CCD-0008594 Rev: Rev: 04.08.24 - 4 -...
  • Page 6: Preparation And Installation

    WARNING Any electrical work required to install this appliance should be carried out by a qualified or competent person. All Furrion products referenced in this manual are to be installed in accordance with local and national codes, including the latest editions of the following standards:...
  • Page 7 Wire Connection Diagram NOTE: Verify wire connections with labels on the wires. ● Voltage drop can be reduced by terminating the -12V (Black) lead directly to the vehicle chassis. ● Connect the supply wire to the appliance pigtail wire and ●...
  • Page 8 To ensure proper function, the refrigerator must be placed on a flat, firm and stable surface resting level on four supports. The surface should support twice the weight of the appliance. 4. Fixing the refrigerator to the cabinetry: The refrigerator can be affixed to the RV cabinetry by installing four #8 or #10 Pan Head type screws (2 1/2" long) where the shank connects into the backer support by 1"...
  • Page 9: Functions And Operation

    Functions and Operation 1. Functions: Press and hold the "POWER" button for 3 seconds to turn the refrigerator on. The display will illuminate a temperature value 1-5. 1.1 Temperature setting: "POWER" key "MODE" key Refrigerator: The temperature setting options are 1 to 5, with 5 as the coldest setting. You can toggle through the various temperature settings by pressing briefly the "MODE"...
  • Page 10: Operational Instructions

    Operational Instructions 1. Operational Precautions: ● Do not operate the appliance below the operating temperature range for extended periods of time. This might effect the appliance's performance in the long term. ● Internal temperature could be affected by factors like the location of temperature and frequency of door opening, etc. ●...
  • Page 11: Maintenance And Cleaning

    6. Power Supply Interruption: This refrigerator works on 12V DC power supply (For example, an RV battery). Always estimate the operation time based on your available battery capacity. To conserve limited supply of power: The refrigerator has an off-grid setting 2, which optimizes the energy usage efficiency. Consider using overnight, when usage is low and replenishing power is not available.
  • Page 12: Troubleshooting

    A hard reset includes removing shore power, battery power and solar power. QR-182: https://lci-support-doc.s3.amazonaws.com/qr/ccd-0008369.pdf Scan Video Video link: How to Hard Reset a Furrion Refrigerator QR Code: Error Codes Error Code Display panel lights up Failure description...
  • Page 13 Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) son subsidiarias de propiedad total de Lippert Components, Inc. (Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514 Furrion Innovation Center &...
