19.6 cuft 12V REFRIGERATOR WITH FRENCH GLASS DOORS
MODEL (LIPPERT PN)
FCR20DCAFA-SG (2022120379) FCR20DCAFA-BG (2022120380)
TROUBLESHOOTING AND SERVICE MANUAL

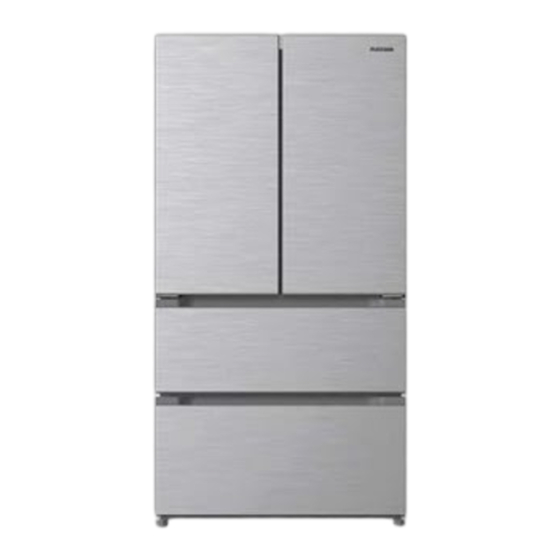

* Picture shown here is for reference only.
This manual contains the product's basic information, safety, maintenance,
replaceable parts, fault diagnosis and basic troubleshooting procedures.
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Furrion FCR20DCAFA-SG
Summary of Contents for Furrion FCR20DCAFA-SG
- Page 1 19.6 cuft 12V REFRIGERATOR WITH FRENCH GLASS DOORS MODEL (LIPPERT PN) FCR20DCAFA-SG (2022120379) FCR20DCAFA-BG (2022120380) TROUBLESHOOTING AND SERVICE MANUAL * Picture shown here is for reference only. This manual contains the product's basic information, safety, maintenance, replaceable parts, fault diagnosis and basic troubleshooting procedures.
-
Page 2: Table Of Contents
Climate Class Introduction This document provides an overview on replaceable parts for Furrion® 19.6 Cu.ft. Refrigerator with French Glass Doors, as well as basic troubleshooting and service information. Please keep this user manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. -
Page 3: Important Safety Instructions
Always wear eye protection when performing service, maintenance or installation procedures. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the task. Important Safety Instructions Precautions/Warnings • This appliance is intended to be used in household and similar applications. •... -
Page 4: Maintenance And Cleaning
Maintenance and cleaning ELECTRIC SHOCK! Always disconnect power before cleaning or maintenance • Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. • Do not use sharp objects to remove frost from the appliance. •... -
Page 5: Replaceable Parts List
Replaceable Parts List Callout Part # Description Model FCR20DCAFA-SG 2022453299 Glass Shelf Assembly FCR20DCAFA-BG FCR20DCAFA-SG 2022453300 Hinge Kit FCR20DCAFA-BG FCR20DCAFA-SG 2022453301 Cooler LED Light FCR20DCAFA-BG FCR20DCAFA-SG 2022453302 Cooler Lamp Assembly FCR20DCAFA-BG FCR20DCAFA-SG 2022453303 Main Control Panel FCR20DCAFA-BG FCR20DCAFA-SG 2022453304 Water Valve Connector Kit... - Page 6 Callout Part # Description Model Condenser Fan Assembly (Including: Condenser Fan, Fan Mounting FCR20DCAFA-SG 2022453309 Bracket and Sealing Sponge Stick on Fan FCR20DCAFA-BG Mounting Bracket) FCR20DCAFA-SG 2022453310 Vegetable Glass Shelf Frame Assembly FCR20DCAFA-BG FCR20DCAFA-SG 2022453311 Vegetable Drawer Assembly FCR20DCAFA-BG FCR20DCAFA-SG...
-
Page 7: Troubleshooting
Troubleshooting Before troubleshooting, disconnect the power supply. IMPORTANT! When the compressor is being turned on, the refrigerator creates some sounds/noises, like gurgling - this is perfectly normal. Repairs to refrigerators/freezers may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user. -
Page 8: Troubleshooting
Troubleshooting Normal Phenomena Cause Check the ice maker switch is turned on; whether the freezer compartment door is closed or ajar; Whether the water valve is opened; whether water supply is obstructed, or Ice maker failing to work normally water pressure is too low; Whether the temperature of freezer compartment is high due to just power connection or frequent use. -
Page 9: Specification
Specification Specifications Total Capacity 19.6cu.ft. Freezer Capacity 7.25cu.ft Refrigerator Capacity 12.31cu.ft. Noise (dB) ≤42dB Door Type French door Handle Recessed handle Control Type LED Display with electronic control No. of Shelves Total 4 drawers, 2 in fridge compartment, 2 in No. - Page 10 Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514 Furrion Innovation Center & Institute of Technology Centre d’innovation et institut de technologie Furrion...
