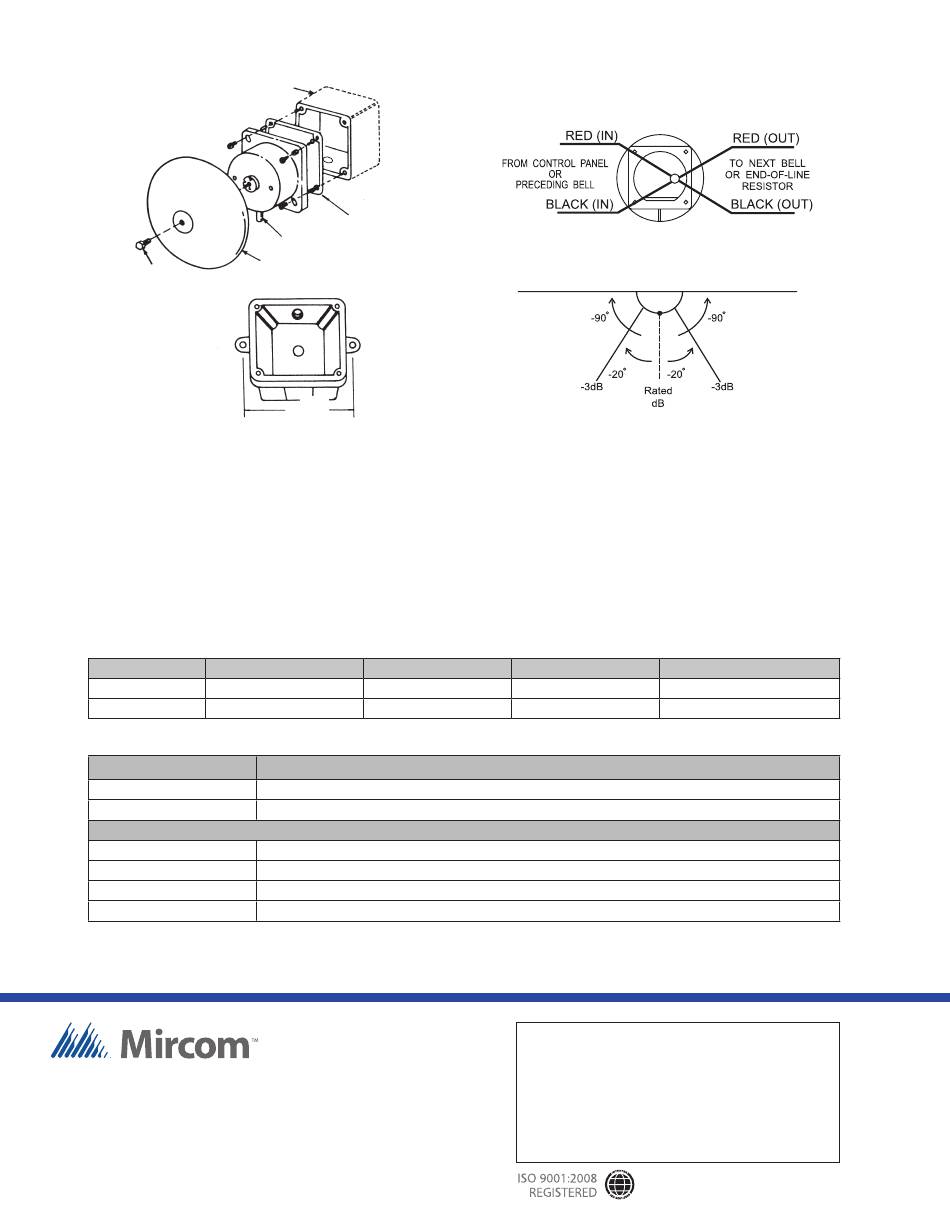

Installation Instructions

4" SQUARE OUTLET BOX
GONG
HEX-BOLT
Installation Instructions:
1. Remove the bell.
2. Wire the bell in the circuit.
3. Mount ball mechanism on 4" square standard outlet box with
the striker facing down.
4. Replace the bell.
5. The bell must be mounted a minimum of 8 ft. above the floor,
or as close to the ceiling as possible.
6. Polarized bell provides red(+) and black(-) lead wires.
When you install the bell, polarity must be observed.
Caution:
When electrical supervision is required, use in and out leads as shown.

Specifications

Model Description
BL-6B 6" Motorized Steel Bell
BL-10B 10" Motorized Steel Bell
Ordering Informtion
Model Description
BL-6B 6" Motorized Steel Bell
BL-10B 10" Motorized Steel Bell

Accessories

BB-206WP Weatherproof Backbox
MP-101 Universal Mounting Plate
M-1995 Yard Hood
SG-210 Grill for 10" Bell Backbox
Canada
25 Interchange Way
Vaughan, Ontario L4K 5W3
Telephone: (905) 660-4655
Fax: (905) 660-4113
Web page: http://www.mircom.com
GASKET FOR
MOUNTING
ON SURFACE OR
STRIKER
WEATHERPROOF
BACKBOX
BB-206WP
WEATHERPROOF
BACKBOX
5"
Voltage
24 VDC
24 VDC
NOT TO BE USED FOR INSTALLATION PURPOSES.
U.S.A.
4575 Witmer Industrial Estates
Niagara Falls, NY 14305
Toll Free: (888) 660-4655
Fax Toll Free: (888) 660-4113
Email: mail@mircom.com
WIRING (REAR VIEW)
D.C. BELLS (OBSERVE POLARITY)
HORIZONTAL AXIS
NO MORE
THAN -6dB
Notes:
1. Observe polarity.
2. Red wires positive (+).
3. Black wires negative (-).
4. For installation in Canada, installation must comply to
Canadian Electrical Code, Part 1, ULC-S524-01, the standard
for the installation of fire alarm system, and only subject to
final acceptance of local AHJ.
5. For indoor use: Motor fire bell only.
6. For outdoor use: Motor fire alarm bell attached to waterproof
box only.
7. Mounting to a 4" octagon box requires MP-101 mounting plate.
Rated Current
20 mA
20 mA
Distributed by:
NO MORE
THAN -6dB
Sound Level at 10 ft. dB
86
90
CAT. 5261
Rev. 3
