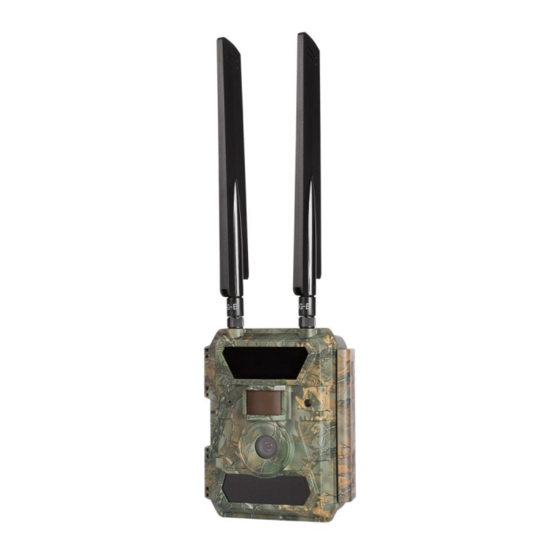

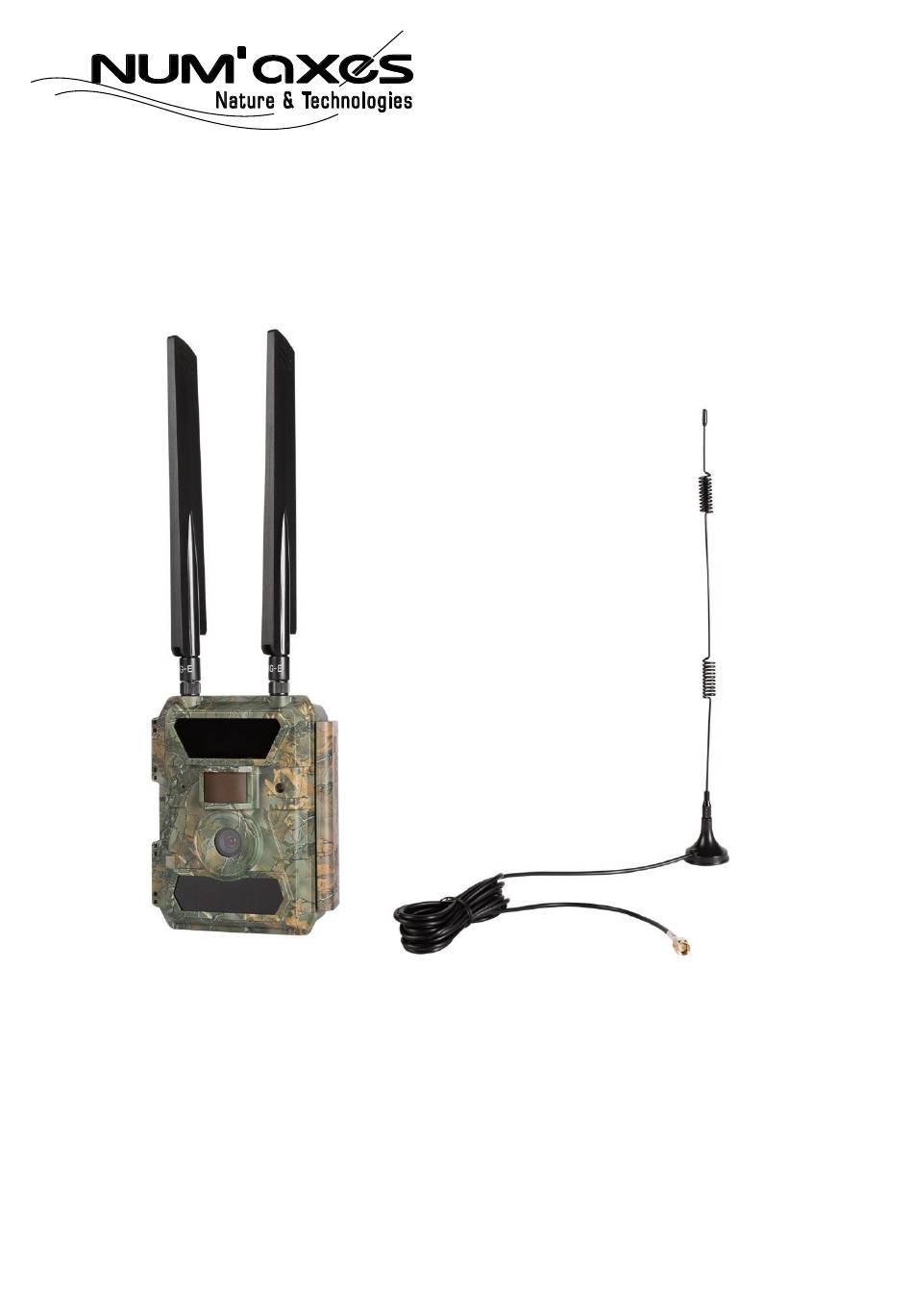

Piège photographique / Trail camera
PIE1037
Guide d'utilisation .................................................................................. 2
User's manual ....................................................................................... 16
PIE1037 - Indice A – Juin 2019
1/28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIE1037 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Num'axes PIE1037

  • Page 1 Piège photographique / Trail camera PIE1037 Guide d’utilisation .................. 2 User’s manual ..................16 PIE1037 - Indice A – Juin 2019 1/28...
  • Page 2 IEC 62321-6 : 2015 | IEC 62321-7-1 : 2015 | IEC 62321-7-2 : 2017 | IEC 62321-8 : 2017 Olivet (FRANCE), 16 mai 2019 / 16 May 2019 Pascal GOUACHE Président / C.E.O. PIE1037 - Indice A – Juin 2019 2/28...
  • Page 3: Contenu Du Produit

    Capteur de luminosité (jour/nuit) Objectif 30 LED infrarouges (peuvent être désactivées) Capteur infrarouge passif (PIR) Figure 2 Port pour alimentation externe (12 V) Cache port pour Port USB alimentation externe Emplacement carte SD PIE1037 - Indice A – Juin 2019 3/28...
  • Page 4: Adaptateur Secteur

    Avant d’insérer ou de retirer la carte SD, l’appareil doit être mis à l’arrêt (sélecteur en position OFF). Si vous ne le faites pas, cela peut causer la perte ou la détérioration des fichiers déjà enregistrés sur la carte mémoire. Quand la carte SD est pleine, l’indication « Mémoire pleine » apparaît sur l’écran. PIE1037 - Indice A – Juin 2019 4/28...
  • Page 5 NOTA : l’appareil peut envoyer les photos à 4 téléphones mobiles et à 4 adresses e-mail. Il est paramétré pour envoyer les photos vers les téléphones mobiles par MMS et les photos/vidéos vers les adresses e-mail par SMTP (data). Si vous préférez un mode d’envoi plus personnalisé, merci de configurer les paramètres en conséquence. PIE1037 - Indice A – Juin 2019 5/28...
  • Page 6: Arrêt Automatique

    Photo / Vidéo / Photo + Vidéo  Photo : l’appareil va prendre uniquement des photos en fonction des réglages des paramètres « Photos en rafale » et « Résolution photo ». PIE1037 - Indice A – Juin 2019 6/28...
  • Page 7 Exemple : si l’intervalle PIR est réglé sur 00:01:00, l’appareil va attendre 1 minute entre chaque enregistrement de photo/vidéo même si un mouvement est détecté. Intervalle PIR (HH:MM:SS) configurable de 00:00:05 à 23:59:59. PIE1037 - Indice A – Juin 2019 7/28...
  • Page 8 Si les informations MMS saisies sont erronées, les téléphones mobiles et les boîtes e-mail ne pourront pas recevoir les photos en provenance de l’appareil. PIE1037 - Indice A – Juin 2019 8/28...
  • Page 9 (1920x1440 pixels) ou taille originale (5 MP, 8 MP ou 12 MP en fonction de la résolution photo sélectionnée). Envoi photos multiples Première photo Deuxième photo Troisième photo Quatrième photo Cinquième photo PIE1037 - Indice A – Juin 2019 9/28...
  • Page 10 PIN avant de le saisir à nouveau.  Insérez la carte SIM dans votre téléphone pour la débloquer en utilisant le code PUK après trois échecs d’activation successifs. PIE1037 - Indice A – Juin 2019 10/28...
  • Page 11 Alcalines / Ni-MH (Nickel Métal Hydrure) L’appareil fonctionnera mieux si vous indiquez le type de piles utilisé dans la caméra. Vous pouvez vous procurer des piles Ni-MH (rechargeables) ou alcalines à tout moment sur le site www.numaxes.com. PIE1037 - Indice A – Juin 2019 11/28...
  • Page 12: Caractéristiques Techniques

    Programmable de 05 à 59 secondes Vitesse de déclenchement Entre 0,35 et 0,4 seconde Intervalle de déclenchement Entre 4 et 7 secondes N° de l’appareil (N° d’identification de l’appareil) Programmable (12 chiffres/lettres) PIE1037 - Indice A – Juin 2019 12/28...
  • Page 13 Poids 448 g Android / iOS – Nom de l’application : PIE1037 + PIE1023 Application Le piège photographique PIE1037 peut être paramétré et déclenché à distance par l’intermédiaire d’une application mobile gratuite. En cas de dysfonctionnement 12.1. Il n’y a pas de sujet sur les photos ...
  • Page 14: Conditions De Garantie
