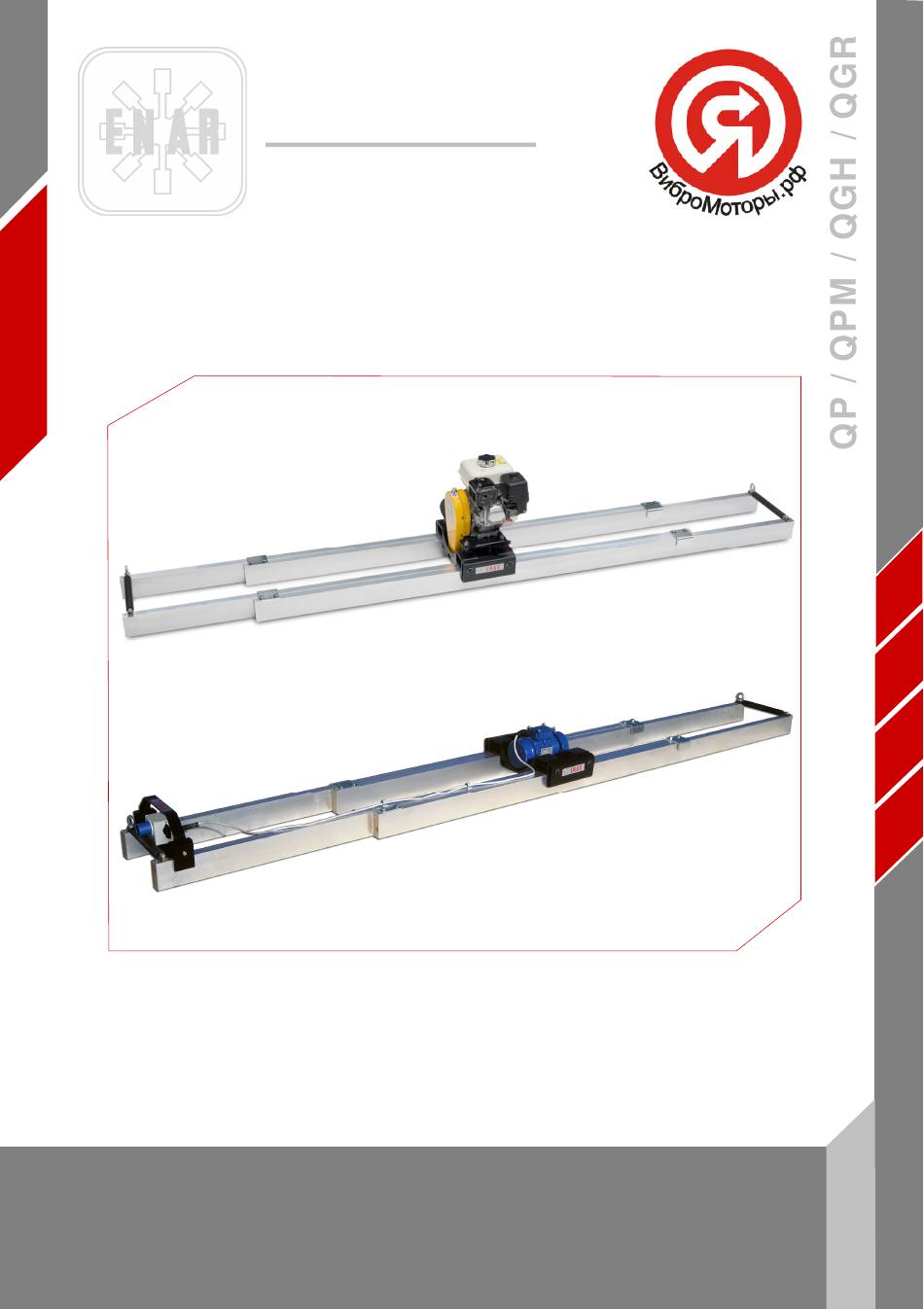

- Page 1 ENARCO, S.A. REGLAS VIBRANTES FIJAS Y EXTENSIBLES FIXED AND EXTENSIBLE VIBRATING SCREEDS REGLES VIBRANTES FIXES ET EXTENSIBLES AUSDEHNBARE DOPPEL ABZIEHBOHLEN Manual de instrucciones Instruction manual Manuel d'instructions Gebrauchsanweisungen MX-460-1406...
-
Page 2: Table Of Contents
OPERATION AND MAINTENANCE 4.1 GETTING STARTED 4.2 EXTENSION CABLES 4.3 PERIODIC MAINTENANCE 4.4 STORAGE 4.5 TRANSPORTATION ELECTRIC SCHEME (QP,QPM) LOCATING MALFUNCTIONS INSTRUCTIONS TO ORDER SPARE PARTS 7.1 INSTRUCTIONS TO ORDER SPARE 7.2 INSTRUCTIONS TO REQUEST WARRANTIES RECOMENDATIONS OF USE EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS 8-800-555-58-36 www.VibroMotors.ru... -
Page 3: Introduction
INTRODUCTION Thank you for trusting the ENAR brand. For the maximum performance of the equipment, we recommend to read carefully the safety recommendations, maintenance, and usage listed in this manual. Defective parts should be replaced immediately to avoid major problems. -
Page 4: Characteristics

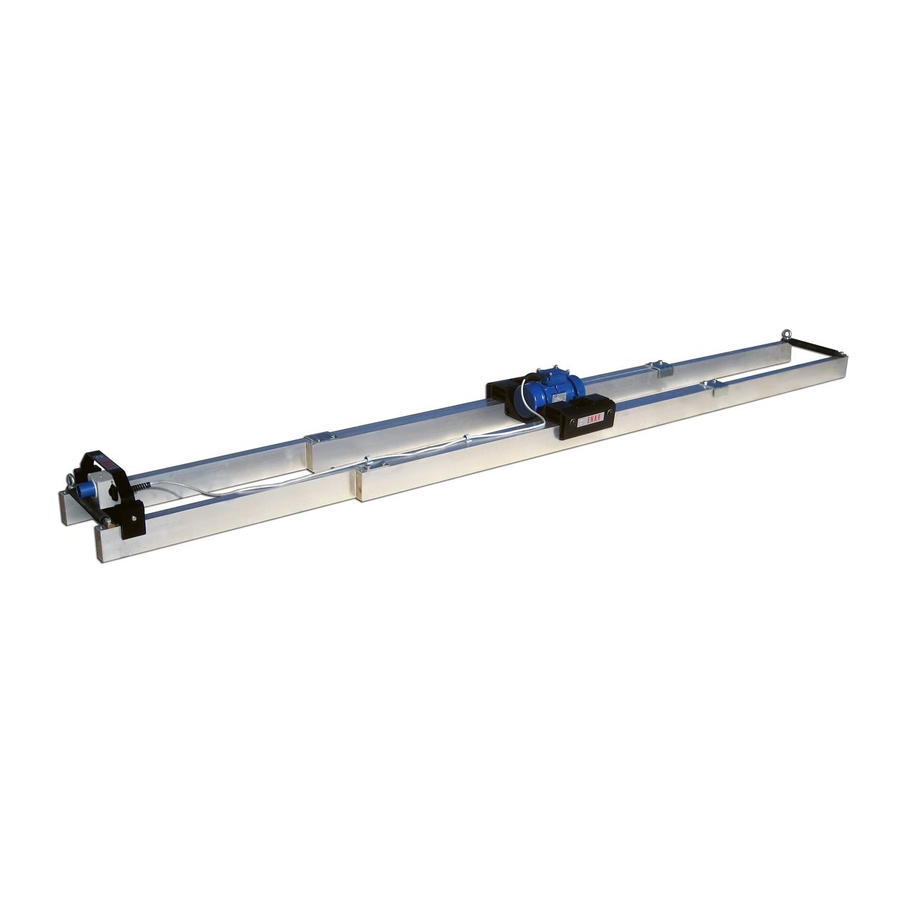

CHARACTERISTICS The vibrating screeds are used for the vibrating and the finishing of the floors in the construction industry and for the finishing of parts in the pre-cas industry. The double beam screed depth-effect is from 15 to 25 cm. For very thick concrete layers, we recommend to use pokers at the same time in order to obtain the right compaction and consistence of the concrete mass as well as its finishing. - Page 5 Pulling handle Pulling handle External vibrator Characteristics plate ON-OFF switch Transport handle Beam Clamp Cable fastener Switch support clamp Current plug Pulling handle Engine Pulling handle Transport handle Transport handle Beam Clamp Fuel tank Air filter Stop button Fuel tap Oil filler cap Accelerator Starter...
-
Page 6: Usage Conditions
3 USAGE CONDITIONS WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. WORKING AREA KEEP your work area clean and well lit. Cluttered benches and dark areas invite accidents. DO NOT OPERATE power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. - Page 7 CHECK for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool serviced before using. USE only accessories that are recommended by the manufacturer for your model. SERVICE Tool service MUST BE PERFORMED only by qualified repair personnel.
-
Page 8: Operation And Maintenance
OPERATION AND MAINTENANCE 4.1 GETTING STARTED 1.- Before working, make sure that all the security devices are operating under normal conditions. 2.- WITH PETROL ENGINE: - Read the motor manufacturer’s manual. - Do not work in rooms with scarce ventilation. - Make sure there is no flammable substance near to the exhaust. -
Page 9: Periodic Maintenance
2.- The permitted heating of the cable according to VDE standard (minimum transversal section table required). I.e.: For 10 A, according to table for 15 A or less, the section is of 1 mm Therefore, the section chosen is equal to 4 mm , always chose the highest transversal section of the two verifications. -
Page 10: Storage
3.-EARTH CABLE (green-yellow) 1,5mm2 4.-EARTH CONNECTION POINT 5.-SWITCH BOX 6.-SWITCH 7.-CABLE FROM SWITCH TO MOTOR SECTION 1,5 mm2 8.-TERMINAL BOX 9.-CONDENSATOR 15F/450V 10.- MOTOR CABLE SCHEME FOR THREE PHASES MOTOR CONNECTED AT 380 V (QP) EXTENSIBLE DOUBLE BEAM VIBRATING SCREEDS 8-800-555-58-36 www.VibroMotors.ru info@vibromail.ru... -
Page 11: Locating Malfunctions
1- PLUG 3Ph+Earth 2- CABLE TO SWITCH SECTION 2,5 mm2 3- CABLE TO SWITCH SECTION 2,5 mm2 4- CABLE TO SWITCH SECTION 2,5 mm2 5- EARTH CABLE (green-yellow) 6- EARTH CONNECTION POINT 7- SWITCH 8- CABLE FROM SWITCH TO MOTOR SECTION 2,5 mm2 9- CABLE DE INTER. -
Page 12: Recomendations Of Use
RECOMENDATIONS OF USE The screeds are used to the vibration and the finishing of the floors. You can work directly on the surface with guides. Before starting the guides must be adapted. Then the steel structure is posed on the concrete mass. The screed is laid over the guides and the work can start. (two operators are demanded).
