Santec SCC-221KDNM Quick Installation Manual

Ir

Advertisement

Lieferumfang:
1x Kamera SCC-221KDNM
1x Sechskantschlüssel
1x Bohrlochschablone
1x Kurzanleitung und Sicherheitshinweise

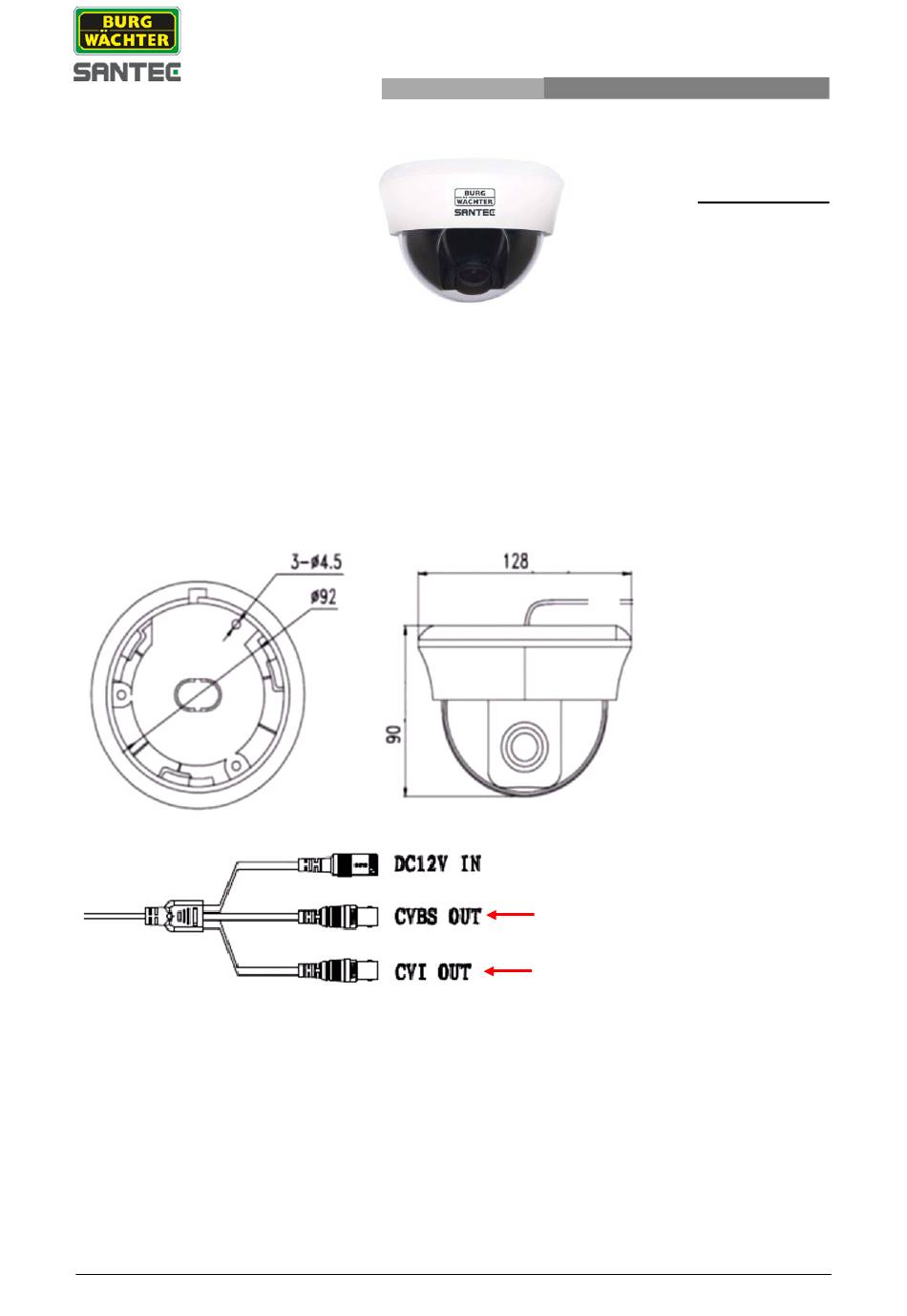

Technische Zeichnung / Technical drawing:
Alle Angaben in mm.
Zeichnung nicht maßstabsgerecht.
Irrtum und technische Änderungen
vorbehalten.
Bitte beachten:
Bitte beachten Sie auch das Beiblatt mit
Sicherheitshinweisen und Vorsichts-
maßnahmen.
KURZANLEITUNG / QUICK INSTALLATION

Items included in the delivery:

1x Camera SCC-221KDNM
1x Hexagonal wrench
1x Mounting drawing paper
1x Quick installation guide and security note
Schwarz:
PAL FBAS Signal
Gelb:
CVI Signal
All dimensions in mm.
Drawings not true to scale.
Subject to technical changes.
Errors excepted.
Please note:
Please also read the supplemental sheet
on safety precautions and safety
instructions.
1
SCC-221KDNM
GUIDEe
IR-Kuppelkamera
IR dome camera
Modell / Model:
SCC-221KDNM
Version 1.1sfi/0316/dt-engl/A5
