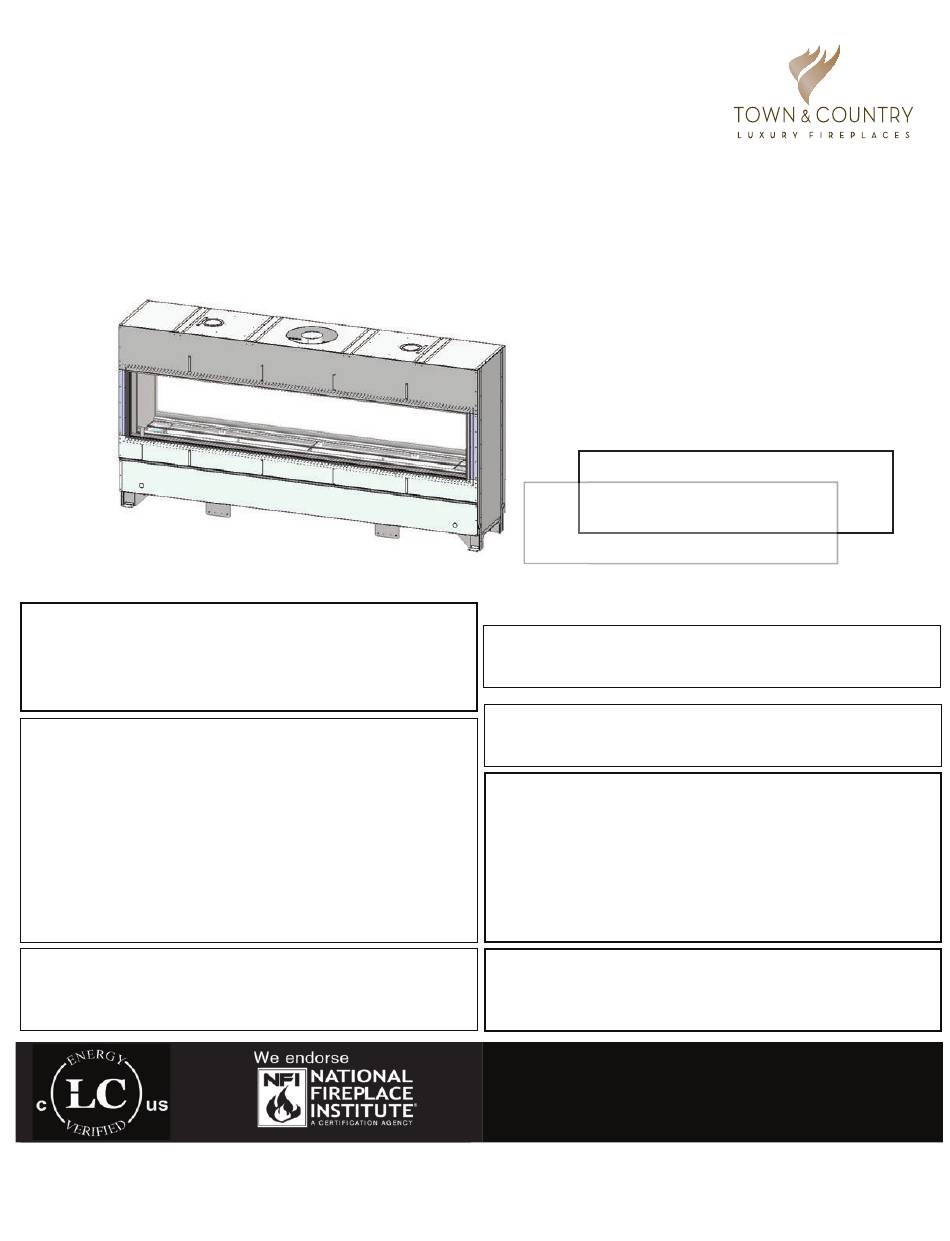

Town & Country Fireplaces Architectural Series Installation Manual

See-thru configuration
Hide thumbs Also See for Architectural Series:

Advertisement

FOR YOUR SAFETY
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier call
the fire department.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
160919-48
INSTALLATION MANUAL
The Architectural Series
BY TOWN & COUNTRY
CONFIGURATION
See-Thru
This is a decorative product and is not intended
to be used as a heating appliance.
This appliance is suitable for installation in a
bedroom or bed sitting room.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases,
unless a certified kit is used.
WARNING: If the information in these instructions is
not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Architectural Series
100000454-50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Architectural Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Town & Country Fireplaces Architectural Series

  • Page 1 INSTALLATION MANUAL The Architectural Series BY TOWN & COUNTRY CONFIGURATION See-Thru FOR YOUR SAFETY This is a decorative product and is not intended Installation and service must be performed by to be used as a heating appliance. a qualified installer, service agency or the gas supplier.
  • Page 2: Table Of Contents

    Control Panel Installation ................29 LED Strip Replacement ................34 Removing an LED section ..............34 Gas Pressure and Orifice Figures ..............36 Lighting Instructions ..................37 Maintenance ....................38 Replaceable Parts ..................39 Rating labels ....................40 Architectural Series 100000454 160919-48...
  • Page 3: Caution

    This appliance must not be connected to a chimney flue serving a separate solid fuel burning appliance. 100000454 160919-48 Architectural Series...
  • Page 4: Important Note For The Commonwealth Of Massachusetts

    A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation. Architectural Series 100000454...
  • Page 5: Congratulations On Your Town & Country Purchase

    Congratulations on your Town & Country purchase Your Architectural Series Zero Clearance linear appliance has been professionally installed by: Dealer name: _____________________________________________ Phone Number: ___________________________________________ If you discover any problems with your linear appliance, contact your dealer immediately to have the unit repaired.
  • Page 6: Vent Terminal Minimum Clearances

    ** only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the floor* * as specified in CGA B149 Installation Codes, Note: local Codes or Regulation may require different clearances * for U.S.A. Installations follow the current National Fuel Gas Code, ANSI Z223.1 Architectural Series 100000454 160919-48...
  • Page 7: Minimum Clearances To Combustible Material

    Venting for this unit is also zero clearance. Combustible material is permitted to come into direct con- tact with venting material. Btu Values and Weights See Through BTR/HR 48000 64000 80000 96000 112000 128000 16” Glass Weight lbs 24” Glass Weight lbs 32” Glass Weight lbs 100000454 160919-48 Architectural Series...
  • Page 8: Appliance Dimensions

    1 1/2” 18” 18” 18” 50 5/8” 7 foot 16 5/8” 6 1/4” 45 1/4” 24” 18” 24” 17 7/8” 8 foot 18 1/2” 5/8” Figure 2: See Through unit with 16 inch glass & top intake. Architectural Series 100000454 160919-48...
  • Page 9 1 1/2” 18” 18” 18” 7 foot 58 5/8” 24 5/8” 24” 24” 18” 6 1/4” 53 1/4” 8 foot 17 7/8” 18 1/2” 5/8” Figure 3: See Through unit with 24 inch glass & top intake. 100000454 160919-48 Architectural Series...
  • Page 10: Locating The Unit

    Horizontal Termination Power Vent Vertical Venting & Termination Power Vent Site Fabricated Elevated Platform Air Intake Figure 4: Locating the 8 ft Linear appliance.ai Architectural Series 100000454 160919-48...
  • Page 11: Framing And Finishing

    Facing material may be screwed directly into the body of the appliance with the exeption of areas indicated. 1in. below rivets 3in. above trim Do not use screws in these areas 3in. below trim 1in. above rivets Figure 6: Facing attachment area. 100000454 160919-48 Architectural Series...
  • Page 12: Framing

    On the top of the unit, a pony wall can be built to the ceiling. This pony wall will also accommodate the exhaust venting material. Both supporting structure and pony wall must be tied into wall framing. The building of the supporting structure and the pony wall must be built to local building codes. Architectural Series 100000454 160919-48...
  • Page 13: Facing Material

    1/2” Drywall or Facing Material 2X6” Studs Figure 8: Leading edge of drywall. 2X4” Studs 1/2” Drywall or Facing Material From Air Intake Site fabricated platform From Air Intake Figure 9: Left side framing and facing view. 100000454 160919-48 Architectural Series...
  • Page 14: Venting Configuration

    The plenum may be transitioned to a single intake as long as the 150 square inch cross-section is maintained. For a single air intake, the rule of a maximum of 150 feet plus 6 elbows still applies. Architectural Series 100000454 160919-48...
  • Page 15: Venting Specifications

    Each intake line can be up to a maximum of 150 ft plus 6 elbows. • Motorized dampers are optional. • Exhaust venting uses 12” standard single wall furnace grade venting material. Maximum length is 150 ft plus 6 elbows. 100000454 160919-48 Architectural Series...
  • Page 16: Air Intake

    1 1/8” 3 1/2” 8 3/8” 9 3/8” 9 3/8” 1” 1 7/8” 1 7/8” 10 3/4” 6 3/4” 7” 10 3/4” 7” 3 1/2” 1 7/8” 1 7/8” SIDE REAR Figure 12: Intake vent dimensions.ai Architectural Series 100000454 160919-48...
  • Page 17: Optional Motorized Damper

    This unit is mounted near the air intake vent. This unit is wired directly to the fire- place body (Figure 41 on page 27). One motorized damper is required for each of the 3 air intake venting lines. 11” 4 5/8” 8” 5 1/4” 1/2” 7” Figure 14: Motorized damper dimensions. 100000454 160919-48 Architectural Series...
  • Page 18: Power Vent

    12” Min. 12” Min. Part of upper 1/8” gap to accomodate power vent vertical riser edge Site Fabricated Riser Slot for fastener Max 18 1/2” Max 18 1/2” Power vent base Figure 15: Power vent installation. Architectural Series 100000454 160919-48...
  • Page 19: Power Vent Hood

    Note: Exhaust vents on all four sides of the power vent. Exhaust ports must face toward an open direction and not at another power vent or a wall within 4’ . Figure 17: Power Vent clearances. 100000454 160919-48 Architectural Series...
  • Page 20: Baffle Installation And Adjustment

    (Figure 21) and adjusted. The baffle cover is secured by six bolts (Figure 20). Alway begin and end installation or removal with the center bolts. Figure 20: Securing the baffle cover. Figure 21: Adjustment accessible through the baffle cover. Architectural Series 100000454 160919-48...
  • Page 21: Black Glass Option Installation

    (Figure 24). 3. Repeat procedure for opposite side black glass plate. 4. Once all black glass plate are installed, fill the burner tray with crushed glass media. Figure 24: Insert bottom end of side black glass plate. 100000454 160919-48 Architectural Series...
  • Page 22: Crushed Glass Media Installation

    Spread all of the crushed glass media in the burner tray (Figure 26). Cover all of the black mesh burner tray but do not cover the pilot assembly or the burner ports (Figure 27). Figure 27: Exposed holes beneath the igniter. Architectural Series 100000454 160919-48...
  • Page 23: Gas Connection

    All units also ship with a gas valve shut-off (Figure 29). This shut-off handle is located on the right side of the glass door opening between the inner and outer glass plates. Push this handle down before installing the inner and outer glass plates. 100000454 160919-48 Architectural Series...
  • Page 24: Inside Glass Plate Installation

    Figure 30: Top edge of sheet goes in first. Figure 31: Even gap on both sides of inside sheet. The Side Securing Panels (page 25) must now be installed before the Outside Glass plates are installed (page 26). Architectural Series 100000454 160919-48...
  • Page 25: Side Securing Panel Installation

    This will keep any vibration to a minimum Figure 35: Installing right side securing panel. Figure 34: Position securing panel up against the inside glass plate. 100000454 160919-48 Architectural Series...
  • Page 26: Outside Glass Plate Installation

    1/8” gap approx. Figure 36: Inserting outside glass sheet. Figure 37: Gap between edge of glass sheet and side frame. There must be 1/8” gap at this end of the pane. Figure 38: Gap on right side. Architectural Series 100000454 160919-48...
  • Page 27: Electrical Connection

    (Figure 41). Each motorized damper has 2 wires for a total of 6 wires. To Power Vent To Unit Main Power To Optional Motorized Dampers Figure 40: Inside left side of electrical connection box. Figure 41: Motorized damper electrical connections. 100000454 160919-48 Architectural Series...
  • Page 28: Electrical Diagram

    Electrical Diagram To Power Vent Control panel Main Power In Figure 42: Wiring diagram. Architectural Series 100000454 160919-48...
  • Page 29: Control Panel Installation

    1. Mark the inside of the template with a pencil (Figure 43). 2. Cut out the touch pad frame opening along the pencil mark (Figure 45). Figure 46: Opening ready for panel frame. Figure 45: Cutting out the panel opening. 100000454 160919-48 Architectural Series...
  • Page 30 5. Orient the touch pad frame as shown in Figure 49 and place the frame into the opening and firmly seat. NOTE: The BlueTooth PIN code is located on its board. Take note of the code before mounting the touch pad in its frame. BlueTooth PIN code Figure 49: Proper orientation of touch pad frame. Architectural Series 100000454 160919-48...
  • Page 31 2. Plug the black connector into the touch pad (Figure 52). The connector should be on the left hand side of the frame as it is inserted into the frame. NOTE: Turn the touch pad ON before installing it into the frame. Figure 52: Connecting the touch pad. 100000454 160919-48 Architectural Series...
  • Page 32 3. Place the touch pad into the frame. There are 4 touch pad holding tabs which will hold the touch pad in place (Figure 53). Room overtemperature System disable sensor switch Figure 54: Touch pad in frame. Architectural Series 100000454 160919-48...
  • Page 33 There is also a system disable switch (Figure 54) which turn off the appliance until such time that it is turned back on. Both the room over-temperature sensor and the system disable switch are accessible with the face plate in place. 100000454 160919-48 Architectural Series...
  • Page 34: Led Strip Replacement

    3. Remove the glass media and the relavent glass tray. 4. Disconnect the main electrical connection located on the left hand side of the fire feature by lifting the connector up as shown in Figure 59. Architectural Series 100000454 160919-48...
  • Page 35 8. Reconnect the individual LED sections using a bridge connector as shown in Figure 59. 9. Reconnect the main electrical connector as shown in Figure 58. 10. Return the glass tray(s), glass media and glass panels to their original positions. 100000454 160919-48 Architectural Series...
  • Page 36: Gas Pressure And Orifice Figures

    3.5” IN/WC (0.87 kPa) Liquid Propane Gas Gas pressure requirements Linear Appliance Input Pressure Liquid Propane Gas Output Minimum 12.5” IN/WC (3.11 kPa) Maximum 13.9” IN/WC (3.45 kPa) 80,000 BTU/hr (23.44 kW) Manifold Pressure Maximum 11.0” IN/WC (2.73 kPa) Architectural Series 100000454 160919-48...
  • Page 37: Lighting Instructions

    Serveiller les enfants. Garder les vêntements, le meubles, l’essence ou autres liquides produisant des vapeurs inflammables loin de l’appareil.S’assurer que le brûleur et le compartiment des commandes sont propres. Voir les instructions d’installation et d’utilisation qui accompangnent l’appareil. 100000454 160919-48 Architectural Series...
  • Page 38: Maintenance

    Periodically: a) Viewing glass may be cleaned as necessary with fireplace glass cleaner. CAUTION: Do not use abrasive cleaners on glass or any other part of the fire feature. Do not clean glass when hot. Architectural Series 100000454 160919-48...
  • Page 39: Replaceable Parts

    80001338 ..........Switch Vacuum, .6” WC, Pellet / Architectural, Replacement 80002328 ..............Control Bezel, Architectural, Gas, Replacement 80002333 ..........Electronic Control, Architectural Series, Gas, Replacement 80002335 ....Burner Media, Non Reflective Glass, Ice, 4LB, Architectural, Gas, Replacement 80002352 ................Tablet, Architectural, Gas, Replacement 80002367 ......
  • Page 40: Rating Labels

    Rating labels The rating label for this appliance is located on the same end of the unit which has the gas connection. Architectural Series 100000454 160919-48...
  • Page 41 Voir la notice de l’utilisateur qui accompgne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz. 101218 568000065 3FT Architectural Series 100000454 160919-48 Architectural Series...
  • Page 42 Voir la notice de l’utilisateur qui accompgne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz. 101218 568000066 4FT Architectural Series Architectural Series 100000454 160919-48...
  • Page 43 Voir la notice de l’utilisateur qui accompgne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz. 101218 568000067 5FT Architectural Series 100000454 160919-48 Architectural Series...
  • Page 44 Voir la notice de l’utilisateur qui accompgne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz. 101218 568000068 6FT Architectural Series Architectural Series 100000454 160919-48...
  • Page 45 Voir la notice de l’utilisateur qui accompgne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz. 101218 568000069 7FT Architectural Series 100000454 160919-48 Architectural Series...
  • Page 46 Voir la notice de l’utilisateur qui accompgne l’appareil. Pour de l’aide ou des renseignements supplémentaires, consultez un installateur, un technicien agréé ou le fournisseur de gaz. 101218 568000070 8FT Architectural Series Architectural Series 100000454 160919-48...
  • Page 47 100000454 160919-48 Architectural Series...
  • Page 48 © 2019 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, contact your retailer. Web site: www.townandcountryfireplaces.com 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
