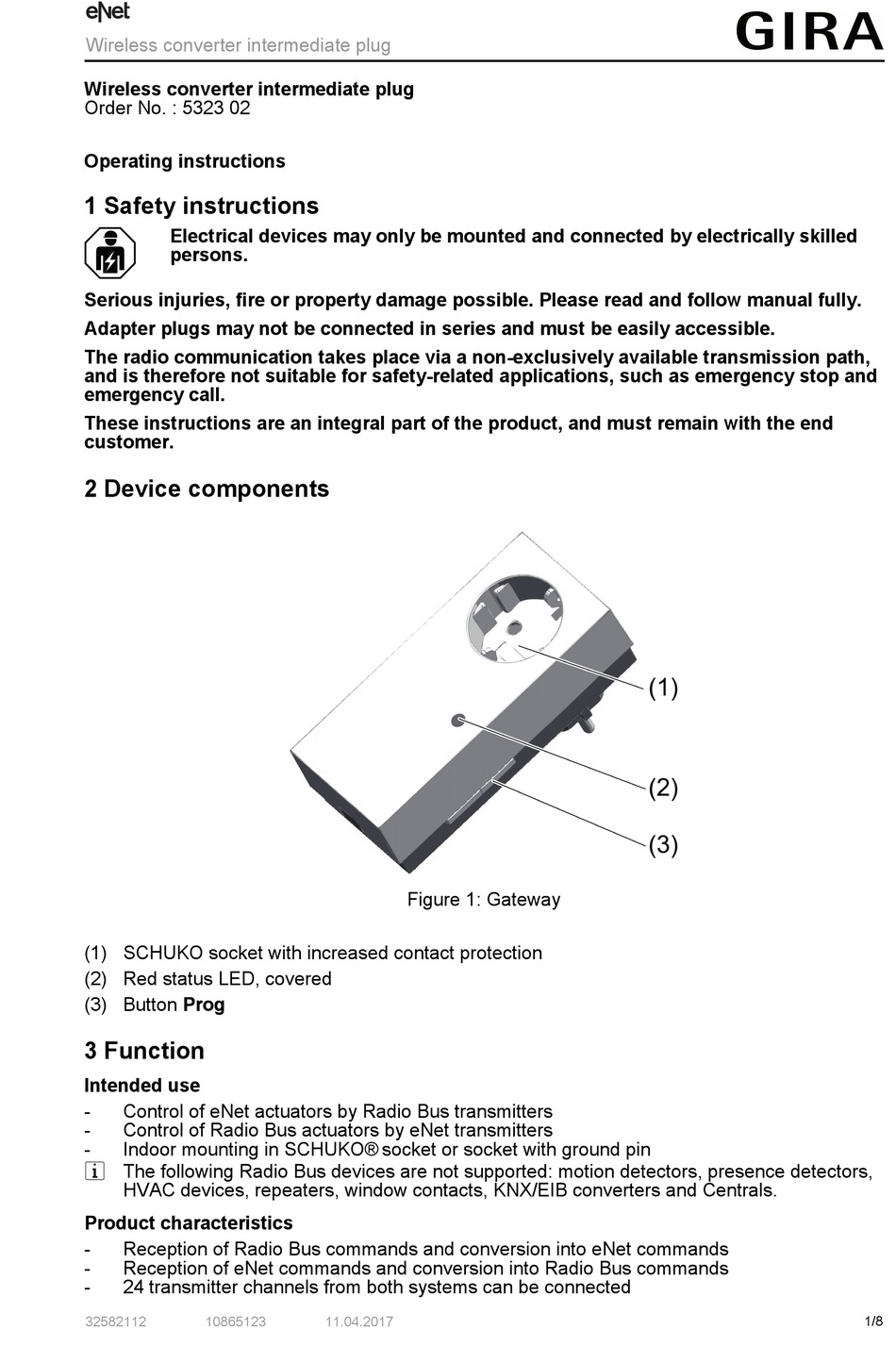

Gira eNet 5323 02 Operating Instructions Manual

Wireless converter intermediate plug
Wireless converter intermediate plug
Order No. : 5323 02
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Adapter plugs may not be connected in series and must be easily accessible.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) SCHUKO socket with increased contact protection
(2) Red status LED, covered
(3) Button Prog
3 Function
Intended use
- Control of eNet actuators by Radio Bus transmitters
- Control of Radio Bus actuators by eNet transmitters
- Indoor mounting in SCHUKO® socket or socket with ground pin
i The following Radio Bus devices are not supported: motion detectors, presence detectors,
HVAC devices, repeaters, window contacts, KNX/EIB converters and Centrals.
Product characteristics
- Reception of Radio Bus commands and conversion into eNet commands
- Reception of eNet commands and conversion into Radio Bus commands
- 24 transmitter channels from both systems can be connected
32582112 10865123
Figure 1: Gateway
11.04.2017 1/8
