Gira KNX Operating Instructions

KNX
Push-button bus coupler
1-gang water-protected surface-mounted KNX push-button bus coupler with single-point
operation
Order No. : 5151 30
1-gang water-protected surface-mounted KNX push-button bus coupler with two-point
operation
Order No. : 5152 30
2-gang water-protected surface-mounted KNX push-button bus coupler with single-point
operation
Order No. : 5161 30
2-gang water-protected surface-mounted KNX push-button bus coupler with two-point
operation
Order No. : 5162 30
Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
These instructions are an integral part of the product, and must remain with the end
customer.

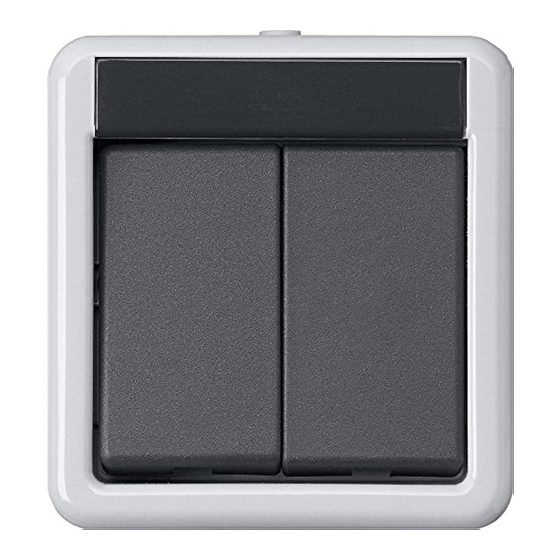

2 Device components
(1) Push-button BA
(2) Rocker switch
(3) Rocker
(4) Programming button and LED
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
32583502 10860486
Figure 1
22.09.2014 1/3
