eNet

Installation adapter Mini housing

Order No. : 5429 00

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Danger of electric shock. Only use the housing for eNet devices.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

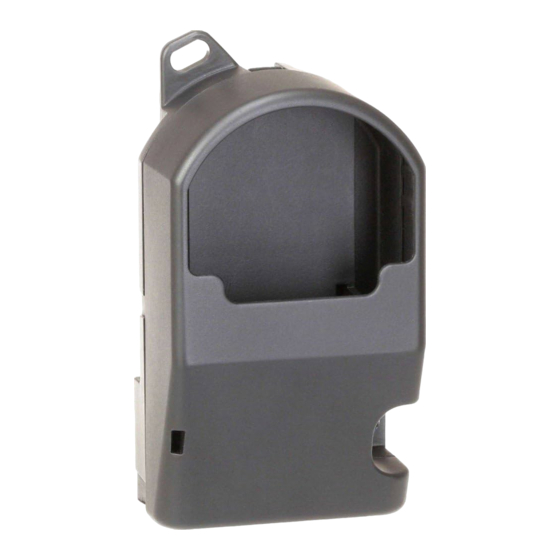

(1) Housing lid

(2) eNet mini device

(3) Adapter for eNet universal transmitter and energy sensor

(4) Housing base

(5) Terminal for looping the protective conductor

(6) Strain relief

3 Function

Intended use

Panel-mounted housing for eNet mini actuators and sensors

Installation in false ceilings and surface mounting

Product characteristics

Fastening possible on DIN rail according to DIN EN 60715

32586002

10499296

Figure 1: Components, panel-mounted housing

20.01.2014

1/3

Page 1: 1 Safety Instructions
1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Danger of electric shock. Only use the housing for eNet devices. These instructions are an integral part of the product, and must remain with the end customer.
Page 2 Engage the adapter (3) on the eNet universal transmitter or energy sensor. Insert the eNet device into the housing base (4) in such a way that the device can be operated through the housing lid.
Page 3: Technical Data
The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error description to your responsible salesperson (specialist trade/installation company/electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
