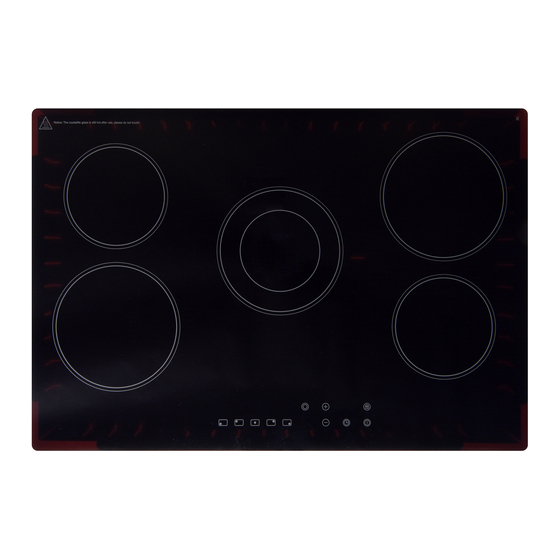

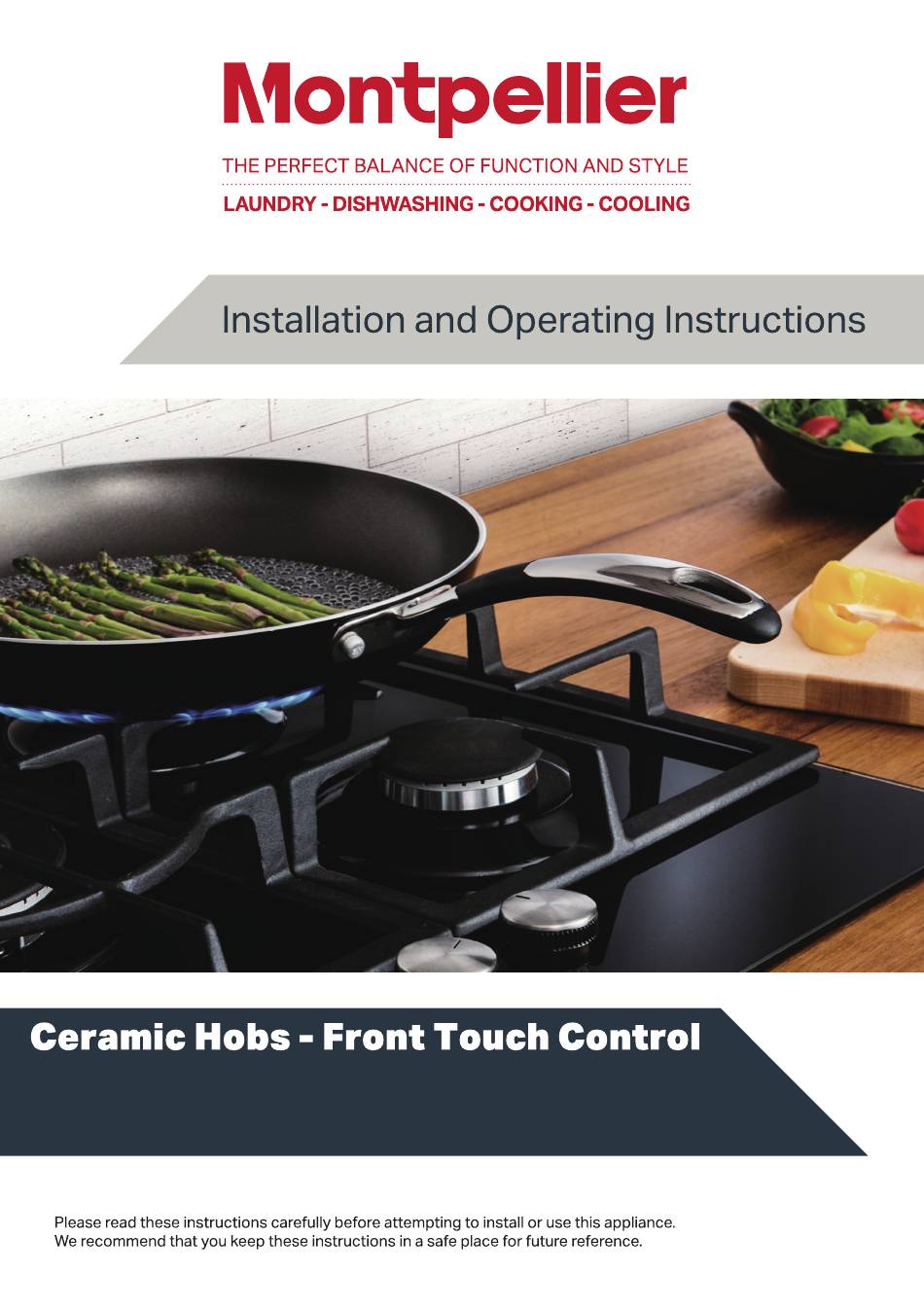

- Page 1 CT750 & CT905 70/90cm - 99min Timer...
- Page 3 1. Please check the built-in ceramic hob's integrity after opening the package. If there are any problems please refer to the supplier. 2. Do not throw the package materials (plastic bag, foam, nails, package etc) in a place where children can easily access. Please dispose of packaging in an environmentally friendly manner. 3.
- Page 4 Heating area Heating area Heating area (Φ180mm) Heating area (Φ180mm) (Φ120mm) (Φ120mm) Heating area Heating area Heating area Heating area (Φ180mm) (Φ180mm) (Φ145mm) (Φ145mm) Heating area Heating area Heating area (Φ145mm) Heating area (Φ145mm) (Φ180mm) (Φ180mm) CT750 CT905...
-
Page 5: Safety Cut-Off
Switching off the ceramic hob 1. Press the ON/OFF button, the hob will switch off. It is possible to turn the hob off at any time by pressing the ON/OFF button. 2. Press the up or down buttons to 0, then hob will switch off. After a zone is switched off, the corresponding heat level display will show a flashing letter “H”... -
Page 6: Technical Data
Technical Data Power(W) Buit-in Hole Size Model Power Supply Size (mm) (mm) (145mm) (180mm) (180mm/120mm) 750X510X77 735X490 1200W 1800W 1700W/700W CT750 AC220-240V 50Hz 1200W 1800W 1700W/700W 860X520X77 830X490 CT905 Good (recessed base) (convex base) (undersize) (oversize) (moisture on hotplate) (no utensil) -
Page 7: Connection Diagram
Close the cable clamp after making the electrical connection. Close the terminal board cover by twisting it down. Heat outlet 50mm MIN. 15mm MIN. Ventilation slot ≥ mm:30 Wood block Recommended installation CT750 CT905 Rear wall screw 1-worktop bracket 2-screw 3-bracket 4-hob... - Page 8 Screw Screw Fixing bracket Worktop Scraper for cleaning the hob Disassembly bottom base 4 bigger screws need to be removed first before bottom base disassembly. (Bottom base removal need to be done by professional person. Normal user is not allowed to disassembly bottom base) Screws need to removed...
- Page 9 For more detailed information about treatment, recovery and recycling of this product, please contact your local local council, household waste disposal service or the shop where you purchased the product. Value Symbol Unit CT750 CT905 Model identification Type of hob Built-in hob...
- Page 10 01759 487839 Repair costs incurred that have not been authorised by Montpellier and/or carried out by a non-approved Montpellier engineer. 01759 487839...
